The Cummins KTA19-G8 diesel generator delivers 600kVA (480kW) of prime power (750kVA standby) in a rugged V8 configuration
Brand:
Chongqing CumminsItem NO.:
ZC660Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
5400600kVA Cummins KTA19-G8 Diesel Generator
The Cummins KTA19-G8 diesel generator is a high-performance power solution delivering 600kVA (480kW) prime power and 660kVA standby capacity.
Generator Set Specification
| Prime Power | 600kva/480kw | Engine Brand |
CHONGQING CUMMINS ENGINE COMPANY LTD. |
| Standby Power | 660kva/520kw | Engine Model | KTA19-G8 |
| Frequency/Speed | 50hz/1500rpm, 60hz/1800rpm | Control Module(Standard) |
Deepsea 6120 ( 7320,Deif,Comap,Smartgen) |
| Rated Power Factor | 0.8 | Rated Current | 830A |
| Standard Voltage | 400V/230V | Circuit Breaker Capacity | 1000A |
| Phases | 3 | Fuel Consumption @ 100% Load | 133L/H |
Cummins KTA19-G8 Diesel Engine Datasheet
The Cummins KTA19-G8 diesel engine is a high-efficiency, energy-saving, and exceptionally durable power solution engineered by Cummins. Designed as the premium choice for medium-duty heavy trucks and construction machinery, it delivers unmatched reliability and performance in demanding applications.
| Engine Brand |
Chongqing CUMMINS ENGINE Co.,LTD |
|
Engine Model |
KTA19-G8 |
|
No. of Cylinders |
6 |
|
Cycle |
4 Cycle |
| Compression ratio |
17.3:1 |
|
Bore ×Stroke |
159 x 159 mm |
|
Displacement (L) |
19L |
|
Energy in power output (gross) Prime Power(kw) |
|
|
Energy in power output (gross) Standby Power(kw) |
575KW/719KVA |
| Fuel consumption at 100% full load (L/h) | 133 |
Standards
Stamford industrial alternators meet the requirements of BS EN 60034 and the relevant section of other international standards such as BS5000, VDE 0530, NEMA MG1-32, IEC34, CSA C22.2-100 and AS1359. Other standards and certifications can be considered on request.
Quality Assurance
Alternators are manufactured using production procedures having a quality assurance level to BS EN ISO 9001.
| Stamford Alternator Model | S5L1D-E4 |
| Prime Power | 528kw/660kva |
|
Excitation System |
|
| AVR Standard | AS440(Self-Excited / Aux winding) |
|
Voltage Regulation |
± 1% |
|
No Load Excitation Voltage (V) |
12 V |
|
Full Load Excitation Voltage (V) |
48V |
|
Electrical Data |
|
|
Insulation System |
H |
|
Stator Winding |
Double Layer Concentric |
|
Winding Pitch |
Two Thirds |
|
Winding Leads |
12 |
|
Winding Number |
311 |
|
Number of Poles |
4 |
|
IP Rating |
IP23 |
|
RFI Suppression |
EN 61000-6-2 & EN 61000-6-4, refer to factory for others |
|
Waveform Distortion |
NO LOAD < 2% NON-DISTORTING BALANCED LINEAR LOAD < 5.0% |
|
Short Circuit Ratio |
1/Xd |
|
Steady State X/R Ratio |
14.41 |
|
De-Rates |
All values tabulated above are subject to the following reductions: - 3% for every 500 meters by which the operating altitude exceeds 1000 meters above mean sea level - 3% for every 5°C by which the operational ambient temperature exceeds 40°C - For any other operating conditions impacting the cooling circuit please refer to applications Note: Requirement for operating in an ambient exceeding 60°C and altitude exceeding 4000 meters must be referred to applications. |
Advanced Control Panel
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| Languages can be stored in the module | 2 | 7 |
| RS232 port | -（Not available) | √ |
| RS485 port | ■*(*indicates that DSE857 communication module needs to be added.) | √ |
| Ethernet port | ■**(**indicates that DSE855 communication module needs to be added.) | ■**(**indicates that DSE855 communication module needs to be added.) |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | -（Not available) | √ |

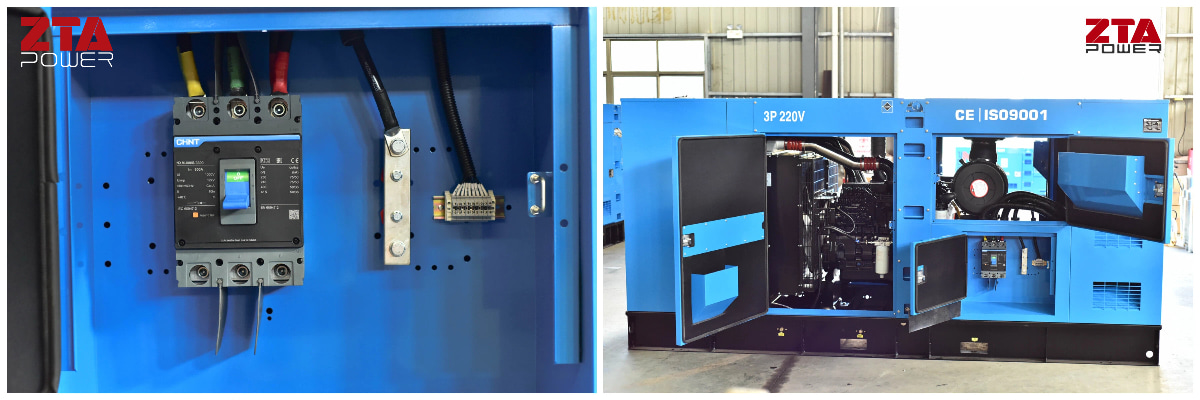

Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 1250A |
| Pole | 3P |

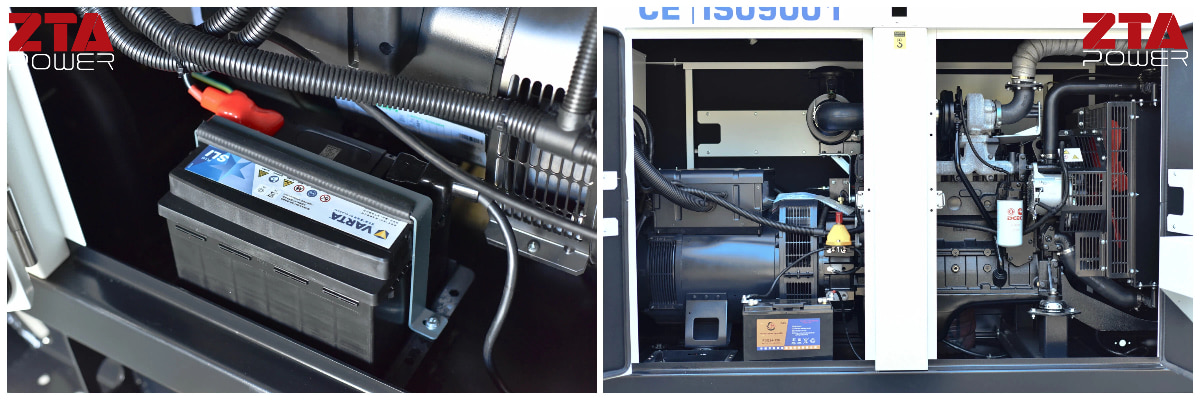

Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 100A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ② Main Circuit Breaker |
| ③ Cooling Radiator | ④ 8 hours Base Fuel Tank |

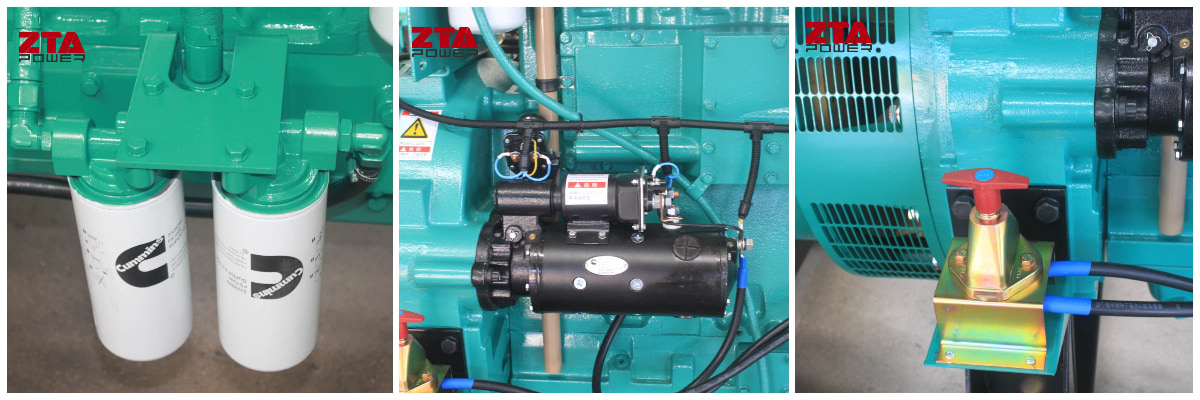

| ⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⑥ Starting Motor |
| ⑦ Exhaust Silencer | ⑧ Starting Batter |
| ⑨ Float Battery Charger | ⑩ Flange |
Optional Supply Scope
| ① ATS | ② Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⑤Elec.coolant Heater |
⑥ Oil drain Pump |
|
⑦Trailer & Silent Canopy |
⑧Synchronization System |
Key Features & Benefits
Fuel-Efficient Performance – Optimized combustion for lower operating costs
Heavy-Duty Reliability – Robust construction for extended service life
Versatile Applications

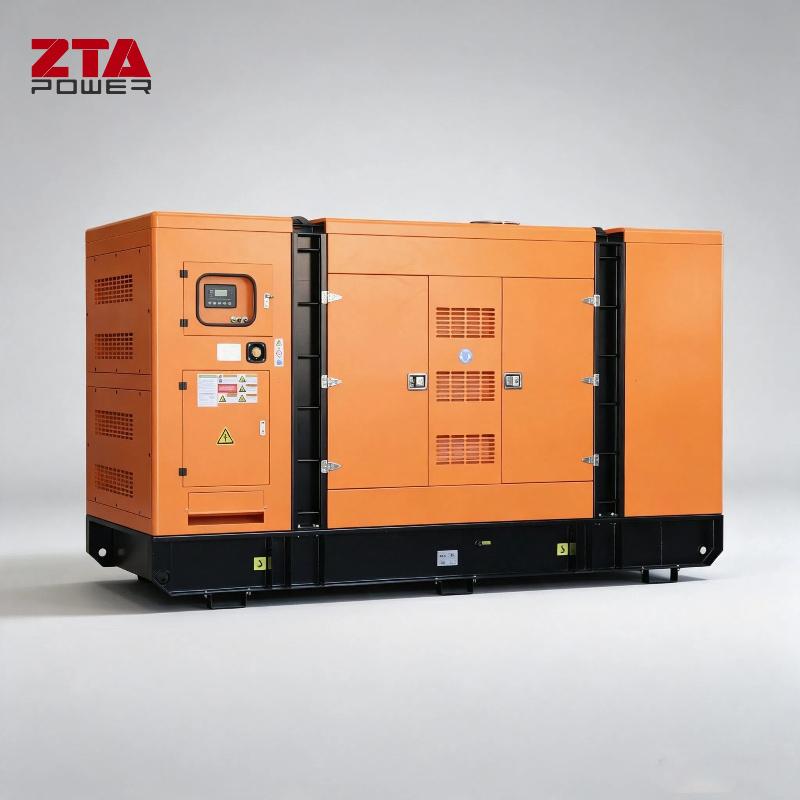

Silent Type Generator Canopy Photo
FAQ :
Q: What is your payment terms:
A: We can accept T/T, LC At Sight.
Q: How Long Delivery time :
A: Our Generator Set Normal 1 month Delivery time. For some imported engines such as UK/USA Perkins need to recheck while confirm the order.
Q: How often does a diesel generator require maintenance?
A:Maintenance frequency depends on usage (standby vs. prime power). For standby units, we recommend a basic inspection monthly and a full load test every 6-12 months. For continuous-use units, follow engine manufacturer guidelines, typically including oil/filter changes every 250-500 hours. Regular maintenance is crucial to ensure reliability, long life, and compliance with warranty terms.
Q: What warranty do you offer, and is global technical support available?
A: We provide a standard 12-24 month warranty from shipment date, covering major defects in materials and workmanship. Extended warranties are available. Our technical support team is accessible via email and phone, and we partner with service agents in key regions to assist with troubleshooting, parts supply, and on-site repairs worldwide.
Diesel Generator Application:
1. Primary Power Source
Remote & Off-Grid Locations: Mining camps, oil/gas fields, rural telecommunications towers, agricultural operations.
Emerging Markets & Islands: Where grid infrastructure is unreliable or nonexistent.
Continuous Industrial Processes: Manufacturing plants requiring uninterrupted power for production lines.
2. Emergency / Standby Power
Critical Facilities: Hospitals, data centers, airports, command centers.
Commercial Buildings: Office towers, shopping malls, hotels (to maintain safety systems, lighting, and elevators during outages).
Infrastructure: Water treatment plants, pumping stations, subway systems.
