Cummins 800KW 1000kVA KTA38-G5 Open Type Synchronize Genset

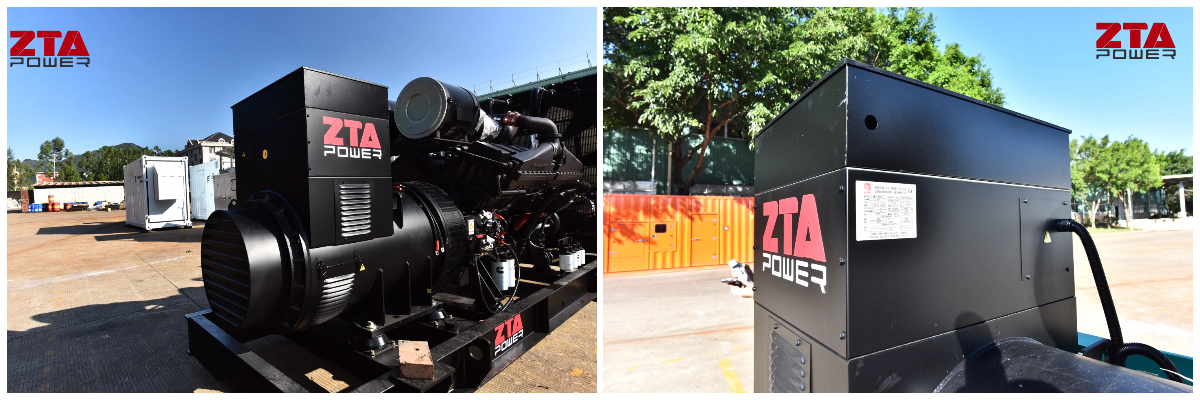

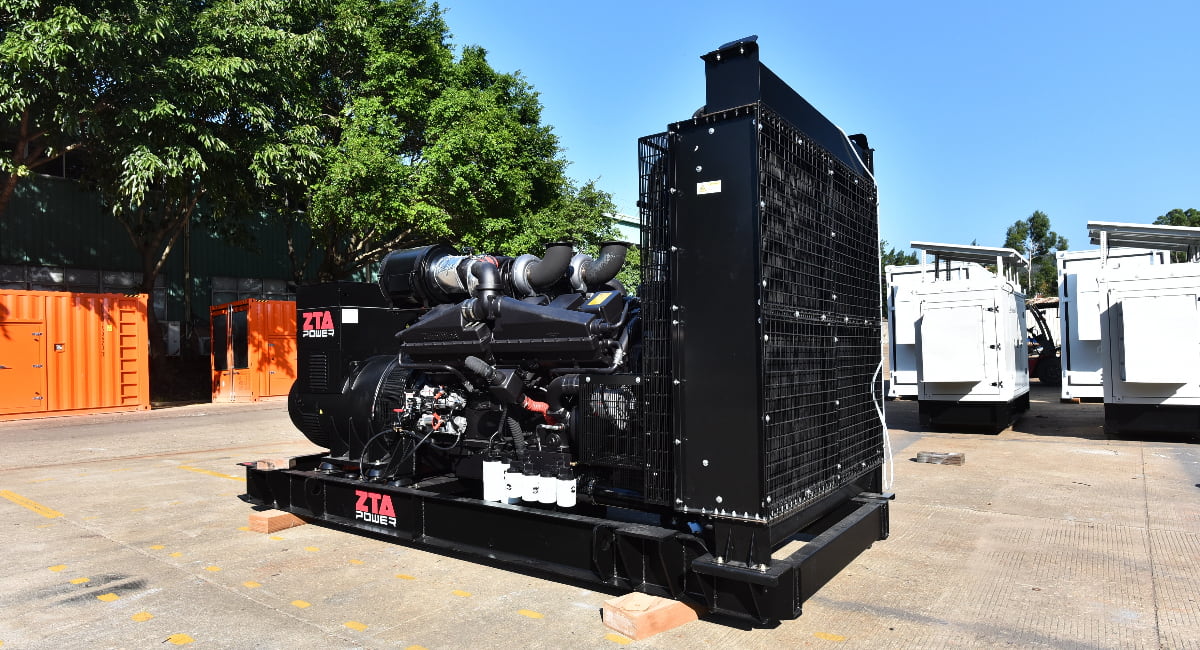

Cummins 800kW 1000kVA Open Type Diesel Generator Set
Brand:
Chongqing CumminsItem NO.:
AC1100Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
7500Cummins 2 Units 800KW 1000kVA KTA38-G5 Open Type Synchronize Genset
Our Cummins 800kW (1000kVA) Open Type Diesel Generator Set is engineered to deliver critical power when you need it most. Built around the world-renowned Cummins diesel engine and ZTA alternator, this genset is the epitome of durability, efficiency, and performance for a wide range of industrial and commercial applications.
Generator Set Specification
| Rated Voltage | 400V/230V | Rated Current | 1600A |
| Place of Origin | Fujian, China | Brand Name | ZTA Power |
| Genset Model | AC1100 | Engine | Cummins |
| Frequency | 50hz,60hz available | Alternator | Copy stamford |
| Speed | 50hz/1500rpm | Synchronize Controller | UK Deepsea 8610 |
| Certificate | CE/ISO | Phase | Three phase four wires |
| Warranty | 1 year or 1000hours whichever comes first with global warranty | Fuel tank | 8 hours |
| Lead Time | One month | Circuir breaker | 1600A ACB |
Standard Supply Scope
Our ZTA Power 800kw 1000kva diesel genset Ideal for data centers, manufacturing plants, mining operations, large construction sites, and hospital backup systems, this open-type configuration provides a flexible power solution designed for integration into your specific environment.
| Genset Model | AC1100 |
| Prime Power | 800KW/1000KVA |
| Standby Power | 880KW/1100KVA |
| Frequency/Speed | 50HZ/1500RPM, 60HZ/1800RPM |
| Standard Voltage | 400/230V,380/220V |
| Phases | 3 Phase 4 Wires |
| Manufacturer | XIAMEN ZTA POWER System Co.,Ltd |

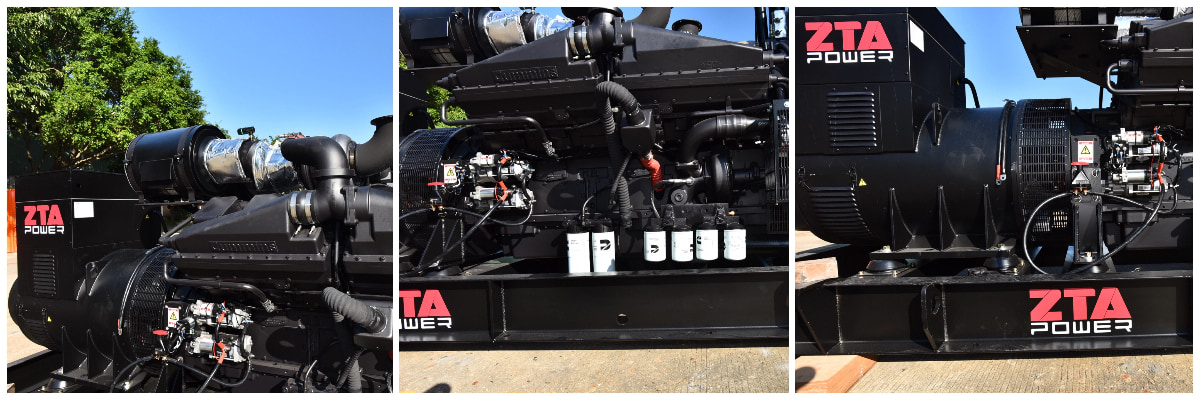

Cummins KTA38-G5 Diesel Engine Datasheet
The Cummins KTA38-G5 is a legendary, heavy-duty diesel engine renowned for its exceptional durability, fuel efficiency, and unwavering performance in the most demanding industrial applications. As a cornerstone of Cummins' renowned K Series, this 38-liter, V12 configuration engine is engineered to deliver maximum uptime and low total cost of ownership.
| Engine Brand | Chongqing Cummins Engine Co.,ltd |
|
Engine Model |
KTA38-G5 |
|
No. of Cylinders |
V-12 |
|
Cycle |
4 Cycle |
| Compression ratio |
13.9:1 |
|
Bore ×Stroke |
159 x 159 mm |
|
Displacement (L) |
38L |
|
Energy in power output (gross) Prime Power(kw) |
881 |
|
Energy in power output (gross) Standby Power(kw) |
970 |
| Fuel consumption at 100% full load (L/h) |
| Type Injection System | Cummins PT |
|
Fuel Consumption (litre/hour) |
L/h |
|
100% output power |
212 |
| 75% output power | 163 |
| 50% output power | 114 |
| 25% output power | 65.4 |
Standards
1.Reliable AVR exciting system and optional permanent magnetic system always
Provide invaliable excitation on all occasions .
2. Easy to be connected with power network or parallel on the generators
3. Balanced rotor, sealed sing le and double ball bearing s.
4. Convenient installation and
Easy maintenance, easy access to terminal, rotating rectifier and coupling bolts
5. Wide range of adapter and coupling disc for single bearing
6. In conformity with all main land standard
| ZTA Alternator Model | ZA-800-4 |
| Prime Power | 800kw/1000kva |
| Insulation class | H |
|
Rated voltage |
400V Three phase four wires |
|
Adjusting rate of stable voltage |
≤1 |
|
Transient state voltage |
≤15%~+20% |
|
Wave aberration rate of voltage THD |
≤3% |
|
Telephone harmony wave fact or of telephone THF |
≤2% |
|
Telephone effective factor of telephone TIF |
≤50 |
|
ENVIRONMENT CONDITIONS |
|
|
Under the following Environment, the generator could running continuously |
|
|
Altitude |
≤1000m |
|
Cooling Air Temperature |
0-40℃ |
|
Relative air humidity |
≤90% |

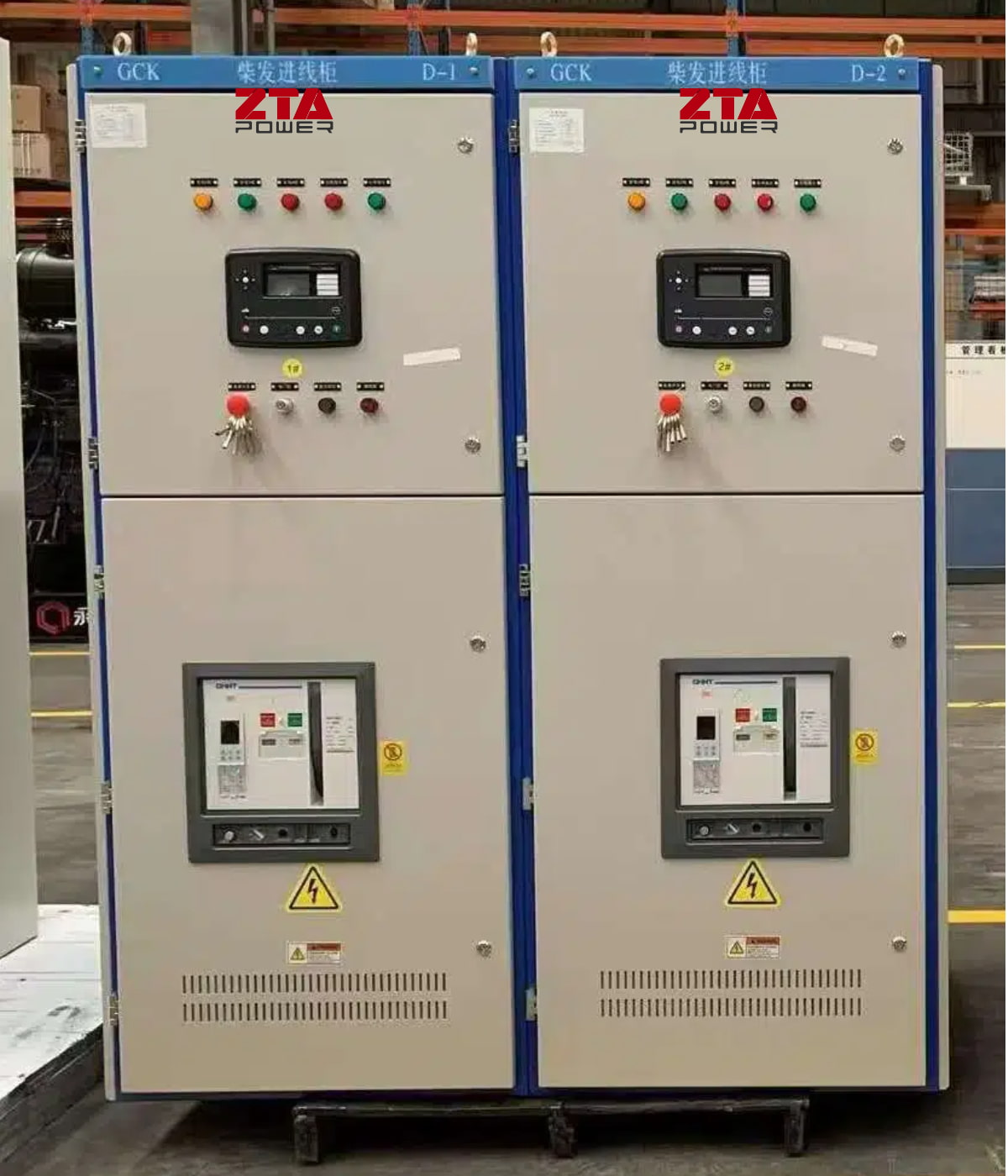

Advanced Control Panel
The DSE8610 is an easy to use multi-generator loadshare system, designed to synchronise up to 32 generators including electronic and non-electronic engines.
The DSE8610 monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition.
System alarms are annunciated on the LCD screen (multiple languageoptions available), illuminated LED and audible sounder.
The event log will record 250 events to facilitate easy maintenance. An extensive number of fixed and flexible monitoring, metering and protection features are included as well as comprehensive communication and system expansion options.
Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences, timers and alarms. With all communication ports capable of being active at the same time, the DSE8610 is ideal for a wide variety of demanding load share applications.
KEY LOAD SHARE FEATURES:
|
• Peak lopping |
• Sequential set start |
• Manual voltage/frequency adjustment
|
|
• R.O.C.O.F. and vector shift |
• Generator load demand |
•Automatic hours run balancing |
|
• Mains (Utility) de-coupling |
• Mains (Utility) de-coupling test mode
|
• Dead bus sensing |
|
• Bus failure detection |
• Direct governor and AVR control |
• Volts and frequency matching |
|
• KW and KVA Ar load sharing |
Circuit Breaker Specification
| Manufacturer | XIAKONG |
| Capacity | 1600A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 120A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities 4 | Pcs |
Standard Supply Scope
| ① Auto Control Panel | ② Main Circuit Breaker |
| ③ Cooling Radiator | ④ 8 hours Base Fuel Tank |
| ⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⑥ Starting Motor |
| ⑦ Exhaust Silencer | ⑧ Starting Batter |
| ⑨ Float Battery Charger | ⑩ Flange |
Optional Supply Scope
| ① ATS | ② Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⑤ Elec.coolant Heater |
⑥ Oil drain Pump |
|
⑦ Trailer & Silent Canopy |
⑧ Synchronization System |
1. Rigorous Pre-Shipment Testing
Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements
2. Comprehensive Warranty Coverage
Engine & Alternator Warranty: Aligns with OEM global policies (Cummins etc.)
Free Parts Replacement: During warranty period
Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost
24/7 Response: Immediate troubleshooting upon notification
3. Global OEM Service Network
For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support
Silent Type Generator Canopy Photo

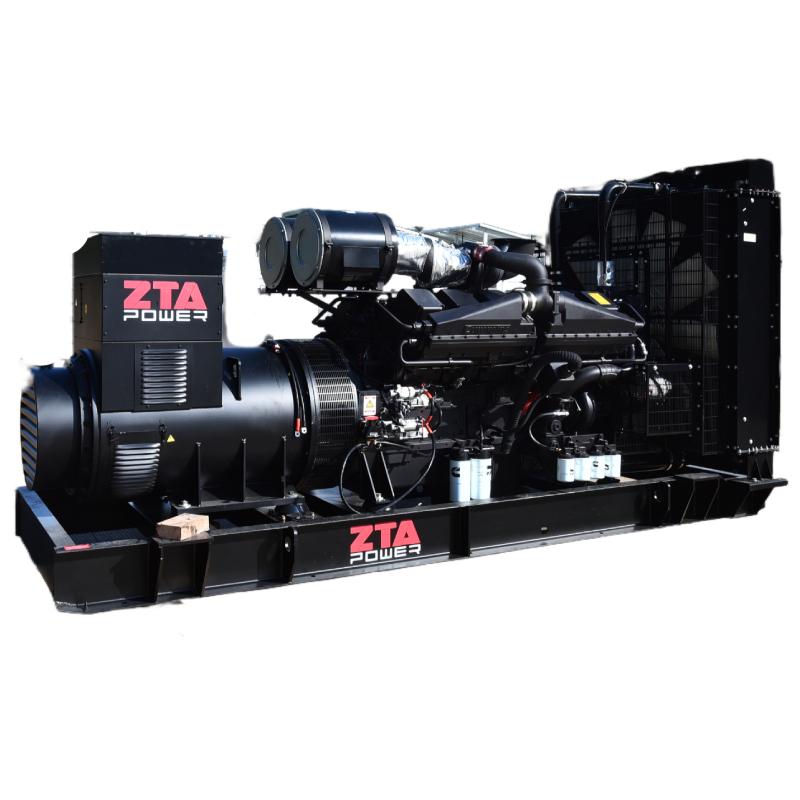

Reliable Cummins NTA855-G2A diesel generator delivering 275kW (344kVA) prime power.
