ZTA Power offers the reliable Perkins 1104A-44TG2 64kW / 80kVA diesel generator for prime and standby power. Get competitive pricing, full specifications, and worldwide shipping
Brand:
PerkinsItem NO.:
ZP88Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：

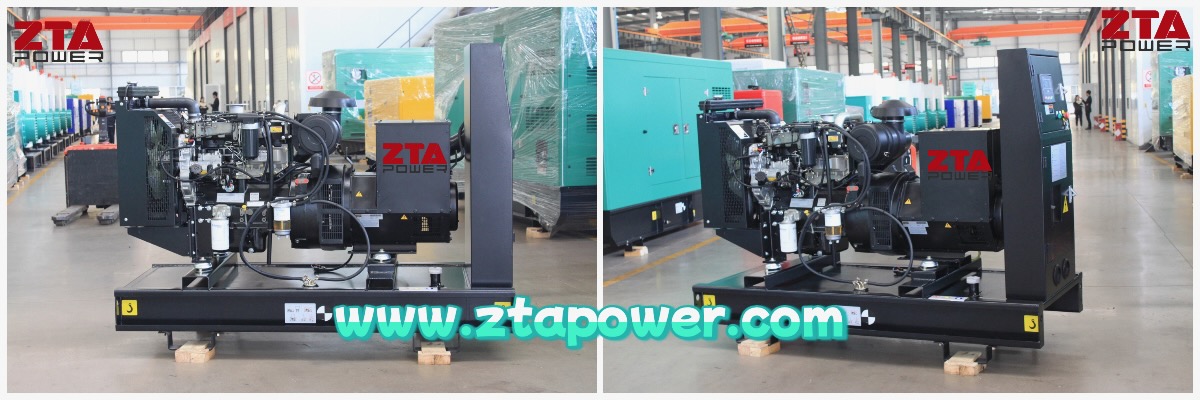

1500Perkins 64KW 80kVA Diesel Generator 1104A-44TG2
This generator is powered by the reliable Perkins 1104A-44TG2 engine, delivering 64kW (80kVA) of prime or standby power. It's an ideal, compact solution for small to medium businesses, construction sites, and as a reliable backup power source.
Generator Set Specification
Standard Supply Scope
Assembled by Perkins diesel engine and Leroy Somer alternator.
1. Engine: Brand-new engine 1104A-44TG2,with start motor.
2. Alternator: Brand new brushless alternator LSA44.3S3 , single bearing, IP23, H insulation class.
3. Radiator: With 40~50 ℃ safety guard.
4.Controller: Automatic controller with AMF function.
5.Vibration Damper: Vibration damper between Engine/Alternator and base frame
6.Breaker: 3-pole output manual circuit breaker.
7.Battery: High capacity sealed maintenance free battery c/w battery cables.
8. Battery Charger: With Float battery Charger
9. Base Frame:Heavy duty steel channel base frame.
10.Fuel Tank: Below 500KW, skid-mounted bottom fuel tank for 8hrs full load as standard supply. Above 500kw, Separately Storage fuel tank is provided at extra cost.
11. Silencer: Heavy duty industrial type silencer with flexible bellow,elbow.
12. Manuals:Complete operation/maintenance/manuals for Generator set.
| Genset Model | ZP88 |
| Prime Power | 64KW/80KVA |
| Standby Power | 70KW/88KVA |
| Frequency/Speed | 50HZ/1500RPM, 60HZ/1800RPM |
| Standard Voltage | 400/230V,380/220V |
| Phases | 3 Phase 4 Wires |
| Manufacturer | XIAMEN ZTA POWER System Co.,Ltd |
Perkins 1104A-44TG2 Diesel Engine Datasheet
| Engine Brand |
Perkins Engines Company Limited |
|
Engine Model |
1104A-44TG2 |
|
No. of Cylinders |
6 |
|
Cycle |
4 Cycle |
| Compression ratio |
17.25:1 |
|
Bore ×Stroke |
105 x 127 mm |
|
Cubic capacity (L) |
4.4L |
|
Energy in power output (gross) Prime Power(kw) |
73.4 |
|
Energy in power output (gross) Standby Power(kw) |
80.5 |
| Fuel consumption at 100% full load (L/h) | 4.1 |
Standards
MAGNAMAX® synchronous AC generators meet the main international standards and regulations: NEMA MG1, IEC60034 and GB755.
MAGNAMAX® generators are designed, manufactured and marketed in an ISO 9001 environment.
APPLICATIONS
MAGNAMAX® synchronous AC generators are
designed to be suitable for typical generator
applications, such as:

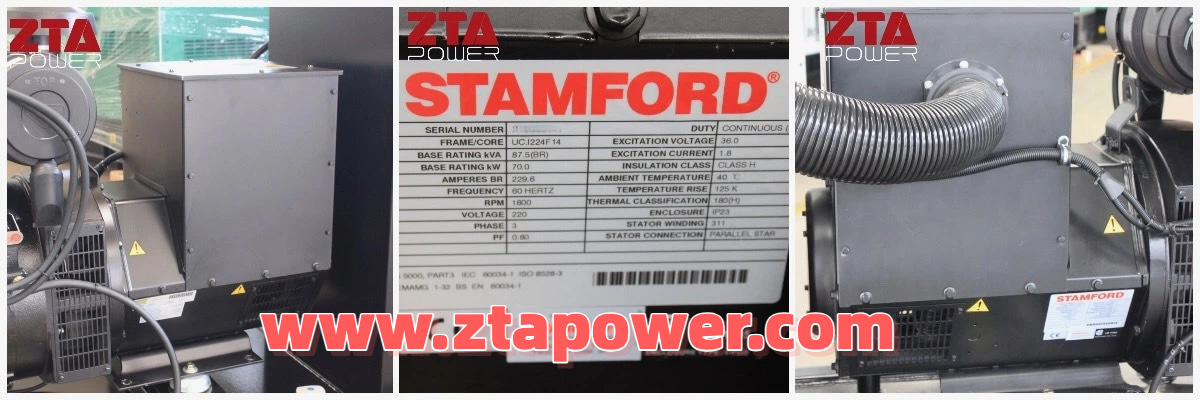

| Stamford Alternator Model | MP-64-4 |
| Prime Power | 64kw/80kva |
|
Excitation System |
|
| AVR Standard | Standard Included |
|
Voltage Regulation |
± 0.25% |
|
Electrical Data |
|
|
Insulation System |
H |
|
Stator Winding |
Double Layer Concentric |
|
Winding Pitch |
Two Thirds |
|
Winding Leads |
12 |
|
Winding Number |
311/312 |
|
Number of Poles |
4 |
|
IP Rating |
IP23 |
|
De-Rates |
All values tabulated above are subject to the following reductions: - 3% for every 500 meters by which the operating altitude exceeds 1000 meters above mean sea level - 3% for every 5°C by which the operational ambient temperature exceeds 40°C - For any other operating conditions impacting the cooling circuit please refer to applications Note: Requirement for operating in an ambient exceeding 60°C and altitude exceeding 4000 meters must be referred to applications. |
Advanced Control Panel
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
Digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| USB communication | √ | √ |
| CAN port | √ | √ |
| Event Log | 100 | 250 |
| Overspeed protection | √ | √ |
| Low oil pressure protection | √ | √ |
| High coolant temperature protection | √ | √ |
| Low fuel level alarm | √ | √ |
Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 160A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 60A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ② Main Circuit Breaker |
| ③ Cooling Radiator | ④ 8 hours Base Fuel Tank |
| ⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⑥ Starting Motor |
| ⑦ Exhaust Silencer | ⑧ Starting Batter |
| ⑨ Float Battery Charger | ⑩ Flange |
Optional Supply Scope
| ① ATS | ② Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⑤ Elec.coolant Heater |
⑥ Oil drain Pump |
|
⑦ Trailer & Silent Canopy |
⑧ Synchronization System |
1. Rigorous Pre-Shipment Testing
Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements
2. Comprehensive Warranty Coverage
Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)
Free Parts Replacement: During warranty period
Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost
24/7 Response: Immediate troubleshooting upon notification
3. Global OEM Service Network
For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support

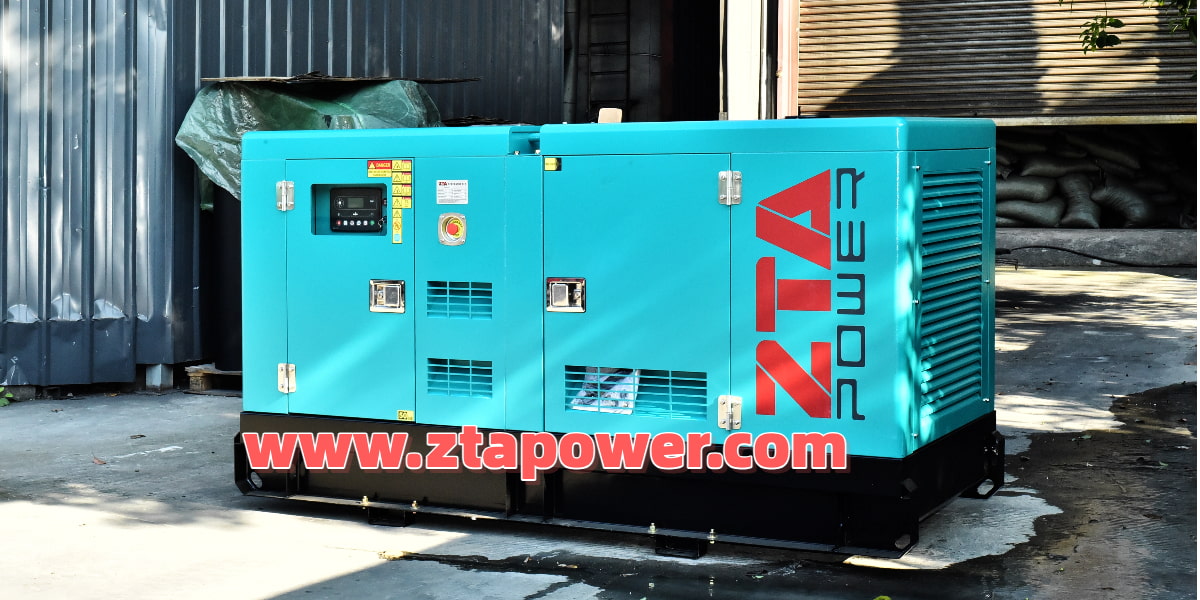

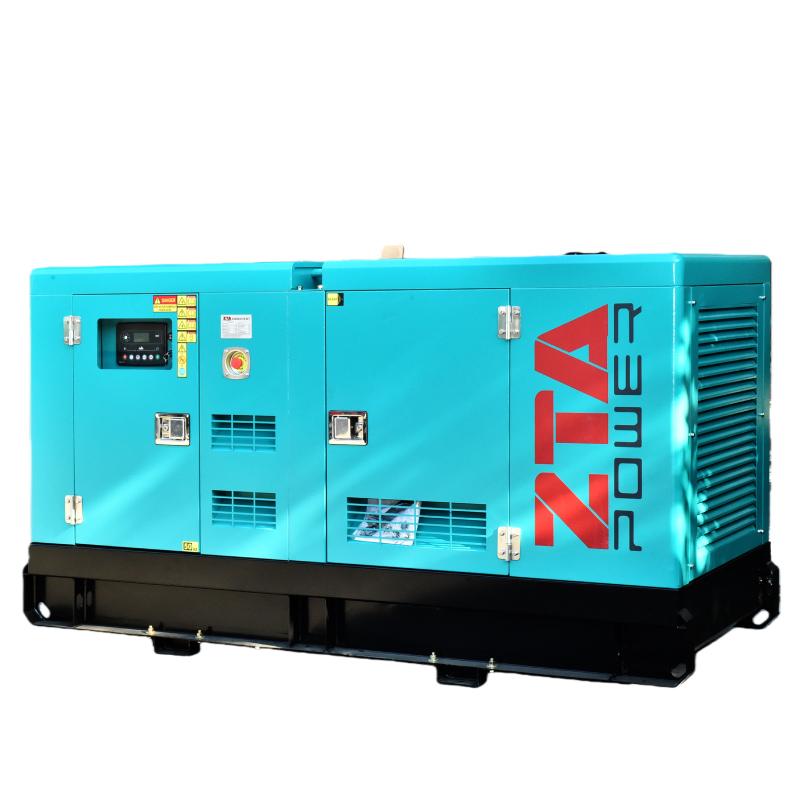

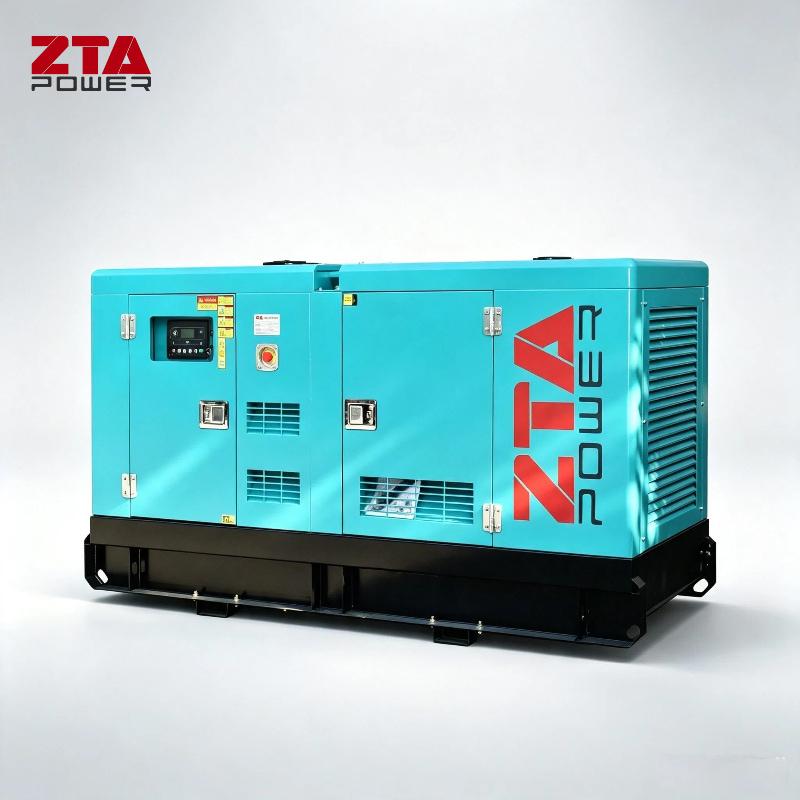

Silent Type Generator Canopy Photo

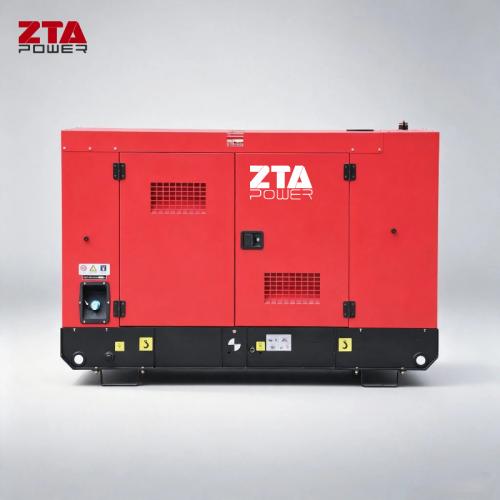

The Perkins 404D-22G diesel generator delivers 16kW (20kVA) of reliable prime power in a compact, fuel-efficient package. With EPA Tier 3 emissions certification
Details

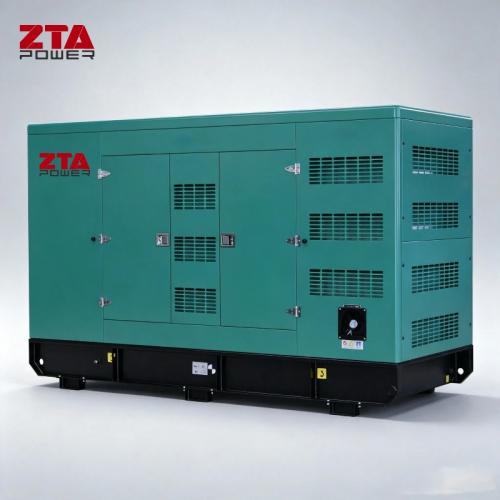

The Perkins 2806A-E18TAG2 diesel generator delivers 520kW (650kVA) of prime power, designed for continuous, heavy-duty operation in demanding environments
