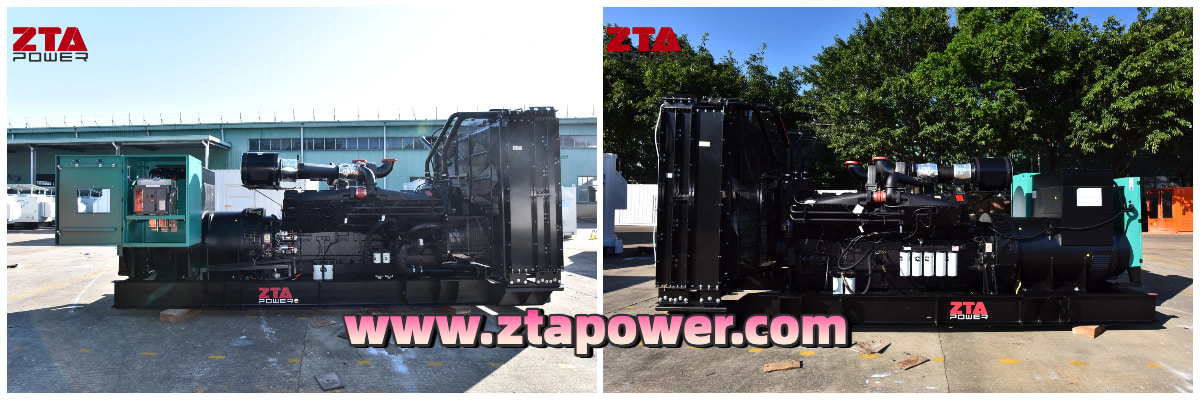

ZTA Power Cummins 1250kVA Diesel Genset Powered With Cummins KTA50-G3 and Brushless Alternator
Brand:
Chongqing CumminsItem NO.:
ZC1375Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
12100Cummins 1000KW 1250kVA Diesel Generator KTA50-G3
High Efficiency 1000KW 1250KVA generator set Powered by Cummins KTA50-G3 with Stamford S6L1D-H41 brushless alternator
Generator Set Specification
Standard Supply Scope
This generator set is assembled with a Cummins diesel engine and stamford alternator.
Engine: New Cummins engine, complete with a starting motor.
Alternator: New, brushless Leroy Somer alternator; single bearing; IP23 protection; Class H insulation.
Radiator: Engine-mounted radiator with a 40-50°C thermostat.
Controller: Power Command 3.3 Or UK Deepsea 7320 Automatic controller featuring an Auto Mains Failure (AMF) function.
Vibration Damper: Flexible vibration dampers mounted between the engine/alternator and the base frame.
Circuit Breaker: 3-pole, manual output circuit breaker.
Battery: High-capacity, sealed, maintenance-free battery with cables.
Battery Charger: Float battery charger.
Base Frame: Heavy-duty steel channel base frame.
Fuel Tank: Separately 3000L Daily fuel tank.
Silencer: Heavy-duty industrial silencer with flexible bellows and connecting elbow.
Documentation: Complete set of operation and maintenance manuals.
| Genset Model | ZC1375 |
| Prime Power | 1000KW/1250KVA |
| Standby Power | 1100KW/1375KVA |
| Frequency/Speed | 50HZ/1500RPM, 60HZ/1800RPM |
| Standard Voltage | 400/230V,380/220V |
| Phases | 3 Phase 4 Wires |
| Manufacturer | XIAMEN ZTA POWER System Co.,Ltd |

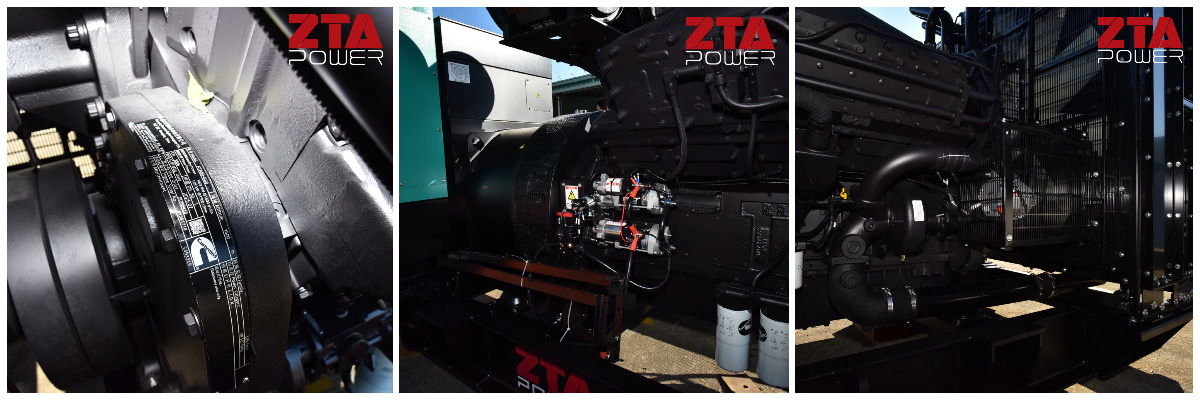

Cummins KTA50-G3 Diesel Engine Datasheet
The CUMMINS KTA50-G3 is a high-performance diesel generator set engineered for exceptional reliability and durability in prime and standby power applications. Built around the legendary K-Series engine, this 1000-1250 kVA model delivers robust power for industrial, commercial, and critical infrastructure projects. It is designed for easy maintenance and long-term operation in demanding environments.
| Engine Brand | Cummins Engines Company Limited |
|
Engine Model |
KTA50-G3 |
|
No. of Cylinders |
12 |
|
Cycle |
4 Cycle |
| Compression ratio |
13.9:1 |
|
Bore ×Stroke |
159x 159 mm |
|
Energy in power output (gross) Prime Power(kw) |
1097 |
|
Energy in power output (gross) Standby Power(kw) |
1227 |
| Fuel consumption at 100% full load (L/h) | 274 |
|
Displacement (L) |
50.3L |
|
Aspiration |
Turbocharged and Aftercooled |
|
Engine speed and frequency |
50hz/1500rpm, 60hz/1800rpm |
|
Engine speed governor |
Electric Governor |
|
Air cleaner type |
Dry replaceable element |
|
Fuel injection system |
Direct |
|
Fuel intake |
Support external daily tank with back filling |
|
Fuel tank capacity |
Greater than or equal 3000 litter embedded generator tank |
|
Fuel filter system |
Should have primary and secondary filter |
|
Fuel tank content level indicator |
available |
|
Cooling system |
Should be closed loop pressurized and liquid coolant system |
|
Water jacket heater |
Available |
|
Water pump type |
Gear driven centrifugal or better |
|
Speed governor accuracy class |
Class one |
|
Starter motor |
24V DC electrical starter motor with start and stop system |
operation At Elevated Temperatrue And Altitude:
The engine may be operated at:
1800RPM up to 5,000 ft.(1,500m) and 104°F (40℃) without power deration.
1500RPM up to 5,000 ft.1,500m) and 104°F (40℃) without power deration.
For sustained operation above these conditions, derate by 4% per 1,000ft. (300m), and 1% per 10°F (2% per 11℃).
• Core Material:
• Windings:
• Frame:
Constructed from cast iron or aluminum alloy for structural rigidity and effective heat dissipation.
• Core Material:
Silicon steel laminations similar to the stator, optimized for magnetic flux distribution.
• Windings:
• Shaft:
Forged steel shaft with precision machining for balanced rotation and minimal vibration.
• Poles and Dampers:
Salient poles with integrated damper bars to reduce harmonic distortion and improve stability.

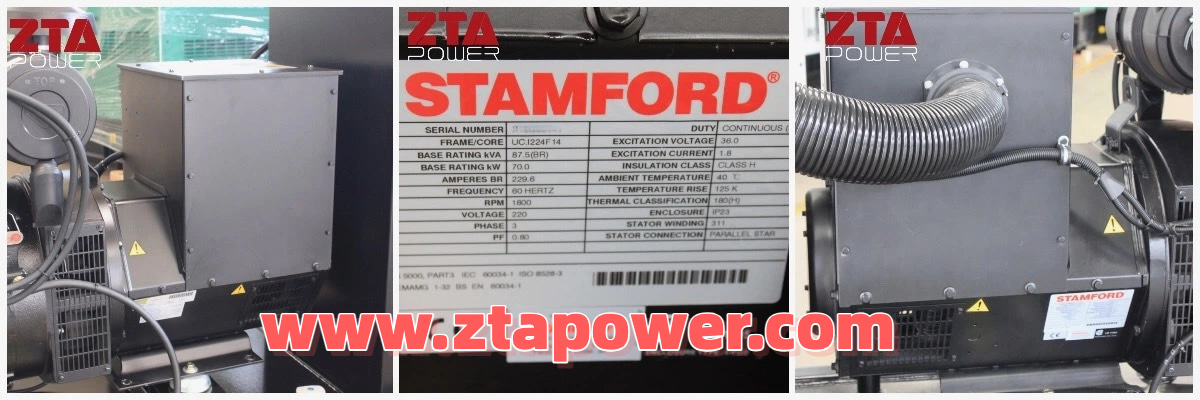

| Stamford Alternator Model | S6L1D-H41 |
| Prime Power | 1120kw/1400kva |
|
Alternator excitation system |
The alternator screen protected, drip-proof, self- regulating, self-exciting, brushless and directly coupled to the engine. |
|
Insulation class of alternator |
class H |
|
Automatic voltage regulator (AVR) |
Standard Included The alternator shall be AVR controlled. The AVR shall be mounted in the connection box of alternator and all components must be accessible and replaceable. The AVR shall be of three phase sensing electronic type with accuracy regulation not more than ±1%. The AVR shall be solid state or better |
|
Alternator type of connection |
Star connection (Y) |
|
Alternator phase |
3 phase, 4 wired , 4-pole, rotating-field |
|
Output voltage range |
Four wires, Line to line 400V ± 5% and Line to neutral 230V ± 5% with a frequency of 50 Hz. Star connected. |
|
Nominal power factor |
0.8 |
|
Electrical Data |
|
|
Insulation System |
H |
|
Stator Winding |
Double Layer Concentric |
|
Winding Pitch |
Two Thirds |
|
Winding Leads |
12 |
|
Winding Number |
311/312 |
|
Number of Poles |
4 |
|
IP Rating |
IP23 |
|
De-Rates |
All values tabulated above are subject to the following reductions: - 3% for every 500 meters by which the operating altitude exceeds 1000 meters above mean sea level - 3% for every 5°C by which the operational ambient temperature exceeds 40°C - For any other operating conditions impacting the cooling circuit please refer to applications Note: Requirement for operating in an ambient exceeding 60°C and altitude exceeding 4000 meters must be referred to applications. |
Advanced Control Panel
|
Controller type |
Digital microprocessor based engine and gen set controller module& all parameter are settable and password protected |
|
Display parameter |
Engine oil pressure, coolant temperature, fuel level indication %, battery voltage , engine rpm, running hours, generator set volts phase – neutral and phase-phase, generator set current(amp), power factor, kWh and kW, kVA, Hz, faults ( alarms ) and more. |
|
Audio visual warning/alarm |
Low oil pressure, high coolant temperature, low battery voltage and low fuel level |
|
Insulation class of alternator |
class H |
|
Controller system |
Timer starts delay Stop delay Crank- crank reset microprocessor engine controller module must be symbolical and written from. |
|
Engine shutdown |
The engine must be shut down during any of the following conditions: Generator overload, Under-voltage or over-voltage, Under-frequency or over-frequency, Engine over-crank, Low oil pressure, High coolant temperature, Engine over-speed or under-speed, Low fuel level, Maintenance hour interval and Emergency stop. |

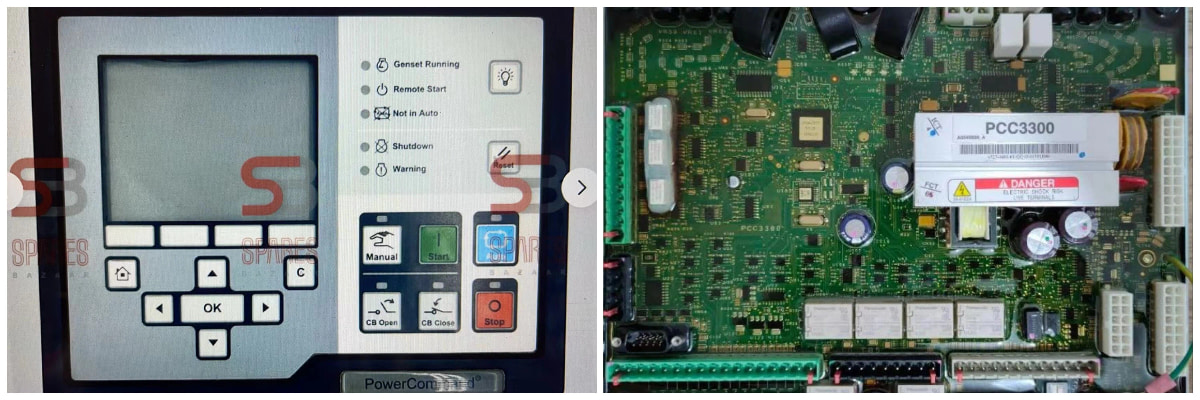

Power Command 3.3 Control Panel (Optional)
Specification Sheet
The Power Command® control system is a microprocessorbased genset monitoring, metering and control system designed to meet the demands of today’s engine driven gensets. The integration of all control functions into a single control system provides enhanced reliability and performance, compared to conventional genset control systems. These control systems have been designed and tested to meet the harsh environment in which gensets are typically applied.
Description
The PowerCommand genset control is suitable for use on a wide range of diesel and lean burn natural gas gensets in paralleling applications. The PowerCommand control is compatible with shunt or PMG excitation style. It is suitable for use with reconnectable or non-reconnectable generators, and it can be configured for any frequency, voltage and power connection from 120-600 VAC line-toline, 601-45,000 VAC with external PT. Power for this control system is derived from the genset starting batteries. The control functions over a voltage range from 8 VDC to 30 VDC.
Feature :
• 12 and 24 VDC battery operation.
• Digital voltage regulation - Three phase full wave FET type regulator compatible with either shunt or PMG systems. Sensing is three phase.
• Full authority engine communications (where applicable)
- Provides communication and control with the Engine Control Module (ECM).
• AmpSentry™ protection - for true alternator overcurrent protection.
• Genset monitoring - Monitors status of all critical engine and alternator functions.
• Digital genset metering (AC and DC).
• Genset battery monitoring system to sense and warn against a weak battery condition.
• Configurable for single or three phase AC metering.
• Engine starting - Includes relay drivers for starter, fuel shut off (FSO), glow plug/spark ignition power and switch B+ applications.
• Genset protection – Protects engine and alternator.
• Real time clock for fault and event time stamping.
• Exerciser clock and time of day start/stop initiate a test with or without load, or a Base Load or Peak Shave session.
• Digital Power Transfer Control (AMF) provides load transfer operation in open transition, closed transition, or soft (ramping) transfer modes.
• Extended Paralleling (Peak Shave/Base Load) regulates the genset real and reactive power output while paralleled to the utility. Power can be regulated at either the genset or utility bus monitoring point.
• Digital frequency synchronization and voltage matching.
• Isochronous Load Share
• Droop KW and KVAR Control
• Sync Check – The sync check function has adjustments for phase angle window, voltage window, frequency window and time delay.
• Utility/AC Bus metering and protection
• Advanced serviceability – using InPower™, a PC-based software service tool.
• Environmental protection – The control system is designed for reliable operation in harsh environments.
The main control board is a fully encapsulated module that is protected from the elements.
• ModBus interface for interconnecting to customer equipment.
• Configurable inputs and outputs – Four discrete inputs and four dry contact relay outputs.
• Warranty and service – Backed by a comprehensive warranty and worldwide distributor service network.
• Certifications – Suitable for use on gensets that are designed, manufactured, tested and certified to relevant UL, NFPA, ISO, IEC, Mil Std. and CE standards.
Base control functions
HMI capability
Options – Local and remote HMI options
Operator adjustments – The HMI includes provisions for
many set up and adjustment functions.
Genset hardware data – Access to the control and
software part number, genset rating in KVA and genset
model number is provided from the HMI or InPower.
Data logs – Includes engine run time, controller on time,
number of start attempts, total kilowatt hours, and load profile. (Control logs data indicating the operating hours at percent of rated kW load, in 5% increments. The data is presented on the operation panel based on total operating hours on the generator.)
Fault history – Provides a record of the most recent fault conditions with control date and time stamp. Up to 32 events are stored in the control non-volatile memory.
Alternator data
- Voltage (single or three phase line-to-line and line-toneutral)
- Current (single or three phase)
- kW, KVAR, power factor, KVA (three phase and total)
- Frequency
Silent Container 40ft HQ Specification
|
The weather protection canopy |
Should be constructed from zinc coated sheet metal or better which shall meet NEMA type 3 with hinged and lockable doors with key. |
|
Enclosed type generator set |
Should be specified with sound attenuation at 7meter and at full load ≤ 85dBA. |
| Pole | 3P |
Documents Supply
The following documents should be available either individually or should be indicated in the service and maintenance manuals
|
Engine and alternator
|
1) Description (operating) manual 2) Service and maintenance manuals 3) Spare parts manual |
| Control |
1) Description (operating) manual 2) Control module manual. 3) Fault-finding manual. |
| Gen-set |
1) Wiring and schematic drawing showing detailed circuits. 2)Each wire, component, terminal, etc. Shall be clearly annotated on the drawing for identification and 1) maintenance purposes. 3)Hardcopy of every manual and every drawing per unit (for each)
|
Circuit Breaker Specification
| Capacity | 2000A ACB |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 120A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 4Pcs |
Standard Supply Scope
| ① Auto Control Panel | ② Main Circuit Breaker |
| ③ Cooling Radiator | ④ 8 hours Fuel Tank |
| ⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⑥ Starting Motor |
| ⑦ Exhaust Silencer | ⑧ Starting Batter |
| ⑨ Float Battery Charger | ⑩ Flange |
Optional Supply Scope
| ① ATS | ② Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⑤ Elec.coolant Heater |
⑥ Oil drain Pump |
|
⑦ Trailer & Silent Canopy |
⑧ Synchronization System |
1. Rigorous Pre-Shipment Testing
Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements
2. Comprehensive Warranty Coverage
Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)
Free Parts Replacement: During warranty period
Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost
24/7 Response: Immediate troubleshooting upon notification
3. Global OEM Service Network
For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support

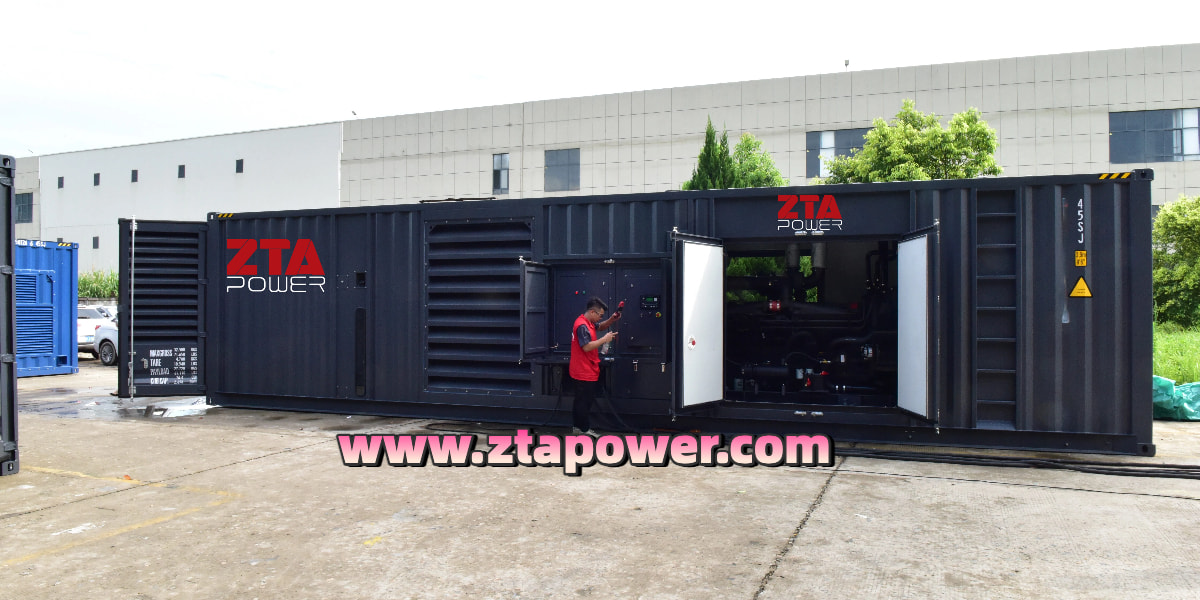

40ft HQ Silent Container Generator Canopy Photo
