Prime Power 1200kW 1500kva Cummins Genertor Set
Standby Power 1320kw/1650kva
Cummins Engine Model: KTA50-GS8
Brand:
Chongqing CumminsItem NO.:
ZC1600Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
18840Cummins Prime Power 1200kw 1500kva KTA50-GS8 Generator Set
Generator Set Specification

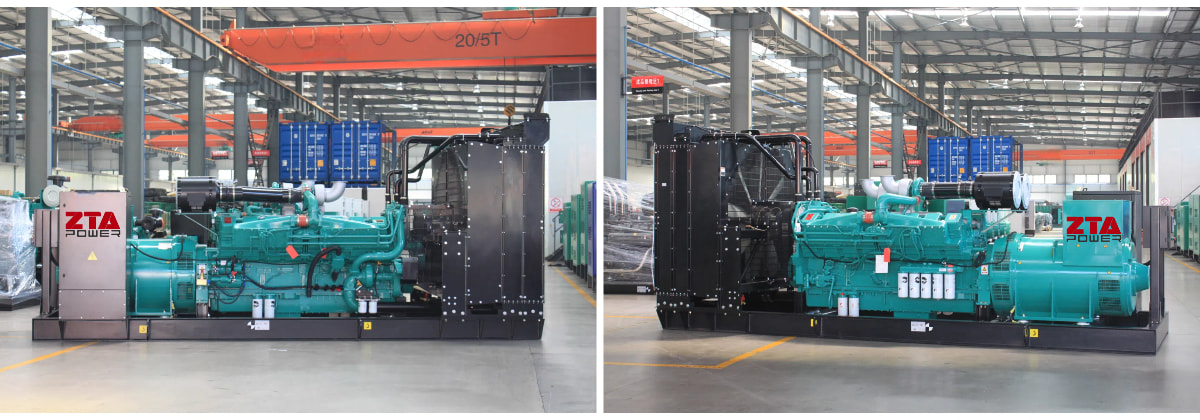

Cummins KTA50-GS8 1200kW/1500kVA Diesel Generator Set
1. Power Output: 1200kW (1500kVA) Prime | Standby Rating Available
2.Engine: Cummins KTA50-GS8 Diesel (4-Stroke, 16-Cylinder Turbocharged)
3.Voltage: 50HZ,400/415V or Customizable (480V, 60Hz Options)
4.Frequency: 50Hz/60Hz Configurable
5.Fuel System: Common Rail Direct Injection (CRDI)
6. Control Panel: UK Deepsea 7320
7. Radiator: With 40~50 ℃ safety guard.
8.Vibration Damper: Vibration damper between Engine/Alternator and base frame
9.Breaker: 3200A ABB Air circuit breaker.
10.Battery: High capacity sealed maintenance free battery c/w battery cables.
11. Battery Charger: With Float battery Charger
12. Base Frame:Heavy duty steel channel base frame.
13.Fuel Tank: skid-mounted bottom fuel tank for 8hrs full load as standard supply.
14. Silencer: Heavy duty industrial type silencer with flexible bellow,elbow.
15. Manuals:Complete operation/maintenance/manuals for Generator set.
| Genset Model | ZC1600 |
| Prime Power | 1200KW/1500KVA |
| Standby Power | 1320KW/1650KVA |
| Frequency/Speed | 50HZ/1500RPM, 60HZ/1800RPM |
| Standard Voltage | 400/230V,380/220V |
| Power Factor | 0.8 |
| Phases | 3 Phase 4 Wires |
| Manufacturer | XIAMEN ZTA POWER System Co.,Ltd |
Cummins KTA50-GS8 Diesel Engine Datasheet
| Engine Brand |
CHONGQING CUMMINS ENGINE COMPANY LTD.(CCEC) |
|
Engine Model |
KTA50-GS8 |
|
Aspiration |
Turbocharged and Low Temperature Aftercooled |
|
No. of Cylinders |
12 |
|
Cycle |
4 Cycle |
| Compression ratio |
14.9:1 |
|
Bore ×Stroke |
159 x 159 mm |
|
Displacement (L) |
50.3 L |
|
Energy in power output (gross) Prime Power(kw) |
1286 |
|
Energy in power output (gross) Standby Power(kw) |
1429 |
| Fuel consumption at 100% full load (L/h) | 309 |

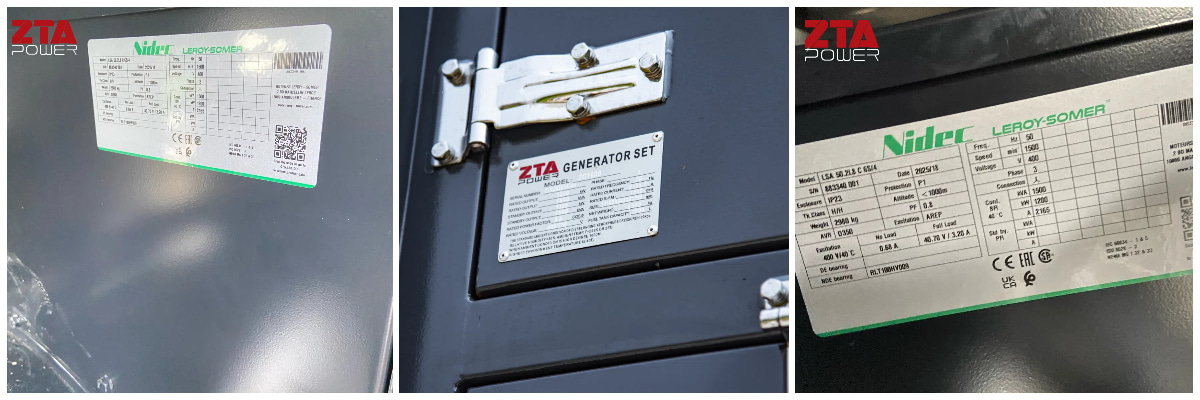

| Leroy somer Alternator Model | LSA50.2L8 |
| Prime Power | 1200kw/1500kva |
| AVR Standard | D350(Shunt) |
| Voltage Available | 50HZ: 415/240V,400/230V, 380/220V, 220/127V, 60HZ, 480/277V, 220/127V |
| Insulation Class | H |
| Number of Wires |
6-Optional 12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
| Optional |
- Filters on air inlet: derating 5% - Filters on air inlet and air outlet (IP 44): derating 10% - Winding protections for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Steel terminal box |
Features:
1.Reliable AVR exciting system and optional permanent magnetic system always
Provide invaliable excitation on all occasions .
2. Easy to be connected with power network or parallel on the generators
3. Balanced rotor, sealed sing le and double ball bearings.
4. Convenient installation and
Easy maintenance, easy access to terminal, rotating rectifier and coupling bolts
5. Wide range of flang e adapter and coupling disc for single bearing
6. In conformity with all main land standard
|
Under the following Environment, the generator could running continuously |
|
|
Altitude |
≤1000m |
|
Cooling Air Temperature |
0-40℃ |
|
Relative air humidity |
≤90% |

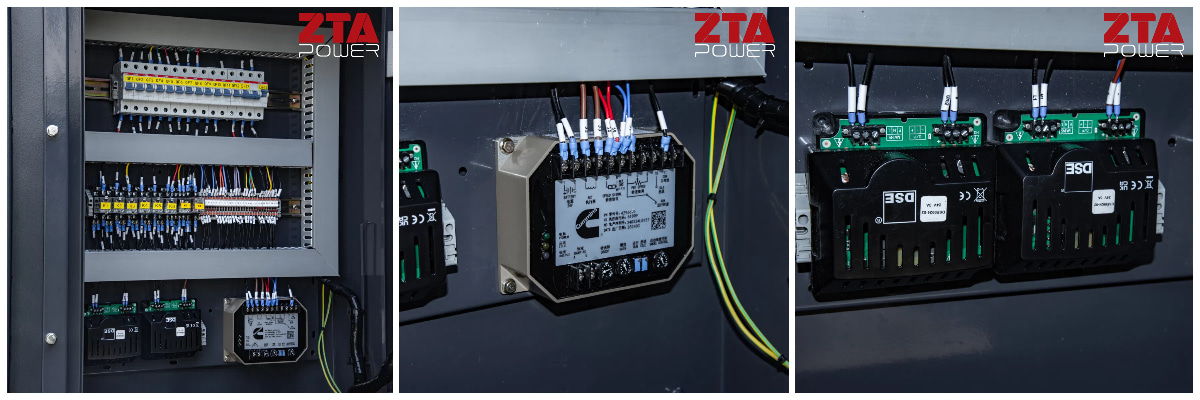

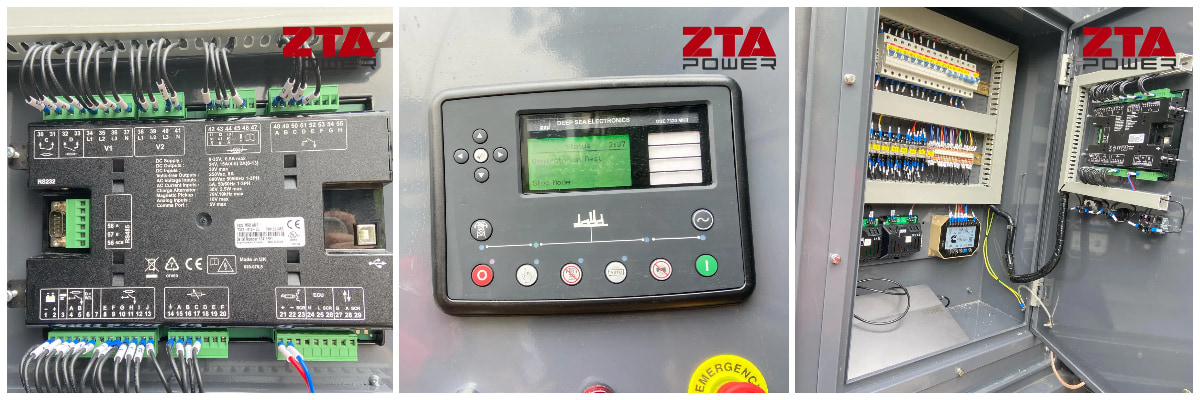

Advanced Control Panel
(UK Deepsea 7320 Also Available Base on Customer Need)
Digital control panels for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 7320 |
||
| Display Language | 18 |
Fully configurable via PC using USB, RS232 & RS485 communication |
| USB communication | √ | Automatic load transfer control |
| CAN port | √ |
Generator current and power monitoring (kW, kvar, kVA, pf) |
| Event Log | 250 |
Mains current and power monitoring (kW, kvar, kVA, pf) (DSE7320 MKII only) |
| Overspeed protection | √ |
kW and kvar overload and reverse power alarms |
| Low oil pressure protection | √ | Over current protection |
| High coolant temperature protection | √ | Unbalanced load protection |
| Low fuel level alarm | √ |
Independent earth fault protection |

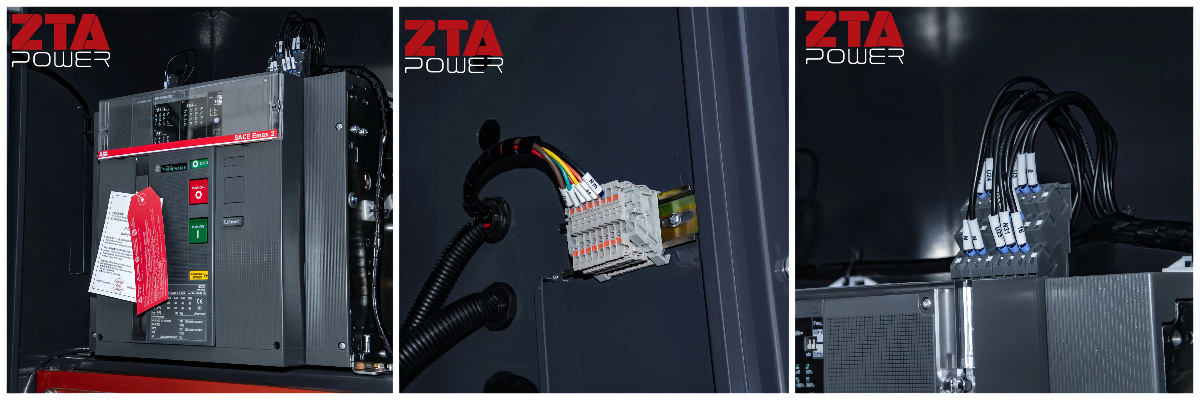

Circuit Breaker Specification
| Manufacturer | ABB With Electric Motor |
| Capacity | 3200A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 200A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 4 Pcs |

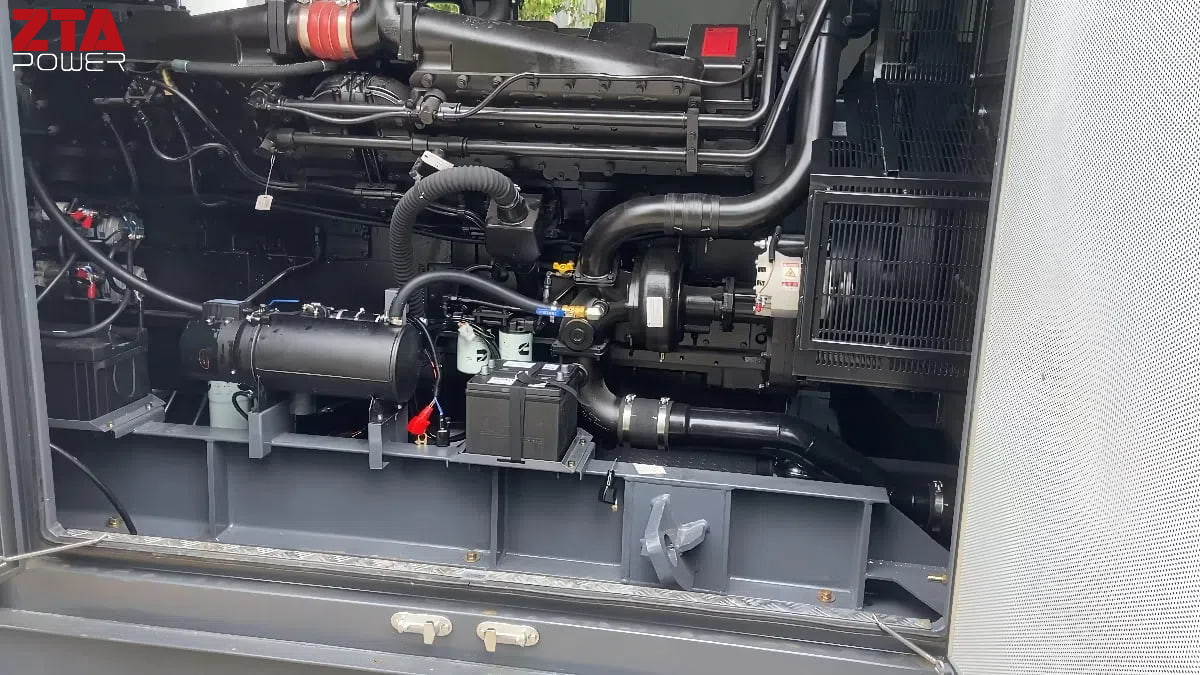

Diesel Water Heater Specification
Ensures reliable cold-start performance in freezing conditions.
Function
Primarily designed for engine preheating, this system guarantees normal engine startup in low-temperature environments.
Working Principle
Heats coolant fluid → Circulates warmed coolant throughout the engine block → Enables safe ignition and rapid load application upon startup.
Key Features
Smart Thermostat: Automatically regulates temperature with overheat protection.
Adjustable Temperature Range: Maintains coolant temperature between 18°C to 49°C in extreme cold.
Full-Engine Thermal Management: Ensures uniform heat distribution across critical components.

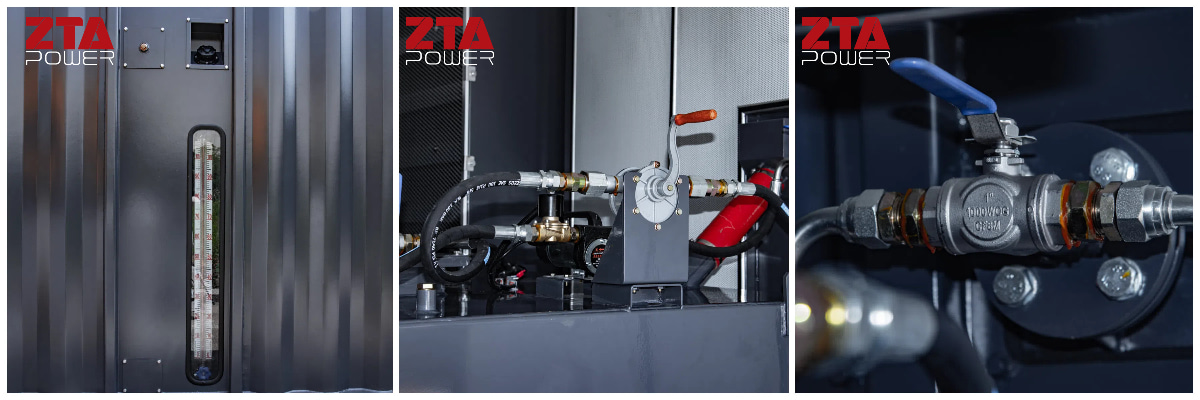

Separately Daily Fuel Tank Specification
| Capacity | 3000L |
| Running Hours | 8 Hrs |
| Bottom Fuel Inlet Port and switch | Included |
| Automatic Fuel Pump | Included |
| Diesel Oil Level Meter | magnetized floats inside a chamber to externally actuate color-coded flaps |
Standard Supply Scope
| ① Auto Control Panel | ② Main Circuit Breaker |
| ③ Cooling Radiator | ④ 8 hours Base Fuel Tank |

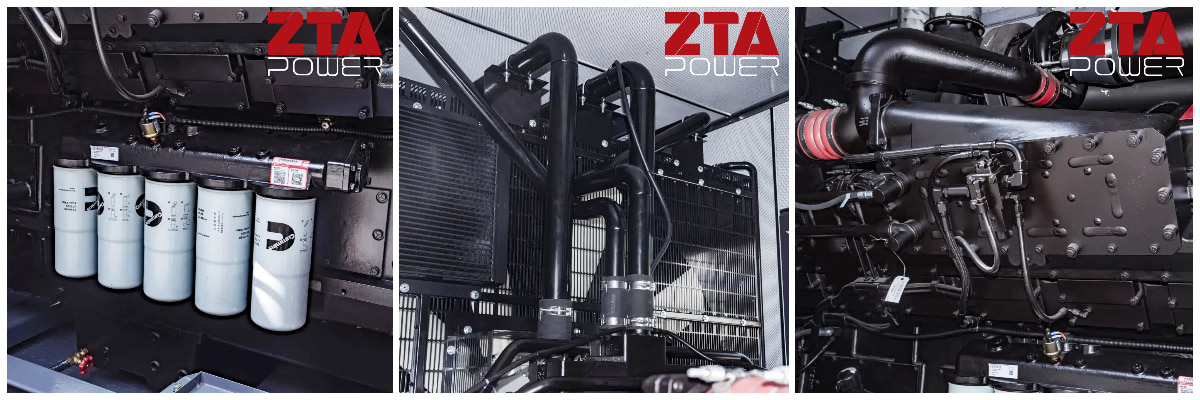

| ⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⑥ Starting Motor |
| ⑦ Exhaust Silencer | ⑧ Starting Batter |
| ⑨ Float Battery Charger | ⑩ Flange |
Optional Supply Scope
| ① ATS | ② Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⑤ Elec.coolant Heater |
⑥ Oil drain Pump |
|
⑦ Trailer & Silent Canopy |
⑧ Synchronization System |
1. Rigorous Pre-Shipment Testing
Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements
2. Comprehensive Warranty Coverage
Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)
Free Parts Replacement: During warranty period
Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost
24/7 Response: Immediate troubleshooting upon notification
3. Global OEM Service Network
For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support

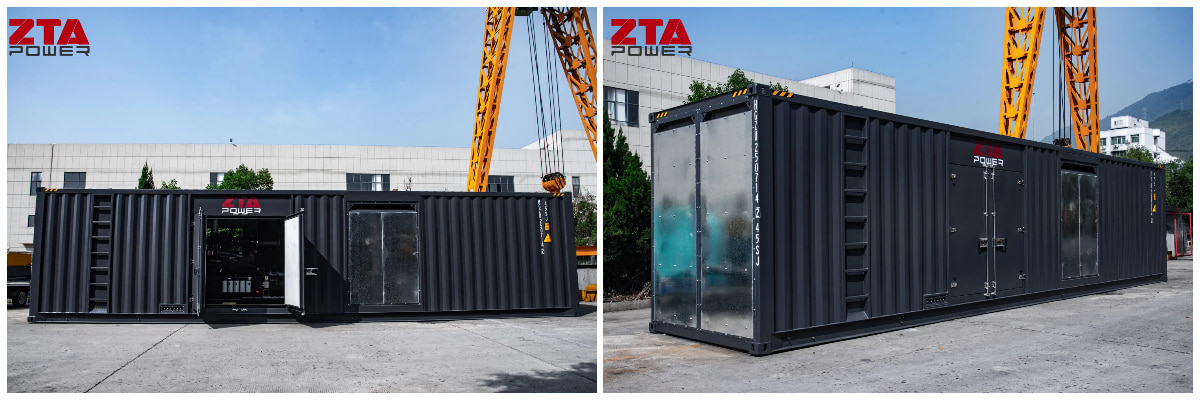

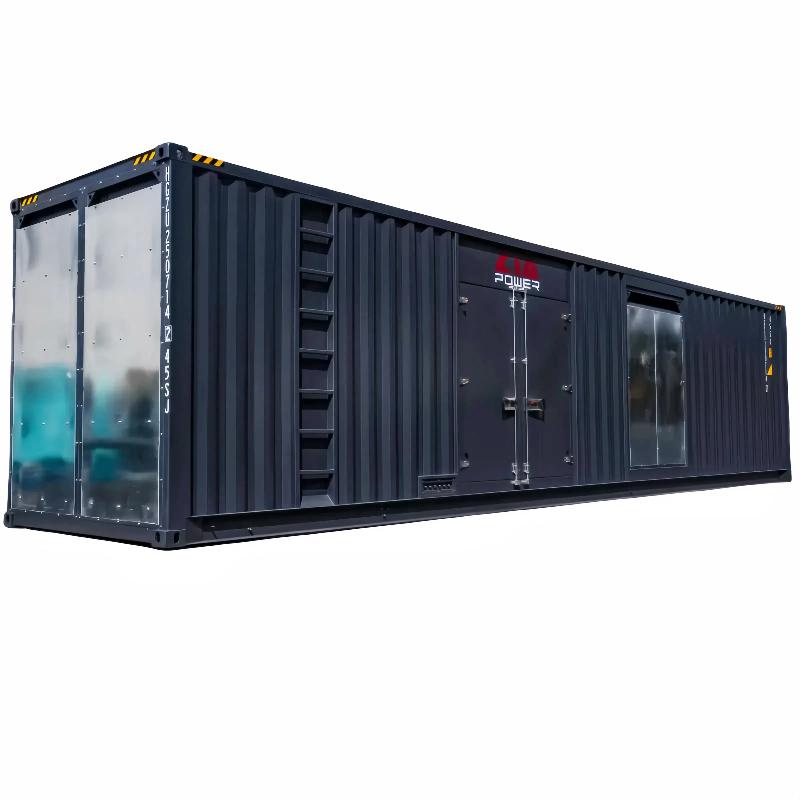

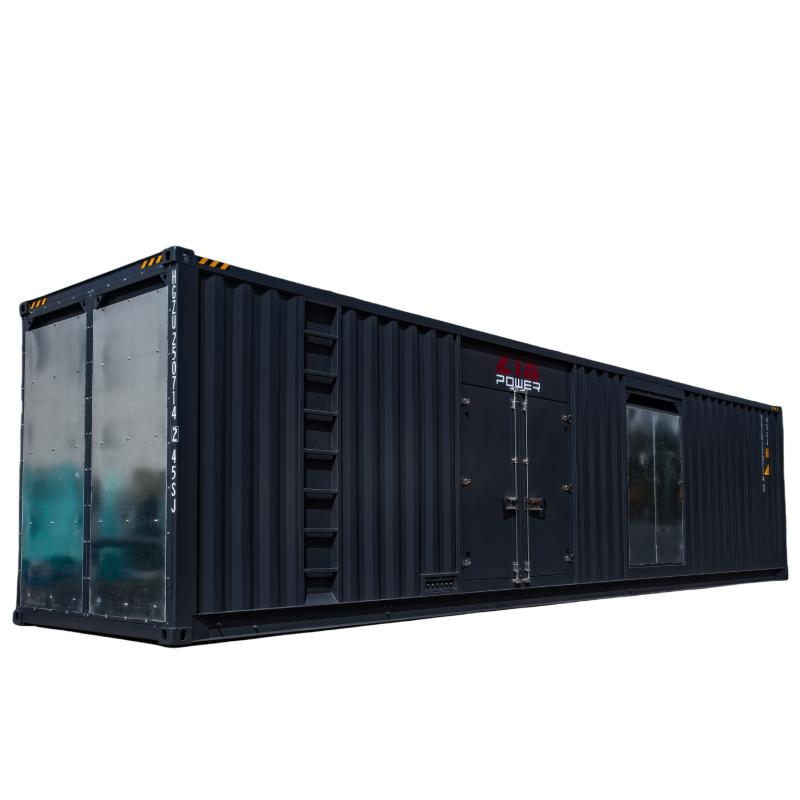

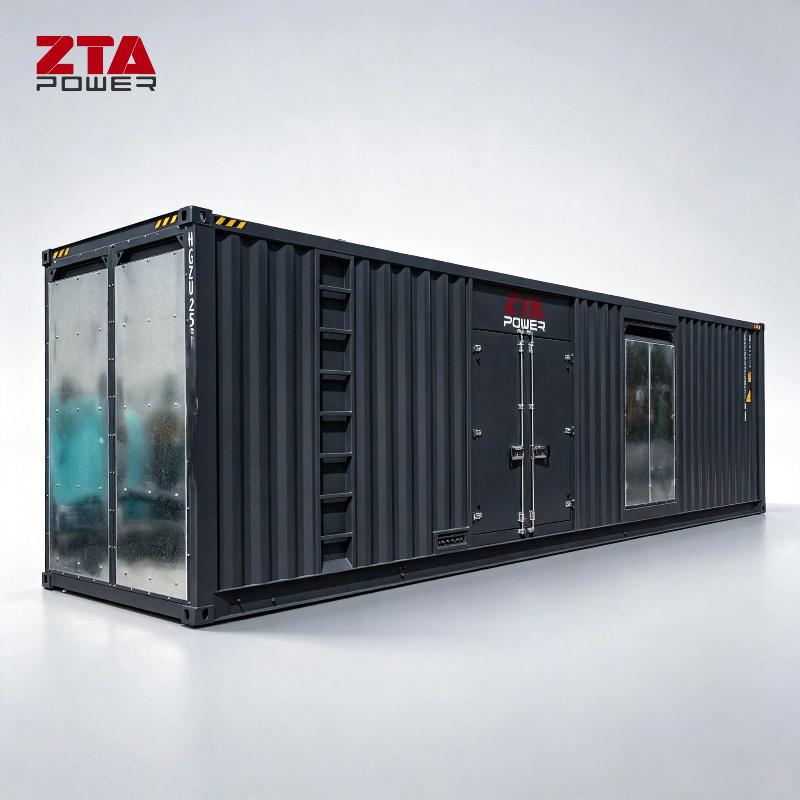

Standard 40FT HQ Container Generator Canopy Photo
