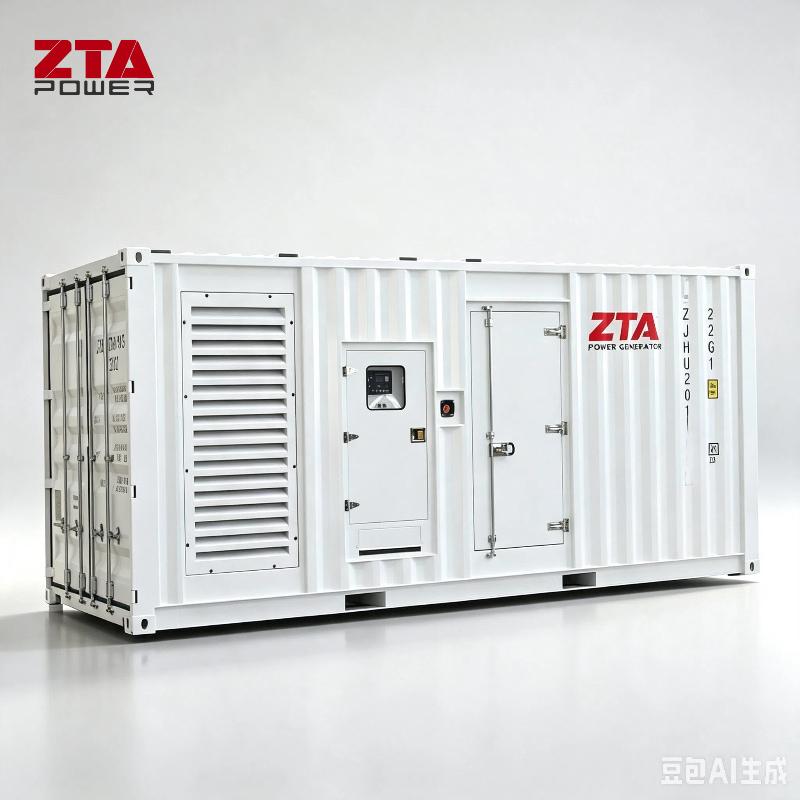

Cummins 1000KW 1250kVA Generator With 20FT Container

Cummins 1000KW 1250kVA Generator With 20FT Container

1000kW (1250kVA) power plant integrates a Cummins QSK38-G2 engine with a Marathon/Stamford alternator in a 20ft ISO shipping container

Brand:
Chongqing Cummins
Item NO.:
ZC1250
Order(MOQ):
1
Payment:
T/T 30%, 70% Before shipment
Product Origin:
China
Shipping Port:
Xiamen, China
Lead Time：
3-4weeks
Weight：
13000

Inquire Now

Product categories

New Products

Product Details

Cummins Standby Power 1000KW 1250kVA Generator With 20FT Container

Designed for plug-and-play deployment, the system delivers prime/continuous power for remote industrial sites, data centers, and mission-critical applications.

⚙ Generator Set Specification

Prime Power	1144kva/915kw	Engine Brand	CHONGQING CUMMINS ENGINE COMPANY LTD.
Standby Power	1259kva/1007kw	Engine Model	QSK38-G2
Frequency/Speed	50hz/1500rpm, 60hz/1800rpm	Control Module(Standard)	Deepsea 6120 ( 7320,Deif,Comap,Smartgen Available)
Rated Power Factor	0.8	Rated Current	1152A
Standard Voltage	400V/230V	Circuit Breaker Capacity	2000A
Phases	3	Fuel Consumption @ 100% Load	235L/H

1000KW 1250KVA Cummins Genset

Cummins QSK38-G2 Diesel Engine Datasheet

Engine Component Specifications

The QSK38 is a V-12 cylinder engine with a 38-litre displacement. This Quantum series engine utilizes sophisticated electronics and premium engineering to provide outstanding performance levels, reliability and versatility for Standby, Prime and Continuous Power applications.

Engine Brand	Chongqing CUMMINS ENGINE Co.,LTD
Engine Model	QSK38-G2
No. of Cylinders	12
Cycle	4 Cycle,turbocharged, After-cooled
Compression ratio	14.2:1
Bore ×Stroke	159 x 159 mm
Displacement (L)	37.7L
Energy in power output (gross) Prime Power(kw)	989kw/1326kva
Energy in power output (gross) Standby Power(kw)	1096kw/1470kva
Fuel consumption at 100% full load (L/h)	235

Features

High pressure fuel pump, Modular Common Rail Fuel System (MCRS) and state of the art integrated electronic control system provide superior performance, efficiency and diagnostics. The electronic fuel pumps deliver up to 1600 bar injection pressure and eliminate mechanical linkage adjustments. The MCRS fuel system utilizes an electric priming pump which is integrated with the off-engine stage-1 fuel filter head and is controlled and powered by the engine ECM. The stage-2 fuel filters are mounted on-engine
CTT (Cummins Turbo Technologies) HX82/HX83/HE851 turbo-charging utilizes exhaust energy with greater efficiency for improved emissions and fuel consumption.
Low Temperature After-cooling - Two-pump Two-loop (2P2L)
Ferrous Cast Ductile Iron (FCD) Pistons - High strength design delivers superior durability.
G-Drive Integrated Design - Each component has been specifically developed and rigorously tested for G-Drive products, ensuring high performance, durability and reliability.
Service and Support - G-Drive products are backed by an uncompromising level of technical support and after sales service, delivered through a world class service

Stamford Brushless Alternator Specs

Standards

Stamford industrial alternators meet the requirements of BS EN 60034 and the relevant section of other international standards such as BS5000, VDE 0530, NEMA MG1-32, IEC34, CSA C22.2-100 and AS1359. Other standards and certifications can be considered on request.

Quality Assurance

Alternators are manufactured using production procedures having a quality assurance level to BS EN ISO 9001.

Stamford Alternator Model	S6L1D-G4
Prime Power	1076kw/1345kva
Excitation System
AVR Standard	MX341(PMG)
Voltage Regulation	± 1%
No Load Excitation Voltage (V)	11.9-11.2 V
Full Load Excitation Voltage (V)	58V
Electrical Data
Insulation System	H
Stator Winding	Double Layer Concentric
Winding Pitch	Two Thirds
Winding Leads	6
Winding Number	312
Number of Poles	4
IP Rating	IP23
RFI Suppression	EN 61000-6-2 & EN 61000-6-4, refer to factory for others
Waveform Distortion	NO LOAD < 1.5% NON-DISTORTING BALANCED LINEAR LOAD < 5.0%
Short Circuit Ratio	1/Xd
Steady State X/R Ratio	22.07
De-Rates By Altitude And Temperature	All values tabulated above are subject to the following reductions: - 3% for every 500 meters by which the operating altitude exceeds 1000 meters above mean sea level - 3% for every 5°C by which the operational ambient temperature exceeds 40°C - For any other operating conditions impacting the cooling circuit please refer to applications Note: Requirement for operating in an ambient exceeding 60°C and altitude exceeding 4000 meters must be referred to applications.

Advanced Control Panel

(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)

Digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.

	Deepsea 6120	Deepsea 7320
Display Language	18	18
USB communication	√	√
CAN port	√	√
Event Log	100	250
Overspeed protection	√	√
Low oil pressure protection	√	√
High coolant temperature protection	√	√
Low fuel level alarm	√	√

Controller 7320 For Electric Injection Engine

Circuit Breaker Specification

Manufacturer	Delixi/Chit/Schneider/ABB
Capacity	2000A
Pole	3P

Starting Battery Specification

Battery Voltage	12V
Battery Capacity	120A
Battery type	Free maintenance, sealed lead-acid type
Battery Quantities	4 Pcs

Standard Supply Scope

① Auto Control Panel	② Main Circuit Breaker
③ Cooling Radiator	④ 8 hours Separately Daily Fuel Tank
⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set	⑥ Starting Motor
⑦ Exhaust Silencer	⑧ Starting Batter
⑨ Float Battery Charger	⑩ Flange

Optional Supply Scope

① ATS	② Fuel and water separator
③ Auto Fuel Pump	④ External daily fuel tank
⑤ Elec.coolant Heater	⑥ Oil drain Pump
⑦Trailer & Silent Canopy	⑧ Synchronization System

Warranty

1. Rigorous Pre-Shipment Testing

Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements

2. Comprehensive Warranty Coverage

Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)

Free Parts Replacement: During warranty period

Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost

24/7 Response: Immediate troubleshooting upon notification

3. Global OEM Service Network

For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support

Silent Type Generator Canopy Photo

Standard 20ft Generator Set 1250kva

Related Tags : 1250kVA Cummins Diesel Generator Cummins QSK38-G2 Generator set Containerized 1250kVA Generator 1000KW 20FT Silent Generator 1MW Diesel Generator QSK38-G2 Engine Specifications 1250kVA 20ft ISO Container Generator 1.25MVA 480V 60Hz Prime Power Generator
