KTA50-G3 with S6L1D-H4 | 1000kW 1250kVA Prime Power Diesel Generator Set, 50Hz 400V Three Phase

This ZTA POWER heavy-duty prime power diesel generator set delivers continuous 1000kW (1250kVA) stable output at 50Hz, 400V three-phase power. Built for long-running continuous operation, this large industrial genset is widely used for data centers, mining sites, oil & gas projects, remote industrial plants, large commercial parks and hybrid power stations.

Unlike standby generators that only work for emergency backup, our prime power generator can run continuously for long hours as the main grid power source. It adopts Cummins KTA50-G3 diesel engine matched with S6L1D-H4 brushless alternator, with robust mechanical structure, low fuel consumption and stable voltage performance.

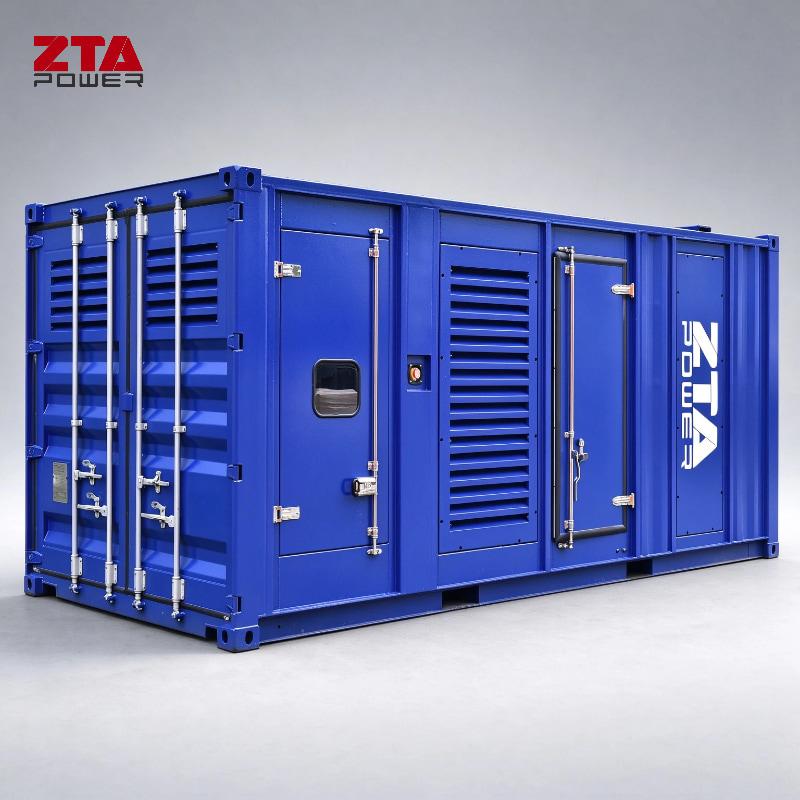

You can also check our Containerized Silent Diesel Generator for alternative heavy-duty power solutions.

1. Full Technical Specifications Table

2. Diesel Engine Introduction: Cummins KTA50-G3

The KTA50-G3 is a world-class heavy-duty 16-cylinder V-type diesel engine, 4-stroke, turbocharged with low-temperature aftercooled design, displacement 50.3L.

· Cast iron cylinder block for long service life, strong load capacity

· PT fuel injection system, stable fuel delivery, optimized fuel consumption under full load

· 24V starting system, reliable cold start performance

· Designed for continuous prime power running, suitable for non-stop industrial operation

· Mature global after-sales network and easy spare parts supply worldwide

3. Alternator Introduction: S6L1D-H4

S6L1D-H4 is a high-efficiency brushless synchronous alternator specially matched for large prime power diesel generators.

· 100% copper winding, low temperature rise, long working life

· Fast voltage regulation, small voltage fluctuation under variable load

· IP23 protection grade, dust & moisture resistance

· Wide adaptability for 50Hz 400V three-phase industrial power requirement

· Low harmonic distortion, safe for sensitive electrical equipment

4. Generator Set Assembly Process & Workflow

ZTA POWER strictly follows standardized assembly procedures for each large power genset:

1. Base frame fabrication: Cutting, bending, welding and anti-rust painting for steel base frame.

2. Engine & alternator mounting: Install engine and alternator on base with anti-vibration dampers, align coupling precisely.

3. Auxiliary system assembly: Fit fuel system, cooling radiator, exhaust pipe, air filter and battery pack.

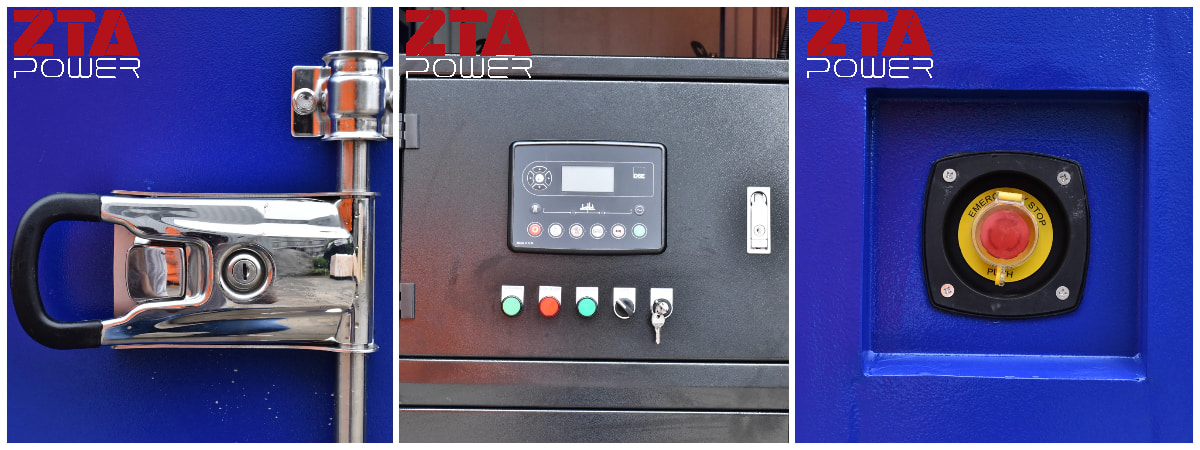

4. Control cabinet wiring: Install controller, protection modules, sensor cables and output terminals.

5. Pre-commissioning inspection: Check all pipeline connections, wire circuits and fluid leakage.

6. Full load testing: Run the genset under 100% simulated load for performance verification, record voltage, frequency, fuel consumption and temperature data.

7. Final QC inspection: Appearance, marking, accessories and document review before packing.

5. ZTA POWER Factory Production Equipment & Workflow

Our factory owns complete CNC cutting, bending, welding, painting and dedicated load test benches for large diesel generators. All production links are controlled by ISO quality management system.

We have a dedicated engineering team for power system design, able to customize open type, silent canopy type or container type gensets, also hybrid power station solutions for global clients.

6. Packaging, Dimension & Container Shipment Details

For this 1000kW prime power generator set:

· Open type unit: Wrapped with waterproof stretch film, fixed on heavy-duty steel pallet.

· Silent / container version: Direct loading into 40ft HQ container after waterproof wrapping.

· Export marks: Shipping marks, lifting marks, moisture-proof & shock warning signs on package surface.

· Complete documents: Test report, manual, certificate and packing list supplied together for customs clearance.

7. Our Factory Strength

ZTA POWER is a professional manufacturer of diesel generators, ATS panels and hybrid power stations in China. We have large production workshop, independent test laboratory, and rich export experience for global industrial power projects. Our products are widely exported to North America, Southeast Asia, Middle East, Africa and Latin America.

We support OEM & ODM customization, from single generator set to full containerized power station solutions.

8. FAQ | Frequently Asked Questions

Q1: What is the difference between prime power and standby power?

A: Prime power (PRP) means the generator can run continuously for long-term use as main power supply. Standby power is only for emergency backup for limited running hours. This model is 1000kW prime power for continuous operation.

Q2: Can I get 50Hz 400V three phase output for this genset?

A: Yes, this unit is built as 50Hz, 400V three phase as standard specification.

Q3: Is ATS automatic transfer switch optional?

A: Yes, ATS can be installed, to realize auto start/stop when grid power fails and recovers.

Q4: What about the warranty period?

A: Standard warranty is 1 year or 1200 running hours, whichever comes first. Lifelong technical support and spare parts supply available.

Q5: Can you make containerized silent version of this 1000kW genset?

A: Yes, we can customize container type, soundproof canopy, add fuel tank and remote monitoring system according to your project demand.

Q6: What’s the lead time for this KTA50-G3 generator set?

A: Normally 25–35 working days after deposit, depends on configuration.
