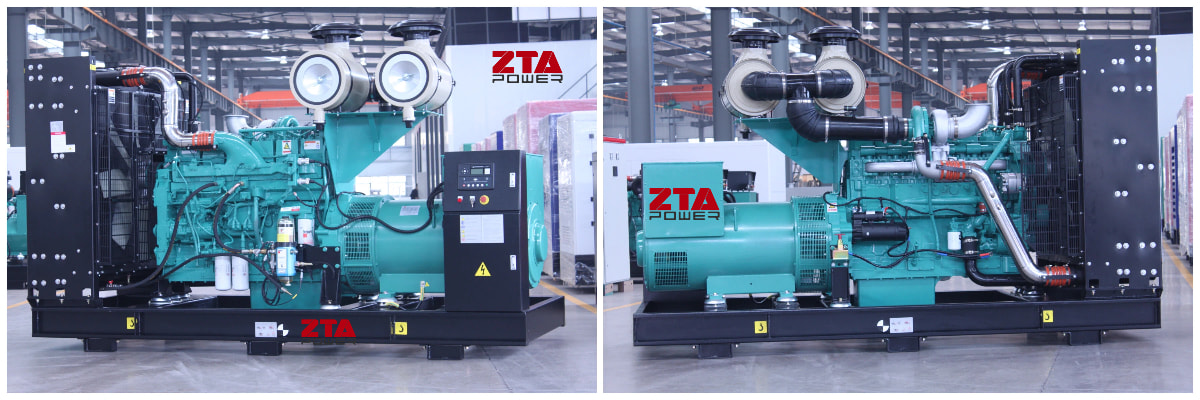

520kW 650kVA Output Cummins QSK19-G4 Diesel Generator Set

520kW / 650kVA Output Cummins QSK19-G4 Diesel Generator Set

520kW / 650kVA Output: Engineered for demanding industrial and standby applications.
- Cummins QSK19-G4 Engine: Guarantees legendary durability, fuel efficiency, and easy maintenance.
- Versatile Power Solution: An ideal choice for mining, marine, construction, and large facilities.
- Reliable Performance: Built to provide critical power continuity in the toughest conditions

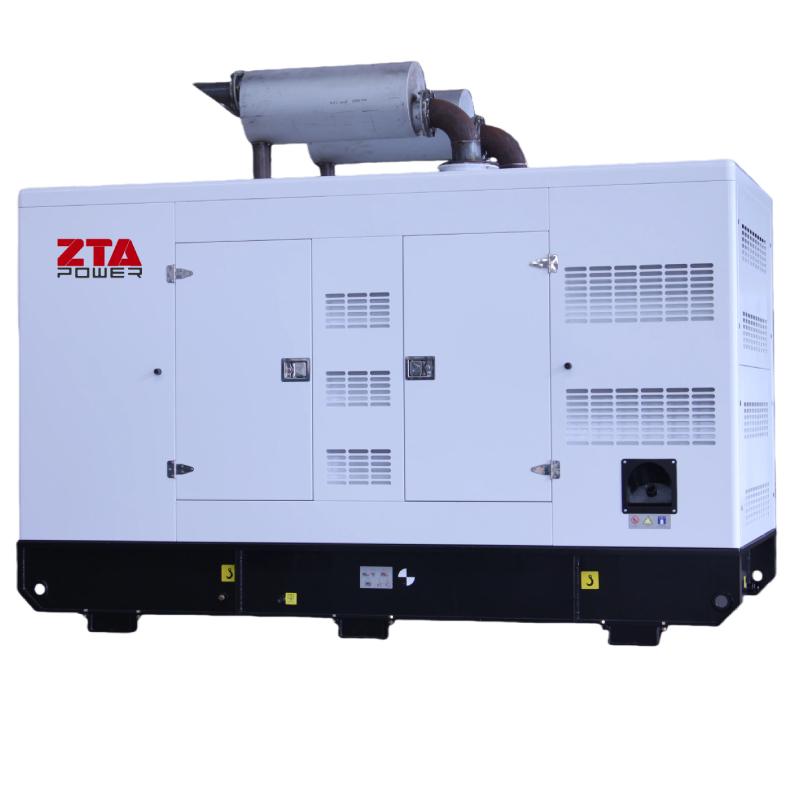

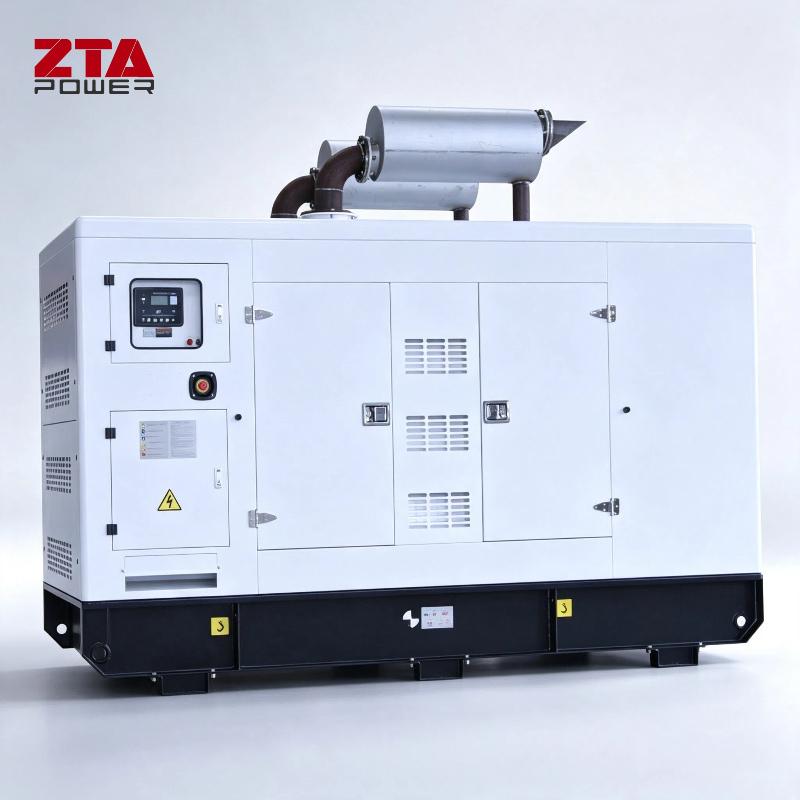

General Characteristics of the Soundproofed Enclosed Generator Set

Diesel Engine: It shall be at least 6 cylinders, turbocharged type, developing its power at 1,500 rpm, and capable of supporting a 10% overload under the following climatic conditions:

Altitude:

Maximum temperature: 45°C,

Maximum humidity: 100%

The lubrication of the entire engine, with the exception of the water pump and possibly the injection pump, shall be ensured automatically by a gear pump.

Oil Filters: of the "full flow" type shall be arranged in series at the start of the lubrication circuit.

Cooling Circuit: the oil discharged by the lubrication pump will pass through the refrigeration system, which shall be protected from possible cold overpressures by an automatic bypass system.

Cooling Water Pump: the cooling shall be of the radiator type. A centrifugal pump shall be arranged at the front on the timing gear case.

Cooling of the turbocharging air shall be provided to lower the supply air temperature.

Injection Pump: One or two monobloc injection pumps shall be arranged laterally. The pump flow rate shall be adjusted by the rotation of the plungers controlled by a rack connected to the governor.

Injectors: The injectors shall be easily removable. The connection of the fuel supply and leak-off pipes to the injector holder shall be done outside the valve covers to prevent dilution of the lubricating oil by diesel in case of pipe rupture or poor tightening of a connection.

Safety Devices:

- An overspeed governor shall cut off the fuel supply to the injection pumps in case of diesel engine runaway.

- Two pressure gauge contacts, mounted respectively on the engine water discharge manifold and on the lubricating oil manifold, allowing detection of lack of oil or water pressure.

Turbocharging: Shall be ensured by an exhaust gas turbocharger. The injection rate shall be adjusted so that there is no significant increase in fuel pressure.

A crossover of the intake and exhaust valves shall be provided to allow scavenging of the chamber so as not to increase thermal stresses.

Accessories: The engine shall be complete with all its accessories, injection pump, injectors, intake and exhaust manifolds, filters, water pumps, oil pump, turbo-blower, air cooler, fuel filters, governor.

Governor: Shall be electronic, sensitive to speed variations and load sensitive, with an adjustable droop adjustment device. Specially adapted for generator set regulation, it shall include:

- A faster, slower motor for speed adjustment, which must be remotely controlled,

A remote shutdown system

Characteristics and Performance

Generator Set Specification

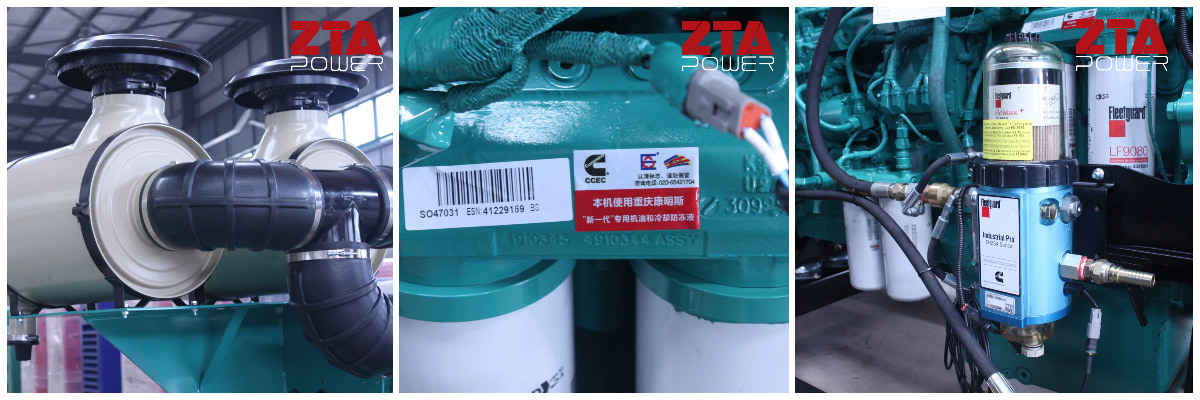

Cummins QSK19-G4 Diesel Engine Datasheet

Engine for 630 KVA Set

• Simplified Maintenance – 500-hour service intervals with front-access components
• Cummins Global Support – 2,000+ service locations across 190 countries

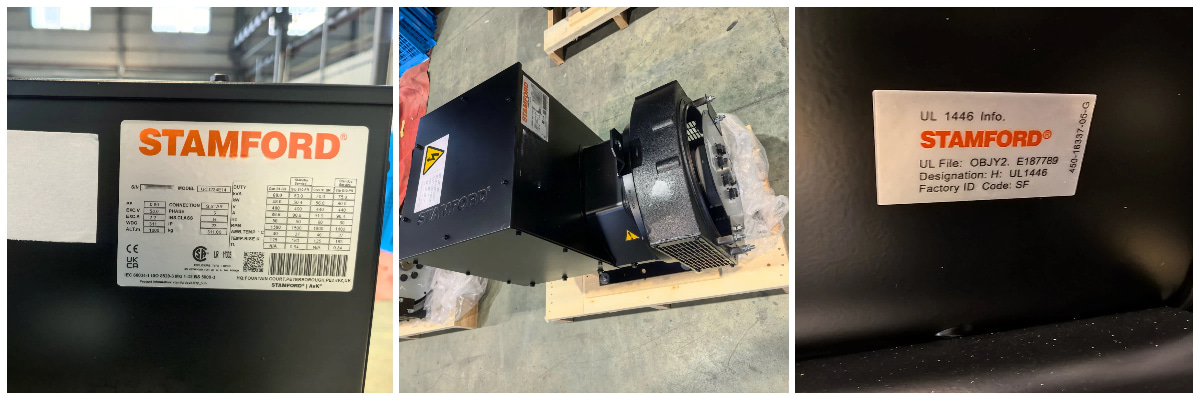

Stamford  Alternator Specs



The alternator shall be of the brushless type, IP 23, self-ventilated, equipped with a flange bearing, it shall have Class H insulation capable of withstanding a temperature rise of 100°C above ambient temperature.

The exciter, mounted on the shaft end, shall be of the rotating diode type, brushless.

A static regulator allowing maintenance of the voltage within limits of + or - 5% maximum shall be supplied, mounted in the control and monitoring panel.



Stamford Alternator Model	S5L1S-F4
Standards	designed, built, and tested to the quality assurance level of ISO9001 and meet the requirements of IEC 60034-1 and ISO8528-3.
AVR Standard	Included
Voltage Available	50HZ:  415/240V,400/230V, 380/220V, 220/127V, 60HZ, 480/277V, 220/127V
Insulation Class	H
Number of Wires	6
Pole	4
Protection	IP 23
Altitude	≤1000 m
Coupling	Star with neutral brought out.
Voltage Regulation	± 1%
Total Harmonic THD (**) in no-load	< 3.5 % according to C.E.I.
Total Harmonic THD (**) in linear load	< 5 % according to C.E.I.
Waveform NEMA = TIF (**)	< 50
Waveform I.E.C. = THF (**)	< 2%
Optional	- Filters on air inlet: derating 5%  - Filters on air inlet and air outlet (IP 44): derating 10%  - Winding protections for harsh environments and relative humidity greater than 95%  - Space heaters  - Thermal protection for stator windings  - Steel terminal box





Chassis:The chassis shall be common to the diesel engine, the alternator, the drive motor and the daily tank integrated into the set.

It shall be composed of steel beams linked together by welded mechanical elements with lifting points and vibration dampers.

Engine and alternator shall be connected by a flexible coupling. Protective grilles shall be provided on the radiator fan, the charging alternator and the engine-alternator coupling.

Safety Devices : The set must be equipped with all the usual safety devices for this equipment, notably:

lack of pre-lubrication,

lack of oil pressure (2 thresholds),

water temperature (2 thresholds),

cooling control,

oil temperature,

overspeed.



Safety and Control Equipment

A fuel tank, minimum capacity 10 hours of operation, integrated into the base fixing chassis of the set, equipped with accessories allowing the adaptation of an automatic filling system, and accessories for diesel level control and remote signaling.

- The cooling of the set.

- The exhaust gas circuit.

- All devices, components and accessories necessary for the proper functioning of the set.

- The fixing and connections of all main and secondary distribution cables necessary for the installation of the set and not provided for in other chapters.

The automatic control and command panel is integrated into the set and comprising:



The automatic start/stop device with three-phase mains detection system, start on external command, protection against micro-interruptions, protection against overspeeds, engine shutdown delay.

The ignition key switch ON/OFF

7-position voltmeter switch

 Lamp test button

Emergency stop



Advanced Control Panel

The list of equipment and functions given below is not exhaustive.

The equipment must be supplied in working order and fit for the function for which it is intended; it shall allow:

-   Automatic starting,

-   Manual starting,

-   Test position,

-   Complete stop in case of intervention on the set,

-   Monitoring and control of safety functions:

 -   Signalling of faults, optical and acoustic with optical memory for no-start, lack of oil pressure, lack of pre-lubrication, excessive water temperature, excessive oil temperature, overspeed. Failure to start on the first attempt must be signalled so that a check can take place,

 -   Set running signalling: alternator output, normally closed circuit breaker, emergency closed circuit breaker, presence of mains voltage, alternator overload, lack of fuel,

 -   Alternator protection: automatic engine stop,

 -   Remote signalling by dry contacts of any polarity.

-   Set in automatic operation,

-   Set in manual operation,

-   Set in fault,

-   Set out of service:



Control and measurement instruments:

    -   Voltmeter, ammeter, frequency meter, hour counter, water and temperature indicators, battery voltmeter, oil pressure indicator, diesel gauge

-   Safety and operation indicators:

    -   Lack of oil pressure, engine temperature fault, charging alternator fault, emergency stop indicator light, low diesel level, presence of mains voltage

    -   Alternator output and voltage, no-start indicator

    -   The four-pole circuit breaker for set protection integrated into the control and command panel with auxiliary contacts for alarm reporting.

    -   The static battery charger.

    -   The overall audible alarm with provision of a contact for remote reporting of the overall alarm.

    -   The compact soundproofing enclosure LWA 95 with easy access for maintenance, compliant with European standards.

    -   Engine water and oil preheating devices.

    -   Anti-condensation resistance on the alternator.

    -   The silencers and soundproofing accessories.

    -   The exhaust stack. The stack must extend at least 1m above the parapet of the building terrace.

-   The system for grouping alarms from the set, the daily tank and the storage tank with provision of a dry contact for remote reporting of the overall alarm.

    -   A contact for remote stop command of the set must be provided in the control room.

    -   An emergency stop button placed near the access door including wiring.

    -   The preliminary tests prior to acceptance, including the provision of the necessary test equipment and specialized personnel.



	Deepsea 6120	Deepsea 7320
Display Language	18	18
Languages can be stored in the module	2	7
RS232 port	-（Not available)	√
RS485 port	■*(*indicates that DSE857 communication module needs to be added.)	√
Ethernet port	■**(**indicates that DSE855 communication module needs to be added.)	■**(**indicates that DSE855 communication module needs to be added.)
Short circuit protection	√	√
Negative phase sequence protection	√	√
Earth fault protection	-（Not available)	√





Metal work

All metalwork shall be hot-dip galvanized after machining and shall include:

-   Doors with panic lock,

-   The angles and striated plates to be placed on the gutters,

-   All supports and accessories necessary for the installation of the equipment,

-   The louvered panels for air intake and discharge



Circuit Breaker Specification

Manufacturer	Delixi/Chit/Schneider/ABB
Capacity	1250A
Pole	3P

Starting Battery Specification

Standard Supply Scope

Optional Supply Scope

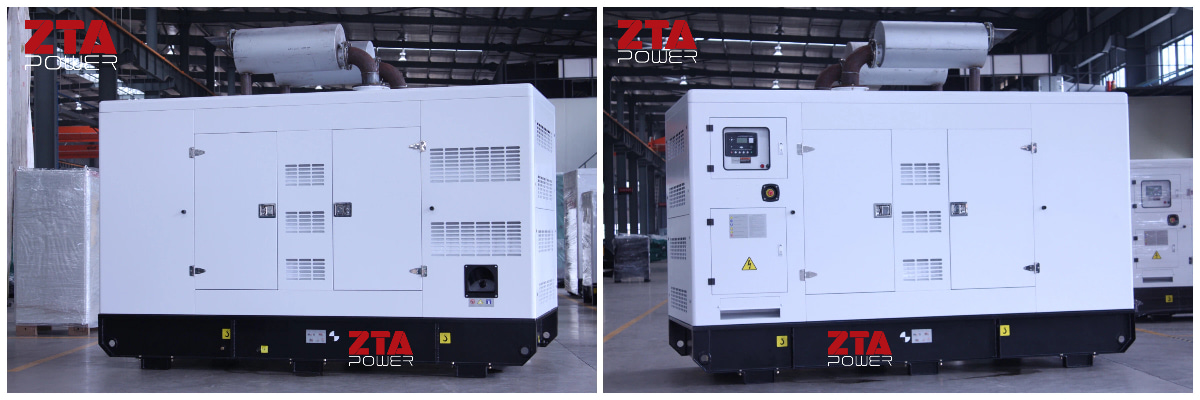

Silent Canopy Photo
