The Impact Of Unqualified Cooling Water On Diesel Generators And Improvement Measures

Impact of Poor Coolant Quality on Diesel Generators: Prevention & Solutions

Introduction

Coolant quality is the “lifeline” of reliable diesel generator operation. The short-term savings from neglecting coolant maintenance are far outweighed by the massive costs of engine overhauls, efficiency losses, and unexpected downtime. Treating coolant management with the same importance as oil management is key to ensuring long generator life, high efficiency, and low operating costs.

In this comprehensive guide, we’ll explore the dangers of poor coolant quality, the essential water quality requirements, and proven solutions to protect your diesel generator investment.

The Hidden Dangers of Poor Coolant Quality

1. Scaling (Mineral Deposits)

Root Cause: Using untreated hard water containing high concentrations of calcium and magnesium ions. When water temperature rises, these minerals precipitate and form hard scale deposits on metal surfaces including cylinder liners, cylinder heads, and radiator surfaces.

Serious Consequences:

Reduced Heat Transfer:

Scale has extremely poor thermal conductivity (only 1/20 to 1/50 of metal), preventing efficient heat removal and causing localized overheating

Engine Overheating:

Severe cases can result in cracked cylinder heads, distorted cylinder liners, and piston seizure—catastrophic failures that require complete engine rebuilds

Coolant Passage Blockage:

Scale buildup narrows coolant passages or completely blocks them, disrupting proper coolant circulation

2. Corrosion

Root Cause:Using ordinary tap water or low-quality coolant. Chloride ions, sulfate ions, and dissolved oxygen attack metals including steel, aluminum, copper, and solder.

Serious Consequences:

•• Component Damage:

Corrosion can perforate cylinder liners, engine blocks, and radiator tubes, causing coolant leaks••

Contamination Buildup:

Corrosion products form rust and copper oxide deposits that circulate with the coolant, accelerating wear and causing blockages

•• Performance Degradation:

Corrosion roughens metal surfaces, reducing heat exchange efficiency

3. Cavitation (Pitting/Cylinder Liner Erosion)

Root Cause:

During diesel engine operation, high-frequency vibration of cylinder liners creates localized vacuum in the adjacent coolant, forming bubbles. When these bubbles collapse, they generate extreme shock pressures (thousands of atmospheres). Without proper corrosion inhibitors, this impact destroys the protective layer on the outer cylinder liner surface.

Serious Consequences:

Cylinder Liner Perforation:Dense pitting forms on the outer surface (especially on the thrust side), eventually allowing coolant to leak into the oil pan or combustion chamber—a unique and severe form of damage specific to diesel engines caused by coolant quality issues

4. Galvanic (Electrolytic) Corrosion

Root Cause:

Impurities and minerals in coolant make it conductive. Different metals (aluminum cylinder heads, cast iron blocks, copper radiators) create galvanic cells in conductive liquid, generating electrical current that accelerates corrosion of the less noble metal (typically aluminum).

Serious Consequences:

Rapid Aluminum Component Failure:

Causes rapid perforation and failure of aluminum parts including cylinder heads and water pump impellers

5. Water Pump and Seal Damage

Root Cause:

Poor-quality coolant lacks protection for rubber seals (O-rings, mechanical seals) and may cause hardening, swelling, or degradation.

Serious Consequences:

•• Leakage Issues:

Results in water pump leaks and hose connection leaks requiring frequent maintenance

Diesel Generator Coolant Quality Requirements

Coolant quality significantly impacts diesel generator performance and service life. Poor-quality coolant causes scale and deposit buildup in cylinder jackets, deteriorating heat transfer properties, reducing cooling effectiveness, causing uneven heating, and potentially cracking cylinder walls.

Key Water Quality Standards

The ideal coolant base is deionized water or distilled water, which maximizes removal of minerals and impurities—specifically calcium and magnesium ions that contribute to water “hardness.”

These requirements directly combat the five major hazards discussed above:

Why These Standards Matter

These requirements directly combat the five major hazards

Parameter	Requirement	Standard	Risks of Exceeding Limits
pH Level	6.5 – 9.5	Ideal: 8.5 – 10.5	Low pH accelerates corrosion; high pH (>11) may harm aluminum components
Organic Content	≤ 25 mg/L		Promotes biological growth and deposits
Suspended Solids	≤ 25 mg/L		Causes abrasion and blockage
Temporary Hardness	≤ 10° (German degrees)		Primary cause of scaling
Oil Content	≤ 5 mg/L		Reduces heat transfer, promotes deposits
Chlorides	< 50 ppm		Aggressive corrosion promoter, especially dangerous for stainless steel welds and aluminum
Sulfates	< 100 ppm		Forms calcium sulfate scale (gypsum), extremely difficult to remove
Total Hardness	< 100 ppm		Prevents calcium carbonate and sulfate scale formation

These requirements directly combat the five major hazards discussed above:

Why These Standards Matter

These requirements directly combat the five major hazards discussed above:

Low Hardness → Prevents Scaling:

Ensures clean cooling system internals, especially cylinder liner and head water jackets and radiator tube interiors, maintaining excellent heat transfer

Low Chlorides/Sulfates → Prevents Corrosion:

Protects multiple metals (steel, cast iron, aluminum, copper, solder) from ionic corrosion and pitting

Proper pH → Maintains Inhibitor Effectiveness:

Specialized coolant inhibitors work most effectively within specific pH ranges to form protective films on metal surfaces

Coolant Quality Improvement Methods

When diesel generator coolant doesn’t meet these requirements, water purification and softening treatment must be implemented.

Treatment Methods by Water Type

1. High Turbidity Water:

Use sedimentation and filtration equipment to reduce suspended solids to below 25 mg/L.

2. Acidic Water:

Preferably select source water with pH > 6.5 during project planning. While adding alkaline neutralizers can reduce corrosion, this approach is costly and uneconomical for long-term operation.

3. High Temporary Hardness Water:

Requires water softening treatment measures.

Water Softening Equipment

Multiple softening methods exist: ion exchange softening, lime softening, lime-soda softening, and magnetic water conditioners. Magnetic water conditioners are currently the most widely adopted due to their simple construction, easy manufacturing, low investment, and convenient operation.

How Magnetic Water Conditioners Work

Water flows through a magnetic field, intersecting magnetic flux lines. Under magnetic force, calcium and magnesium salts cannot form hard scale deposits. Instead, they create loose scale and sludge that flush out with the water flow.

Two Types:

•• Permanent Magnet Conditioners:Use permanent magnets (widely adopted)

•• Electromagnetic Conditioners:Use induced magnetic fields from electric current (rarely used)Installation Requirements

•• Location:Install on the pump discharge line, approximately 1 meter from the diesel generator so treated water enters immediately without intermediate tanks or exposure to air

•• Orientation:Must be installed vertically and completely filled with water, with flow directionbottom to top

•• Magnetic Filter:Install upstream to prevent iron and iron oxide particles from entering the conditioner

•• Vibration Protection:Avoid vibration or impact during installation and maintenance to prevent magnet fracture

•• Piping:Use plastic or rubber hose connections to prevent stray currents in steel pipes from weakening magnetic field strength

Operating Requirements

•• Existing Scale Equipment:Blow down every 3-4 hours for approximately 6 seconds

•• Blowdown Pipe:Minimum 50mm diameter•• Cleaning:Clean conditioner and magnetic filter every 3-4 months

Temperature Control:
Maintain stable inlet water temperature. Permanent magnets operate best at 40-80°C—water temperature should not exceed 70°C.

Flow Rate:
Maintain design flow velocity (typically 0.5-1.0 m/s through the 3-4mm water gap). Too slow or too fast reduces magnetic treatment effectiveness.

Summary & Best Practices

Diesel generator coolant quality requirements can be summarized as:

Use softened water (deionized/distilled) as the base, strictly limit chlorides, hardness, and sulfates.

Whenever possible, use manufacturer-recommended diesel engine coolant with proper maintenance schedules. Following these requirements is a cost-effective investment that ensures your diesel generator delivers reliable power when needed and achieves maximum service life.

Always consult your specific generator brand and model’s official operation and maintenance manual for authoritative guidance.

Frequently Asked Questions (FAQ)

Q: Can I use tap water in my diesel generator?
A: No. Tap water contains minerals that cause scaling and corrosion. Always use deionized, distilled, or properly softened water.

Q: How often should I replace coolant?
A: Follow manufacturer recommendations—typically every 1-2 years or 2,000-3,000 operating hours. Test coolant quality regularly.

Q: What are signs of poor coolant quality?
A: Overheating, coolant discoloration, visible deposits, frequent topping off, white exhaust smoke (coolant burning), or oil contamination.

Q: Is distilled water better than deionized water?
A: Both are excellent choices. Distilled water removes minerals through evaporation; deionized water uses ion exchange. Either exceeds requirements.

Q: Can I mix different coolant types?
A: Never mix different coolant technologies (e.g., conventional with OAT or HOAT). This causes chemical reactions, reduced protection, and potential sludge formation.

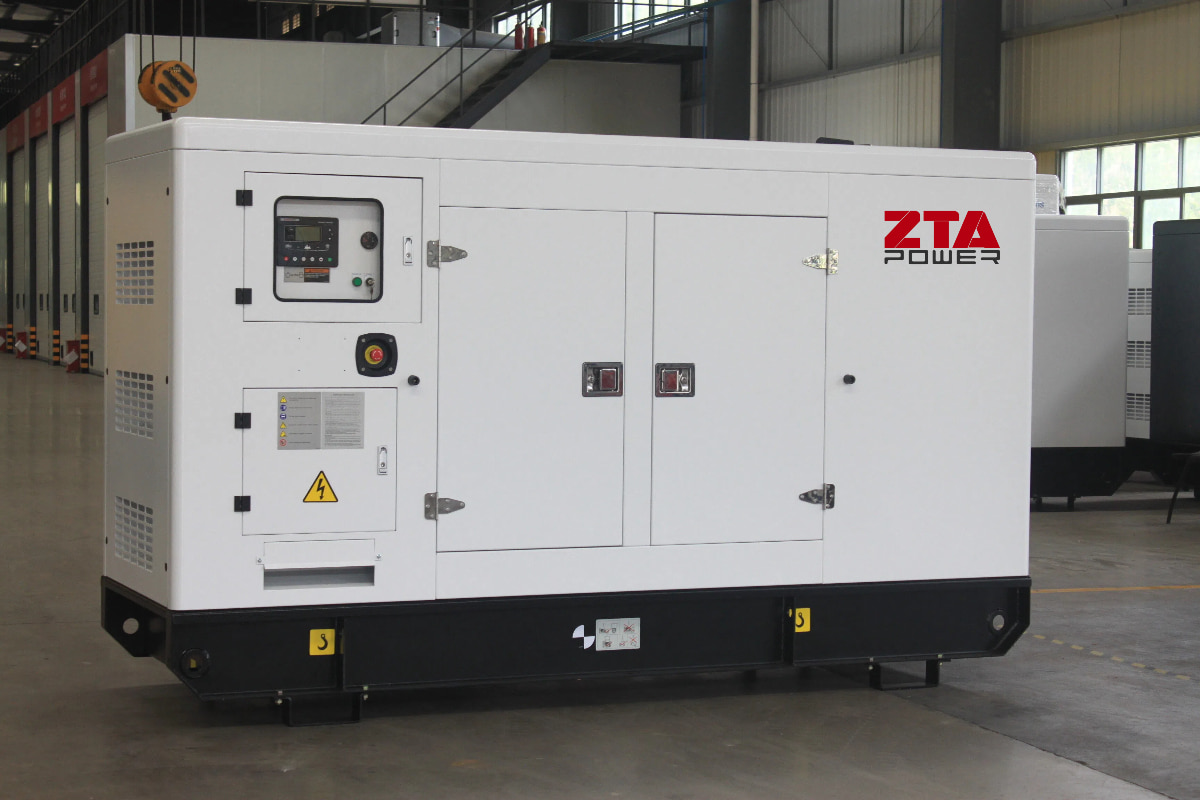

Diesel Genset Industry Use
