What is the Function and Blockage Impact of Small Holes on Cummins Generator?

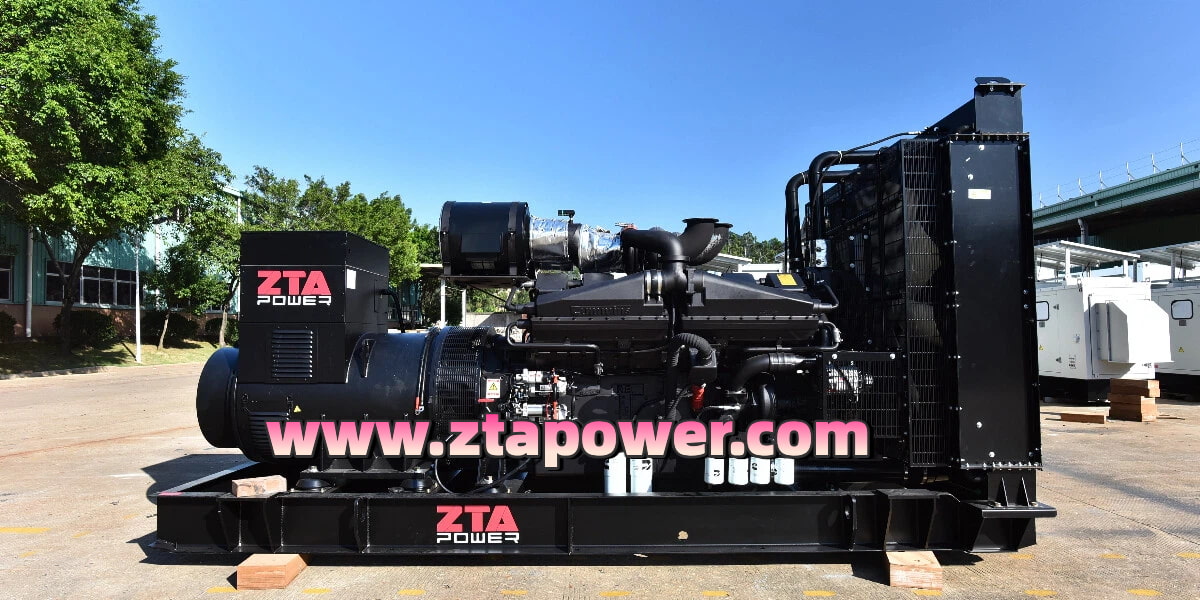

Function and Blockage Impact of Small Holes on Cummins Generator Set Engine Body

Abstract: Diesel generator sets feature many crucial small holes or ventilation ports. These are designed to balance pressure, discharge liquids or gases, and ensure the normal operation of various components. Blockage of these holes can lead to abnormal pressure, fluid leakage, component failure, and even safety hazards. Although inconspicuous, the small holes on Cummins generator sets play a vital role in their proper functioning. To ensure the long-term operational safety of the generator set, these holes must be inspected and maintained regularly.

1. Crankcase Breather Hole (Oil Pan Vent Hole)

    (1) Location: Top or side of the generator set's oil pan

    (2) Purpose: Balances internal and external air pressure in the oil pan, preventing oil leaks or seal damage caused by excessive pressure.

    (3) Blockage Consequences: Increased internal pressure leading to oil leaks from seals, oil pan gasket damage, or even seal failure.

2. Fuel Tank Vent Hole

     (1) Function: Balances internal and external air pressure in the fuel tank, preventing vacuum that can cause poor fuel supply.

     (2) Blockage Consequences: Difficulty for the injection pump to draw fuel, causing the generator set to stall or experience lack of power.

3. Fuel Filter Vent/Bypass Hole

      (1) Function: Releases air from the fuel system (venting) or allows fuel to bypass a clogged filter element (bypass).

     (2) Blockage Consequences: Air locks (vapor lock) in the generator set fuel system , causing failure to start or unstable operation.

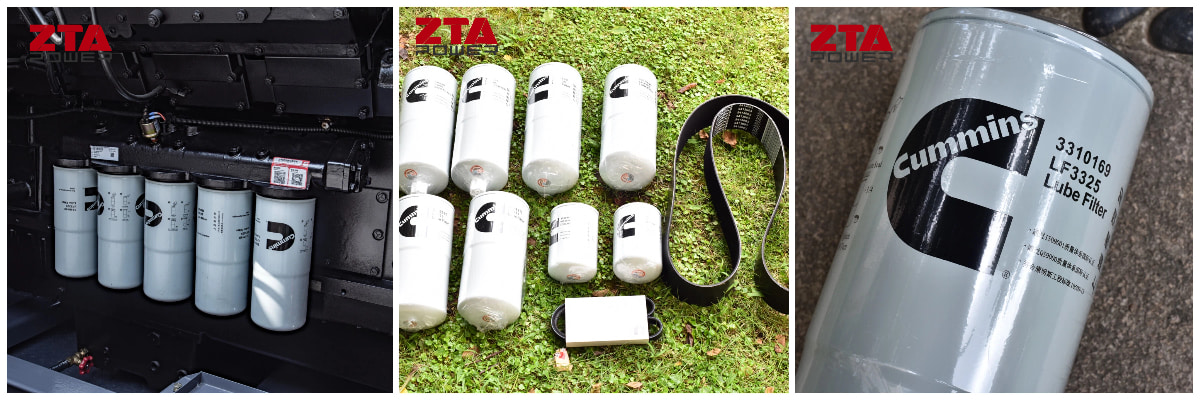

4. Oil Filter Bypass Hole

     (1) Function: Allows oil to bypass the filter element if it becomes clogged, ensuring continued oil circulation.

     (2) Blockage Consequences: Restricted oil circulation, leading to poor lubrication, generator set overheating, or increased wear.

5. Water Pump Weep Hole

      (1) Location: Typically at the bottom of the water pump housing.

     (2) Function: Drains small amounts of leaking coolant, preventing fluid from entering the bearing assembly.

     (3) Blockage Consequences: Accumulation of leaked fluid, leading to corrosion or failure of the Diesel Generator water pump bearing.

6. Exhaust Pipe Drain Hole

      (1) Function: Drains condensate water produced during combustion, preventing corrosion or freezing.

      (2) Blockage Consequences: Accumulated water corrodes the exhaust pipe; freezing in winter can block the exhaust passage.

7. Battery Vent Cap/Vent Hole

     (1) Location: On the battery cover.

     (2) Function: Vents hydrogen gas produced during charging, preventing excessive internal pressure.

     (3) Blockage Consequences: Battery swelling, potential rupture; accumulated hydrogen gas may cause an explosion (especially in confined spaces).

8. Injection Pump Return Fuel Hole

       (1) Function: Allows excess fuel to return to the tank, maintaining stable fuel pressure.

       (2) Blockage Consequences: Abnormal fuel pressure, leading to poor injector operation, engine vibration, or lack of power.

9. Sensor Reference Hole (e.g., Barometric Pressure Sensor)

       (1) Function: Ensures accurate sensor measurement (e.g., for atmospheric pressure compensation).

       (2) Blockage Consequences: Sensor data inaccuracy, causing the control system to make incorrect judgments.

10. Air Filter Maintenance Indicator/Vent Hole

       (1) Function: Connects to the maintenance indicator or allows air passage.

       (2) Blockage Consequences: Clogged air filter, insufficient intake air, resulting in reduced generator set output power.

Maintenance and Prevention Methods

I. Regular Inspection

       Visual Inspection: Before starting or after shutdown each time, quickly check if small holes are blocked by oil sludge, dust, insects, or foreign objects.

       Key Inspection Points: Crankcase breather hole, fuel tank vent hole, oil filter bypass hole, battery vent cap, exhaust pipe drain hole.

II. Cleaning Methods

       ① Method: Use compressed air or fine iron wire to gently clear blocked holes (avoid damaging internal structures). Remove oil sludge and dust with a clean cloth or soft brush. For fuel and oil system holes, carburetor cleaner can be used for spraying and cleaning.

       ② Frequency: Inspect every 50 hours (more frequently in high-dust environments); perform deep cleaning every 500 hours or every six months.

III. Preventive Measures

       ① Install Protective Covers: Fit dust covers or small air filters on ventilation holes prone to dust ingress (e.g., crankcase breather hole).

       ② Prevent Oil Buildup: Regularly clean oil sludge from the generator set surface to prevent it from sealing small holes.

       ③ Environmental Adaptations:

           Cold Environments: Check if the exhaust pipe drain hole is frozen blocked; use hot water to thaw if necessary.

           Water Pump Weep Hole: When shutting down for long periods, drain all coolant to prevent corrosion blockages.

       ④ Pest Prevention:

           Metal Mesh Protection: Install fine metal mesh over ventilation holes to prevent insects or small animals from entering.

           Scheduled Inspection: Especially in damp or field environments, prevent spiders, ants, etc., from nesting and causing blockages.

IV. Special Component Maintenance Tips

       (1) Crankcase Breather Hole:

           Check: During operation, engine oil should not spray from the breather hole; otherwise, it may indicate piston ring wear or high pressure.

           Maintenance: If large amounts of oil vapor are observed, check for oil burning or abnormal crankcase pressure.

       (2) Fuel System Vents:

           Fuel Tank Vent: Ensure the fuel tank cap vents properly to prevent fuel supply issues due to vacuum.

           Fuel Filter Vent Hole: After replacing the filter, manually bleed air to prevent air locks.

       (3) Battery Vent Cap:

           Check: Ensure the vent is clear during charging to prevent hydrogen accumulation and potential explosion.

       (4) Injection Pump Return Fuel Hole: Check the return fuel line - it should be clear, without kinks or blockages, otherwise it may cause abnormal injection pressure.

V. Maintenance Records and Troubleshooting

       (1) Record Keeping: Record the condition of small holes after each cleaning or inspection for problem tracking.

       (2) Handling Abnormalities: If a specific hole frequently blocks, find and address the root cause (e.g., excessive oil, contaminated fuel). If blockage causes equipment issues (e.g., black smoke, power loss), clear it before operation.

VI. Safety Precautions

       (1) Never Block Holes: Do not seal small holes with tape, bolts, etc., under any circumstances, as this may lead to equipment failure or safety risks.

       (2) Fire and Explosion Prevention: When servicing holes related to fuel or batteries, keep away from open flames and avoid static electricity.

       (3) Use Correct Tools: Avoid using sharp objects for forceful clearing to prevent damage to precision components.

Conclusion

Maintaining the small holes on a Cummins generator set may seem simple, but it is crucial for component lifespan and reliability. Blocking these holes can cause cascading failures, ranging from performance issues to equipment damage or safety hazards. Through regular inspection, cleaning, and protection, damage caused by blocked holes can be effectively prevented, ensuring the generator set operates stably during critical times. It is recommended to develop a maintenance plan based on the equipment manual and train operators in correct maintenance procedures.
