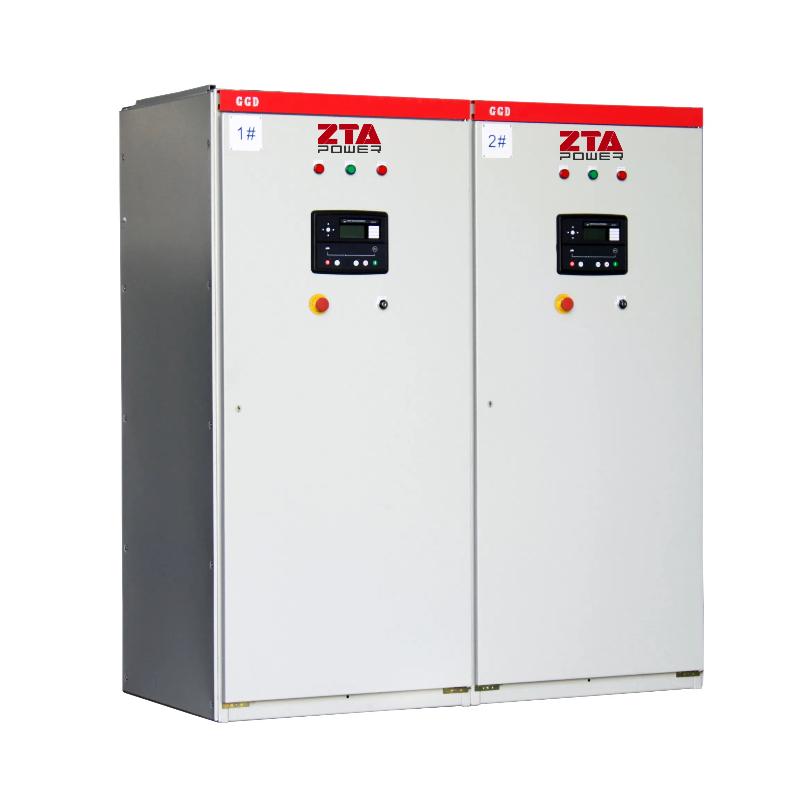

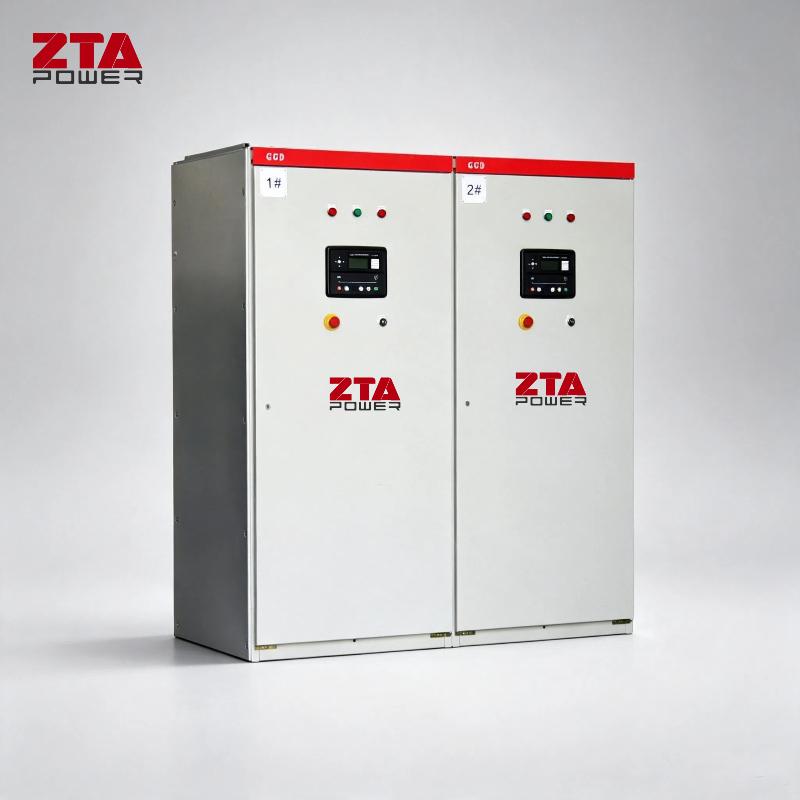

Synchronize Panel UK Deepsea 8610 Controller On Generator Set

Synchronize Panel UK Deepsea 8610 Controller On Generator Set

UK Deepsea 8610 Manufactured in the UK to industrial standards, this microprocessor-based controller ensures precise load sharing and frequency synchronization for mission-critical power applications.

The DSE8610 series is designed to provide differing levels of functionality across a common platform. This allows the generator OEM greater flexibility in the choice of controller to use for a specific application.

The DSE8610 series module has been designed to allow the operator to start and stop the generator, and if required, transfer the load to the generator either manually (via fascia mounted push-buttons) or automatically.

Synchronsing and Load Sharing features are included within the controller, along with the necessary protections for such a system.

The user also has the facility to view the system operating parameters via the LCD display.

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing

supply was at least 10 V before dropout and

supply recovers to 5 V. This is achieved

without the need for internal batteries

MAXIMUM OPERATING CURRENT

460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT

375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)

15 A DC at supply voltage

OUTPUT B (CRANK)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G

2 A DC at supply voltage

GENERATOR & BUS

VOLTAGE RANGE

15 V to 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)

BUILT-IN GOVERNOR CONTROL

MINIMUM LOAD IMPEDANCE

1000Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC

Fully isolated

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE

1000Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC

Fully isolated

DIMENSIONS

OVERALL

240 mm x 172 mm x 57 mm

9.4” x 6.8” x 2.2”

PANEL CUTOUT

220 mm x 160 mm

8.7” x 6.3”

KEY FEATURES

• Comprehensive loadshare capabilities

• Configurable inputs (11)

• Configurable outputs (8)

• Voltage measurement

• Built-in governor and AVR control

• kW overload alarms

• Comprehensive electrical protection

• Magnetic pick-up

• Electronic engine capability

• RS232 & RS485 remote

communications

• Modbus RTU

• PLC functionality

• Multi event exercise timer

• Back-lit LCD 4-line text display

• Multiple display languages

• Automatic start/Manual start

• Audible alarm

• Fixed and flexible LED indicators

• Event log (250)

• Engine protection

• Fault condition notification to a designated PC

• Front panel mounting

• Protected front panel

programming

• PC configuration

• Configurable alarms and timers

• Configurable start and stop timers

• SMS alert messaging

• Remote monitoring

• Compatible with DSE8700 Series

KEY BENEFITS

• RS232 & RS485 can be used at the same time

• DSENet connection for system expansion

• PLC functionality

• Auto voltage sensing

• Five step dummy load support

• Five step load shedding support

• High number of inputs and outputs

• Worldwide language support

• Configuration Suite PC software

• Direct USB connection to PC

• Ethernet monitoring

• USB host

• Data logging & trending

EXPANSION DEVICES

• DSE2548 LED Expansion Module

• DSE2130 Input Expansion Module

• DSE2157 Output Expansion Module

• DSE124 CAN/MSC Extender
