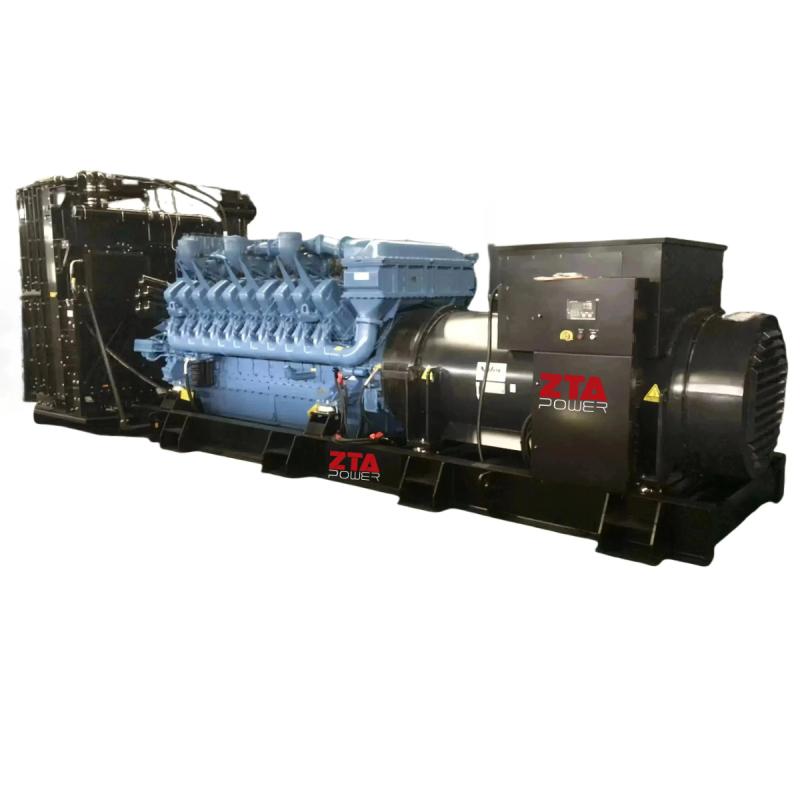

High Voltage 13.8KV 2500kw Power By MTU 20V4000G83F

MTU Genset With High Voltage 2500kw 13.8kv

High Voltage 13.8KV 2500kw Power By MTU 20V4000G83F

With a robust power output of 2500KW and an operating voltage of 13.8KV, this generator set is engineered to meet the highest standards of performance and durability.

Brand:
ZTA
Item NO.:
ZHM3438
Order(MOQ):
1
Payment:
T/T 30%, 70% Before shipment
Product Origin:
China
Shipping Port:
Xiamen, China
Lead Time：
4-8 weeks
Weight：
18365

Inquire Now

Product categories

New Products

Product Details

High Voltage 13.8KV 2500KW 3125kva Prime Power Generator by MTU 20V4000G83F

High Voltage Output: 13.8KV, suitable for industrial and large-scale power requirements.
Power Capacity: 2500KW, capable of supporting heavy loads and demanding applications.
MTU Engine: The 20V4000G83F engine is known for its reliability, efficiency, and low maintenance costs.
Durability: Built to withstand harsh operating conditions, ensuring long-term performance.
Flexibility: Ideal for a wide range of applications, including power plants, mining, oil and gas, and data centers.

Model	ZHM3438
Prime Power	2500 KW/3125KVA
Standby Power	2750KW/3438 KVA
Frequency/Voltage	60HZ, 13.8V
Power Factor	0.8
Type	Open Or Silent Type
Grounding Resistor Cabinet	Included
Grounding Resistor	Included
Contactor	Included

High Voltage 13.8KV Genset

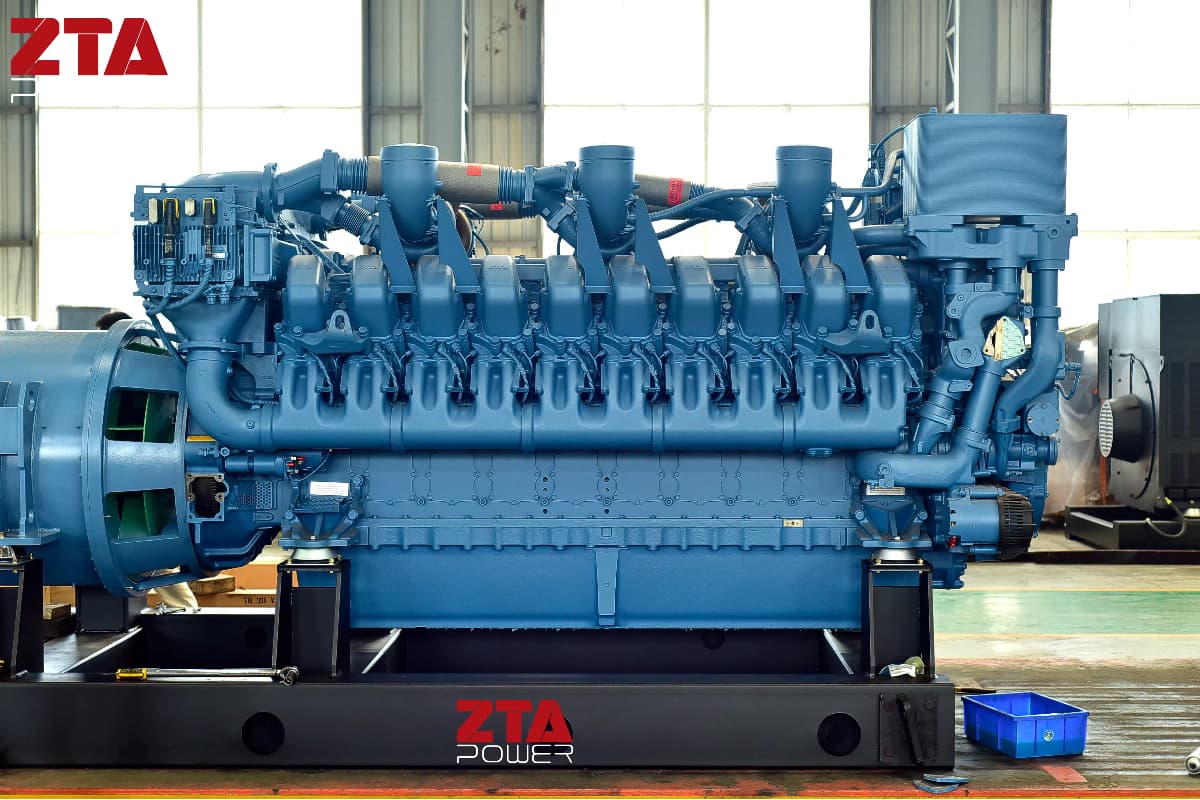

The main features of the MTU 20V4000G83F Engine

1.The MTU 20V4000G83F is a high-performance, high-voltage power generator designed to deliver reliable and efficient energy solutions for demanding industrial applications.

2.The MTU 20V4000G83F 13.8KV 2500KW Generator is the ultimate solution for businesses seeking a high-efficiency, high-reliability power source. With its advanced engineering and proven performance, it ensures uninterrupted power supply even in the most challenging environments.

Mtu Diesel Engine Model	20V4000G83F
Type	4-stroke, diesel
Governor Type	Electric Governor
Number of cylinders	20V
Bore×Stoke（mm)	170×210
Total displacement(L)	95.33
Min.specific fuel consumption at full load	621L/h

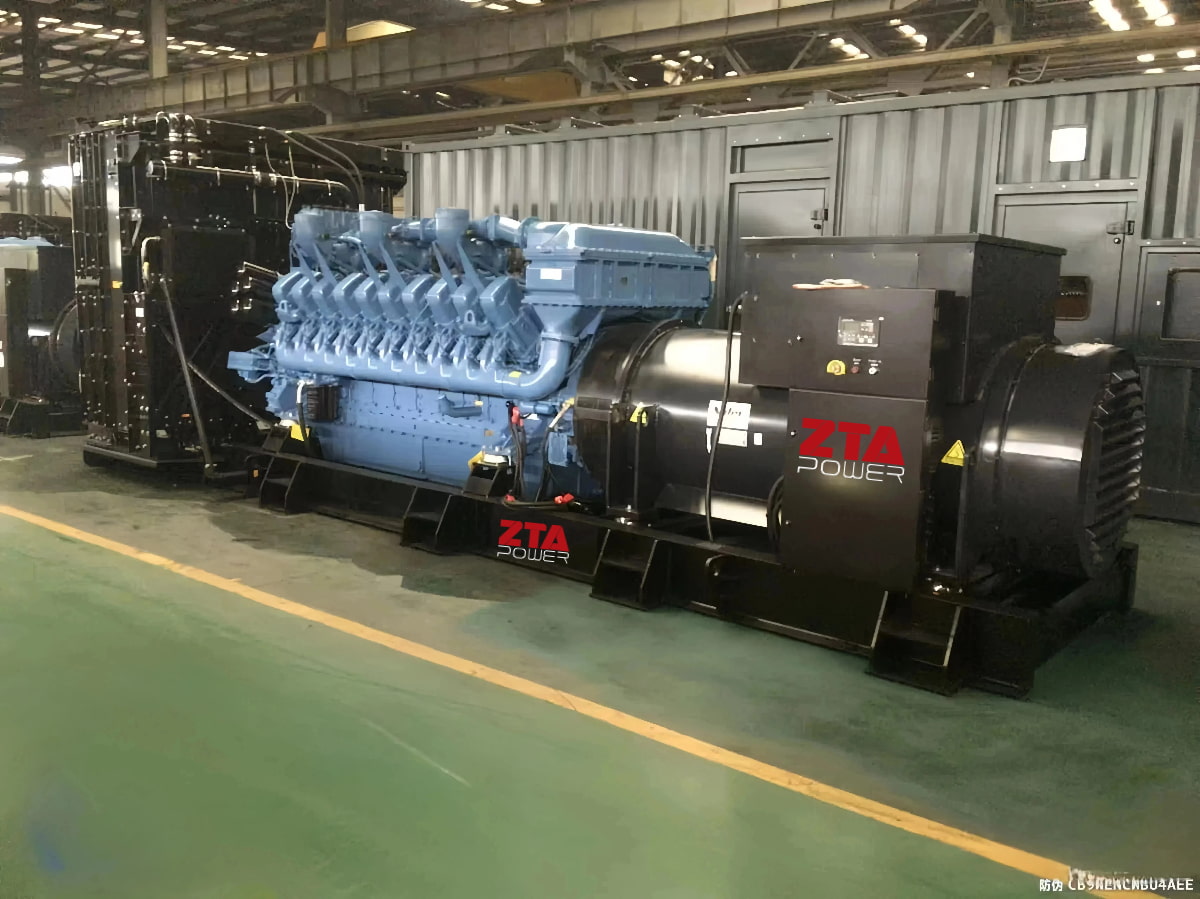

MTU High Voltage Genset

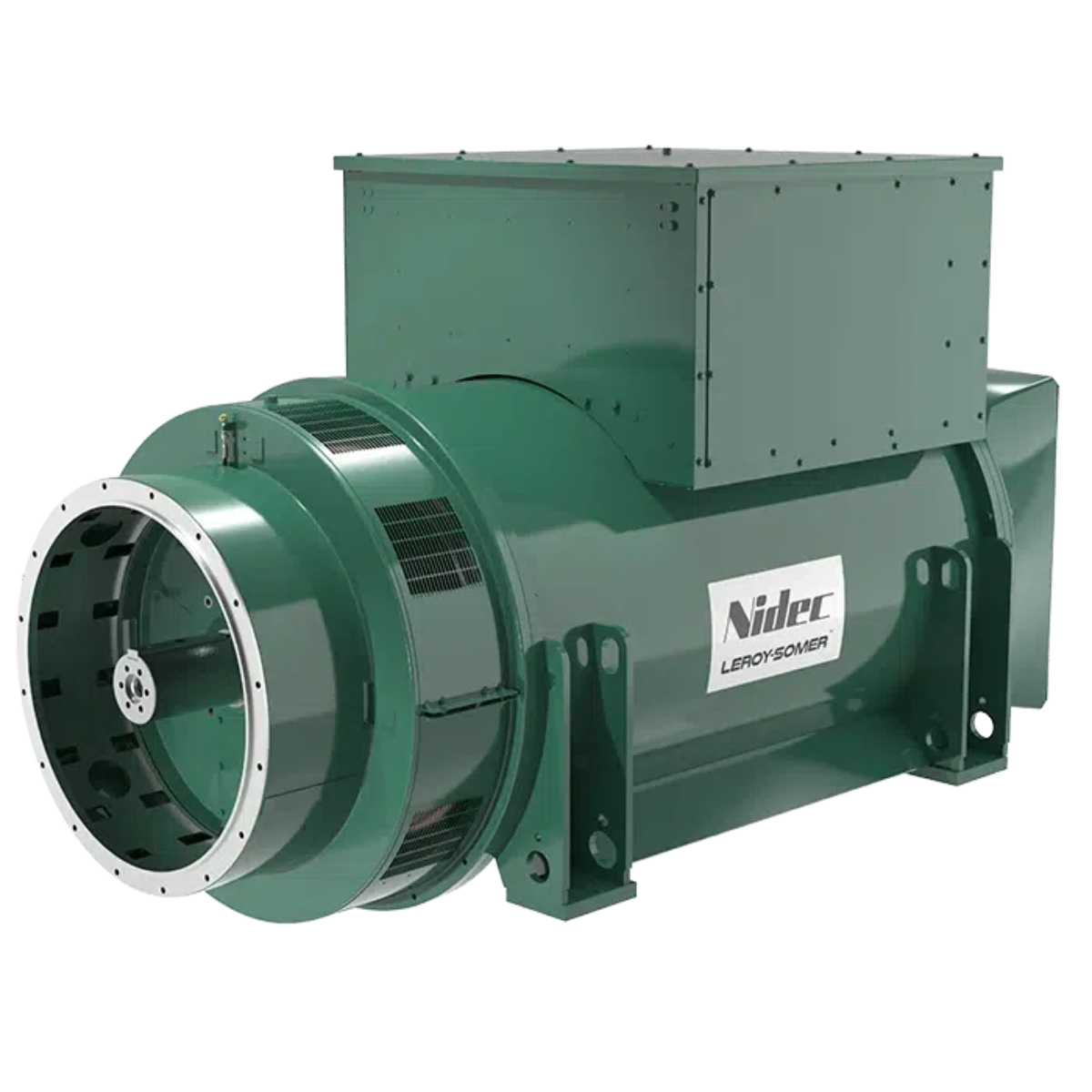

Brushless Alternators

Equipped with brushless alternators (e.g., Leroy-Somer, Stamford, or Mecc Alte), ensuring stable voltage output and high efficiency.
Voltage regulation within ±1%, suitable for sensitive electronic equipment.

Alternator Model	Leroy somer LSA54.2ZL10
AVR Standard	D550(AREP+PMI)
Voltage Available	613800V
Insulation Class	H
Number of Wires	6
Protection	IP 23
Sustained short-circuit current	300% (3 IN) / 10s
Options:	PMG, Droop CT, Space Heater, Thermal Protection For Stator winding &/or bearing(PT100)

Advanced Control Systems

(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need)

Integrated automatic voltage regulator (AVR) and digital control panels (e.g., Deepsea, ComAp) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.

	Deif SGC420MKII	Deepsea 6120
Digital Inputs	5	6
Digital Outputs	8	8
Analog Inputs	4	4
Current Monitoring	3	4
Multiple Protection Parameters	32-520V	26-719V
RS485 Port	✔	✘
Zero Sequence Current	✔	✘
BTB Monitoring	✔	✘

Advantages

Advantages of High-Voltage Diesel Generator Sets

1.High Power Output:

Capable of delivering high power outputs (e.g., 2500KW at 13.8KV), making them suitable for heavy-duty industrial applications.
Ideal for powering large facilities, machinery, and equipment that require consistent and high-capacity energy supply.

2.Fuel Efficiency:

Diesel engines are known for their fuel efficiency, offering lower operational costs compared to other fuel types.
Advanced engine technologies, such as MTU Series 4000, optimize fuel consumption while maintaining high performance.

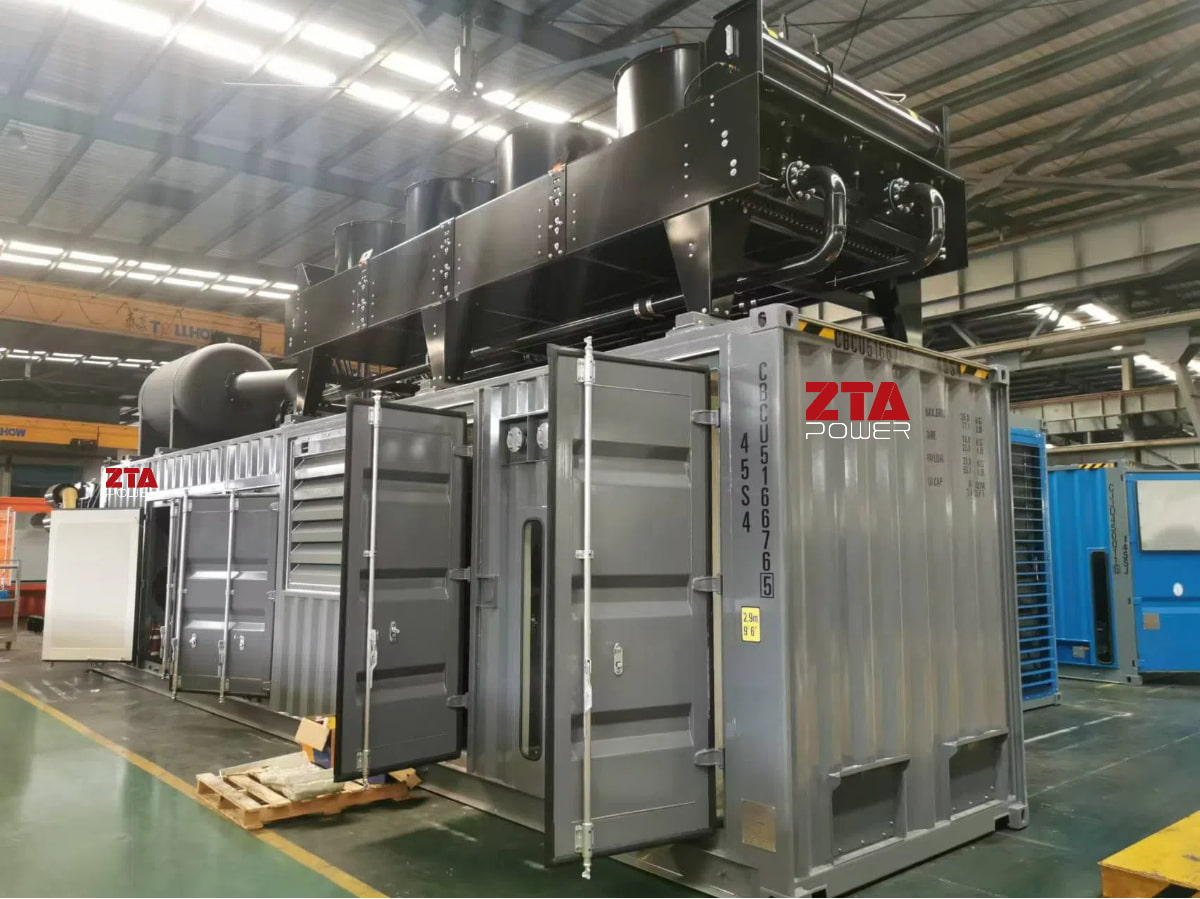

Silent Generator Set With Horizontal Radiator
