High Voltage Cummins KTA50-GS8 1200kw 1500kva 6300V
Cummins KTA50-GS8 Engine Powered Diesel Generator Set With Advanced combustion technology ensures low fuel consumption and reduced operating costs.
Brand:
ZTAItem NO.:
ZHV1650Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
11000Prime Power 1200 kw/1500 kva Cummins Diesel Generator Set Power By KTA50-GS8 Engine

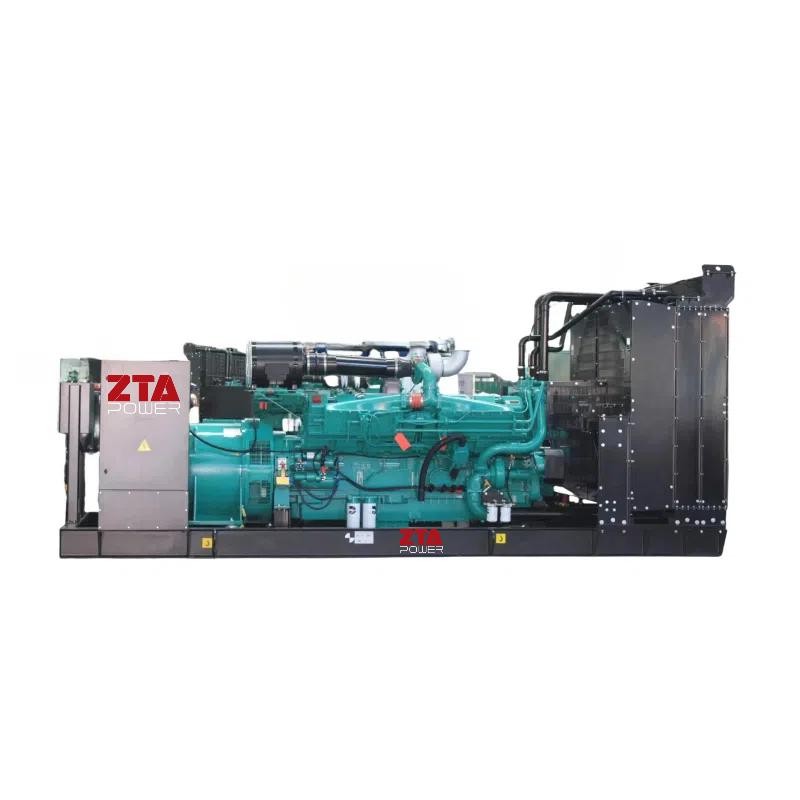

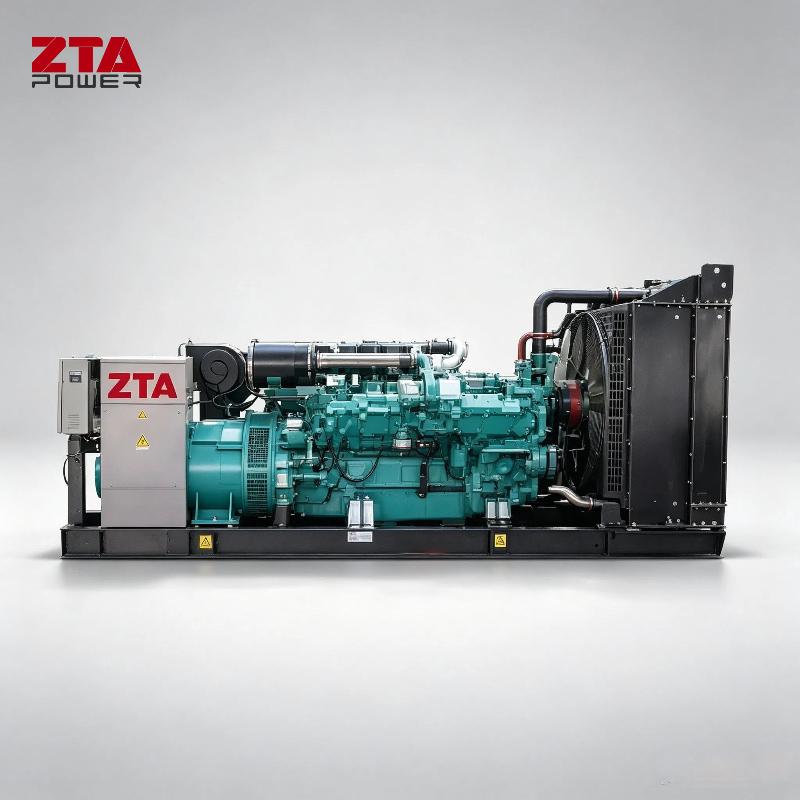

The High Voltage Cummins KTA50-GS8 1200KW 1500KVA 6300V Generator Set is a robust and efficient power solution designed for demanding industrial applications. Powered by the renowned Cummins KTA50-GS8 engine, this generator set delivers reliable performance, high efficiency, and exceptional durability, making it ideal for industries requiring high-voltage power.
| Model | ZHC1650 |
| Prime Power | 1200 KW/1500KVA |
| Standby Power | 1320KW/1650 KVA |
| Frequency/Voltage | 50HZ, 6300V |
| Power Factor | 0.8 |
| Type | Open Or Silent Type |
| Grounding Resistor Cabinet | Included |
| Grounding Resistor | Included |
| Contactor | Included |
The main features of the Cummins KTA50-GS8 Engine
1.High-Performance Cummins KTA50-GS8 Engine
Fuel Efficiency: Advanced combustion technology ensures low fuel consumption and reduced operating costs.
2.High Voltage Output
| Cummins Diesel Engine Model | KTA50-GS8 |
| Type | 4-stroke, diesel |
| Combustion system | Direct injector |
| Number of cylinders | 16 |
| Bore×Stoke（mm) | 159×159 |
| Total displacement(L) |
50 |
| Min.specific fuel consumption at full load | 309L/h |
Brushless Alternators
| Alternator Model | Leroy somer LSA52.2XL65 |
| AVR Standard | R449(PMG For Optional) |
| Voltage Available | 6300V |
| Insulation Class | H |
| Number of Wires |
6 |
| Protection | IP 23 |
|
Sustained short-circuit current |
300% (3 IN) / 10s |
Advanced Control Systems
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need)
| Deepsea 6120 | Deepsea 7320 | |
| Over/under voltage protection | √ | √ |
| Over/under frequency protection | √ | √ |
| Phase rotation alarm | √ | √ |
| Overload /Low load protection | √ | √ |
| Overcurrent protection | √ | √ |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | - | √ |
1.Reliability: Cummins engines are known for their durability and long service life.
2.High Efficiency: Optimized combustion technology reduces operating costs.
3.Low Maintenance: Robust design and high-quality components minimize downtime.
4.Global Support: Backed by Cummins’ worldwide service network.
With a robust power output of 2500KW and an operating voltage of 13.8KV, this generator set is engineered to meet the highest standards of performance and durability.
