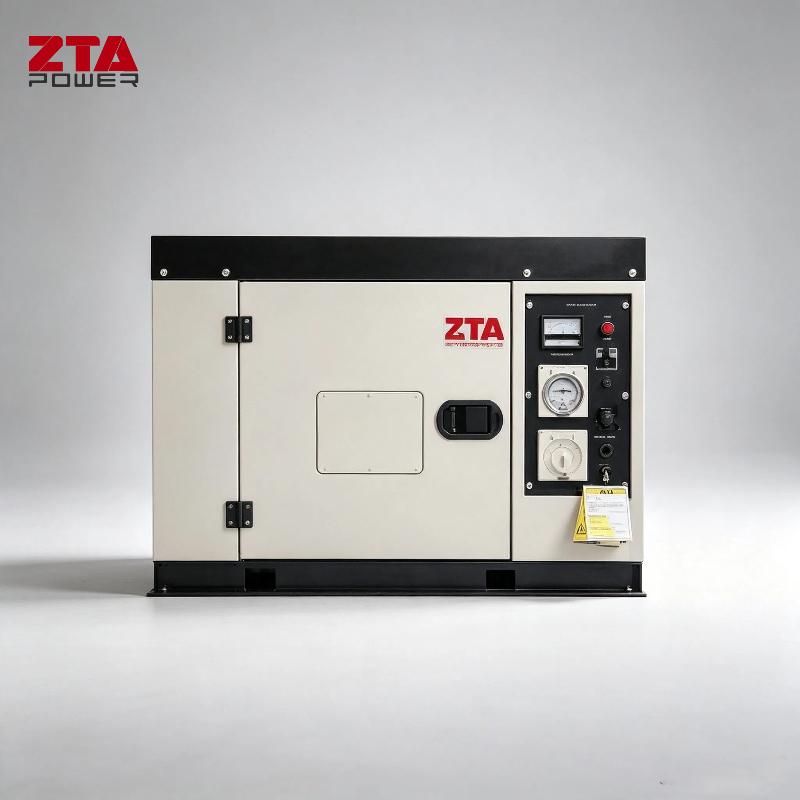

10KW 12KVA Air-Cooled Portable Silent Generator Set
Our 10kW (12kVA) air-cooled silent generator delivers reliable power for residential and light commercial use.
Brand:
ZTAItem NO.:
Z10Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
114010KW 12KVA Air-Cooled Portable Silent Generator Set For Home Use
Featuring a soundproof canopy design (68dB at 7m) and portable wheel kit, the generator set quiet operation with exceptional fuel efficiency - perfect for blackouts, outdoor events, and mobile applications
Generator Set Specification
| Model | Z10 | |
| Frequency(HZ) | 50 | 60 |
| Rated output(KW) | 10 | 10.5 |
| Max.output(KW) | 11 | 11.5 |
| Rated AC voltage(V) | 220,230,220/380,230/400 | |
| Power factor（cosΦ） | 1/0.8 | |
| DC output（V/A） | 12/8.3 | |
| Phase | Single OR Three | |
| Alternator type | Self-excited | |
| Starting system | Electric | |
| Noise level（at 7m）（dB） | 73 | |
| Fuel tank capacity（L） | 30 | |
| PACKING Dimension(L*W*H)(mm) | 1125*650*875 | |
| Gross weight(KG) | 270 | |
| 20FT Loading Qty | 36 | |
| 40HQ Loading Qty | 102 | |
Diesel Engine Datasheet
The 1105F is a high-performance, 4-stroke diesel engine delivering 18.5-49.2 kW (24.8-66 hp) at 1500 and 1800 rpm.
|
Engine Model |
1105F |
|
Engine type |
Two-Cylinder,Vertical 4-Cycle,Air-cooled diesel |
|
Bore ×Stroke |
88x75 mm |
|
Displacement (L) |
0.912L |
|
Fuel |
0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil |
|
Lubrication oil volume(L) |
3 |
| Combustion system | Direct injection |
Reliable Power Output
10kW continuous (12kVA peak)
Single/Three-phase selectable (230V/400V)
5x 220V outlets + 1x 32A industrial socket
Typical Applications

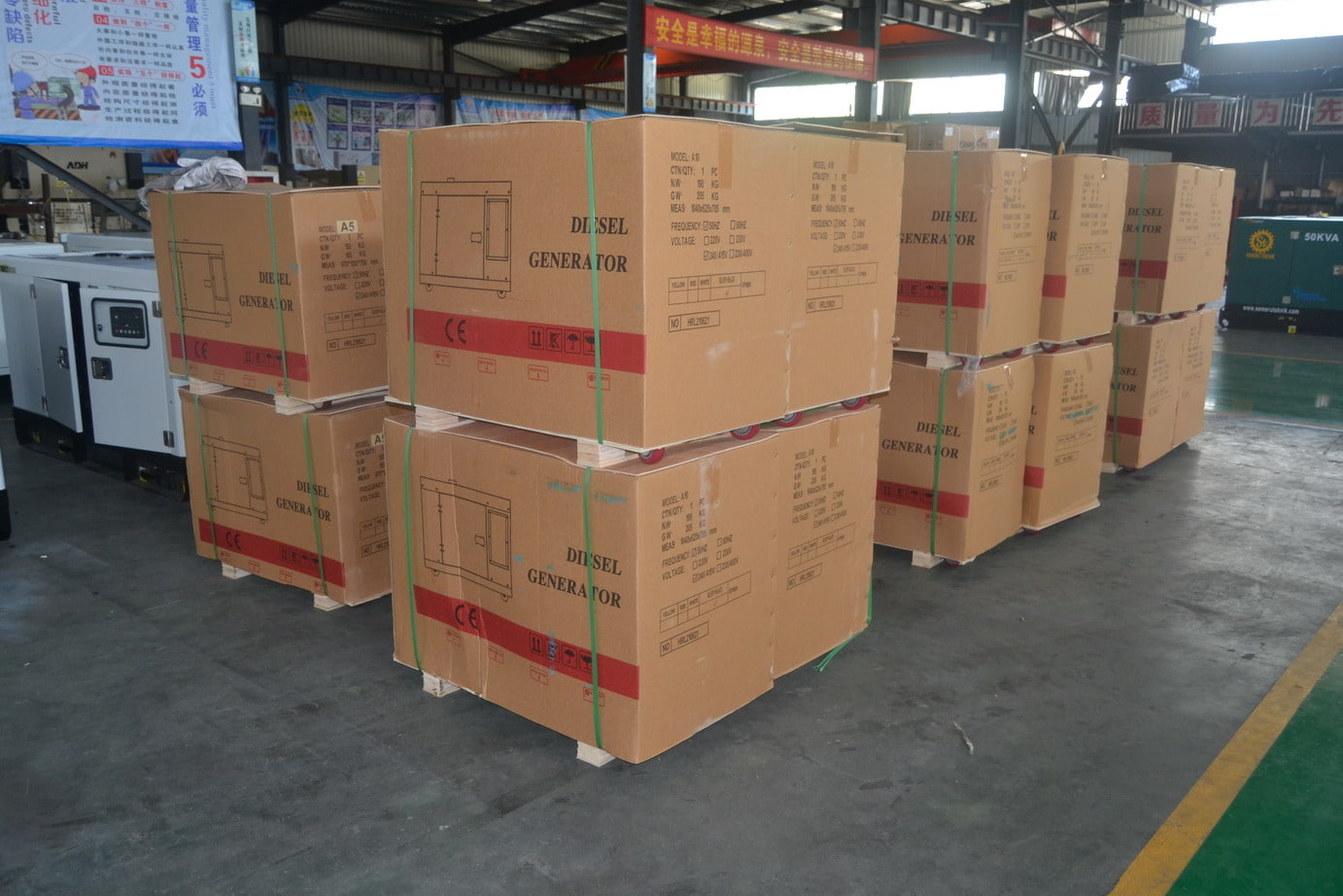

Packing Photo
