The Mitsubishi diesel engines in the SQ series offer a powerful solution that combines controlled performance at a high level with a responsible attitude towards the environment.
Brand:
ZTAItem NO.:
ZM22Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentPrice Range:
8000 - 9000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
500Prime Power 16 kw/20 kva Japan Mitsubishi Diesel Generator Set Power By S4Q2 Engine

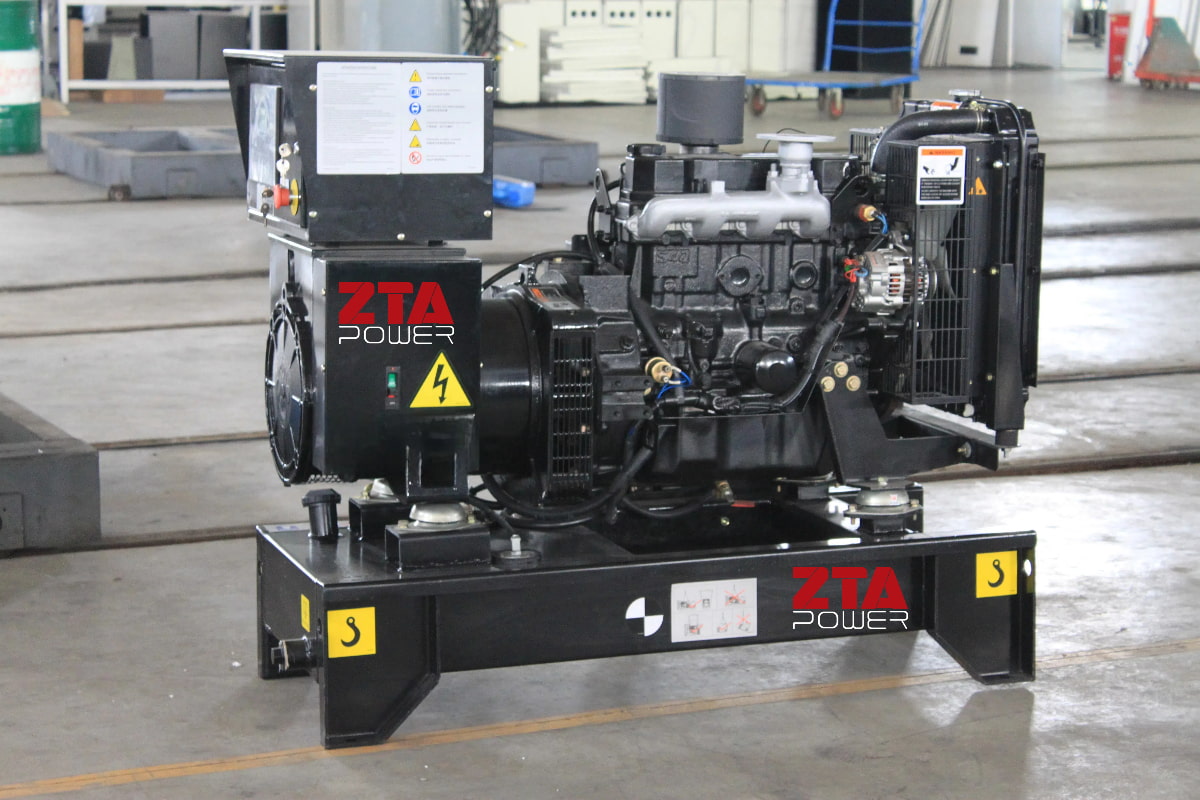

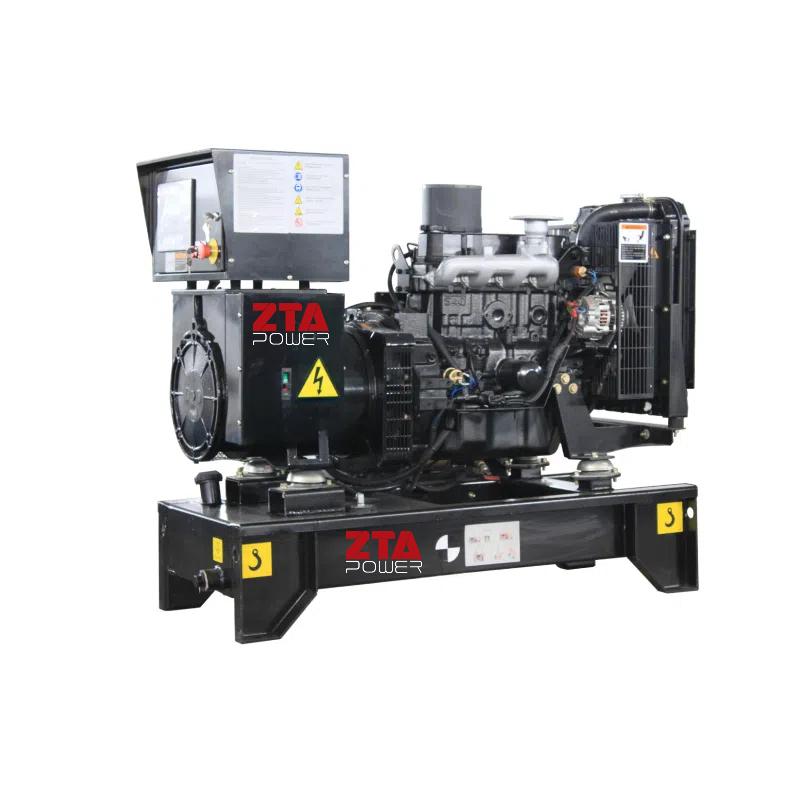

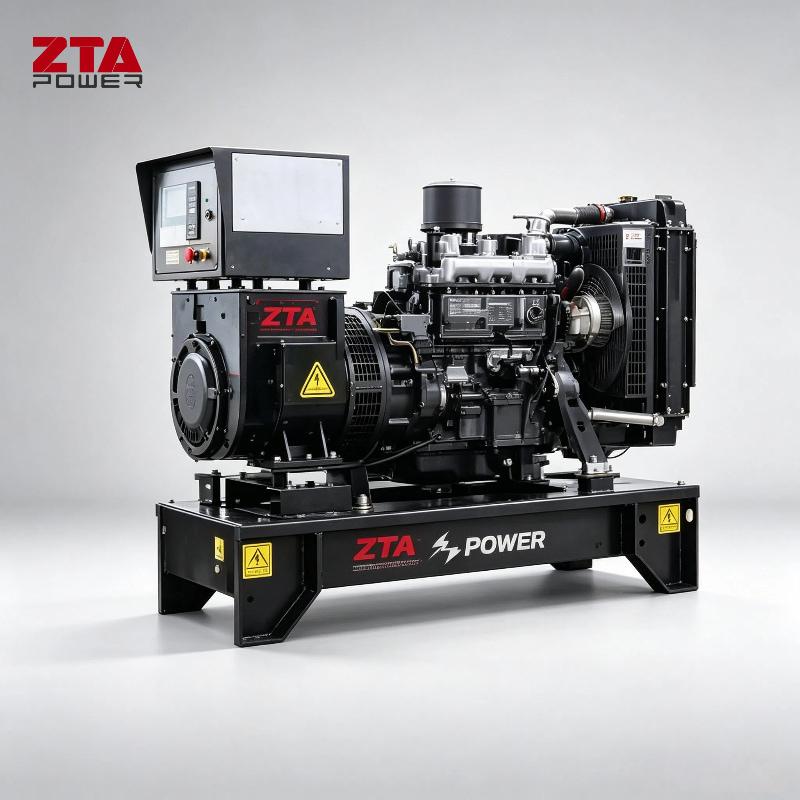

The 16KW Mitsubishi Diesel Generator Set, powered by the Mitsubishi S4Q2 engine, is a compact and reliable power solution designed for both standby and prime power applications. Combining Mitsubishi's renowned engineering excellence with robust construction, this generator set is ideal for residential, commercial, and light industrial use.
| Model | ZMT22 |
| Prime Power | 16 KW/20 KVA; |
| Standby Power | 17KW/22 KVA |
| Frequency/Voltage | 50HZ: 400/230V,380/220V,220/127V; 60HZ: 480/277V,440/254V,220/127V,High Voltge Also Available |
| Power Factor | 0.8 Or 1.0 |
| Optional | ATS And Synchronize Panel Also Supply |

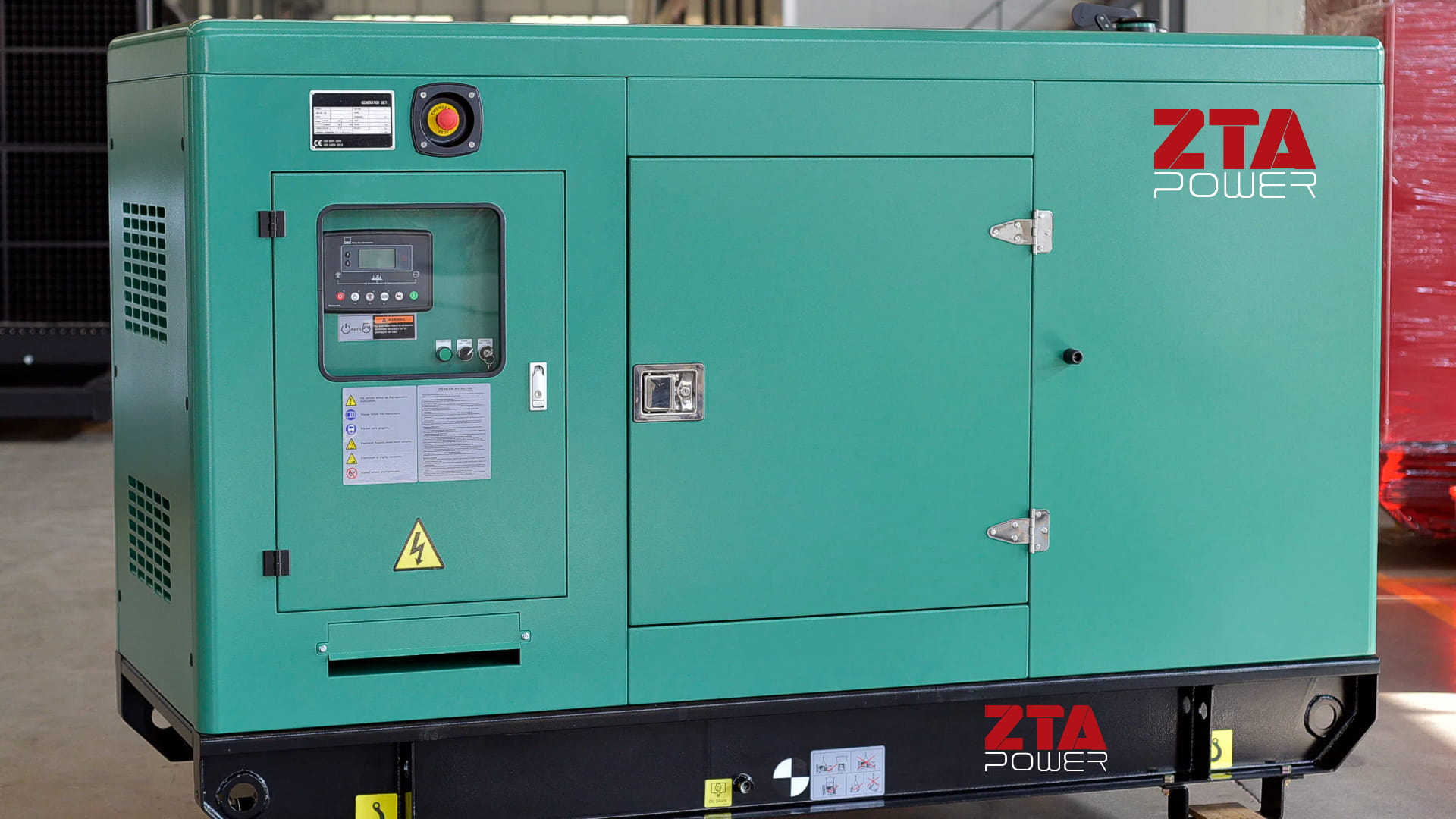

| Type | Open Or Silent Type |
The main features of the Mitsubishi SQ series are
The Japan Mitsubishi SQ series have been designed after heavy durability tests, focused on effective torque in the middle low gear had been completed. The focus on its application in construction and production machinery further improved the design. The sound intensity level is exceptionally low thanks to an optimal design of the exhaust system.

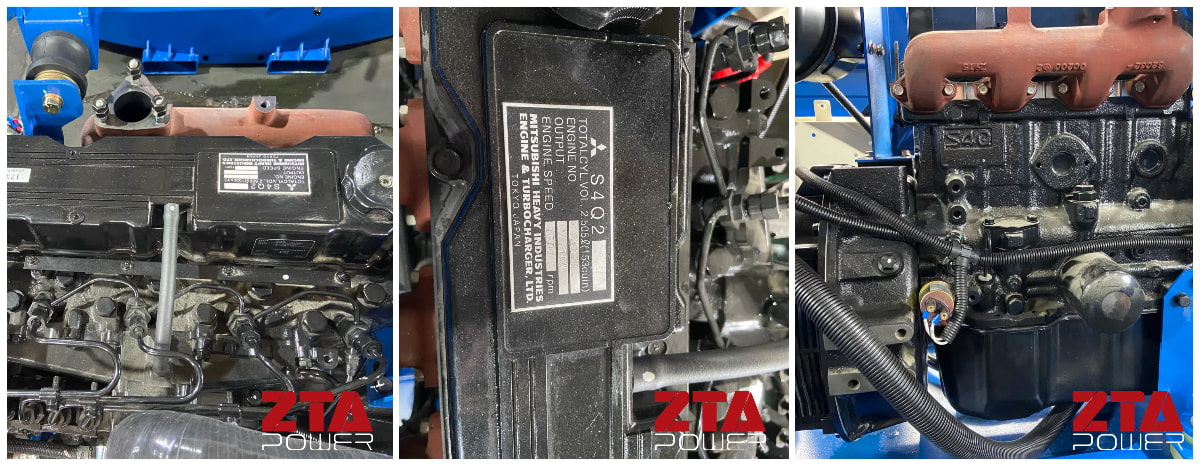

| Japan Mitsubishi Diesel Engine Model | S4Q2 |
| Type | 4-stroke, diesel |
| Combustion system | Direct injector |
| Number of cylinders | 4 |
| Bore×Stoke（mm) | 88×103 |
| Total displacement(L) |
2.505 |
| Min.specific fuel consumption at full load | 7.48L/h |
Robust Alternators

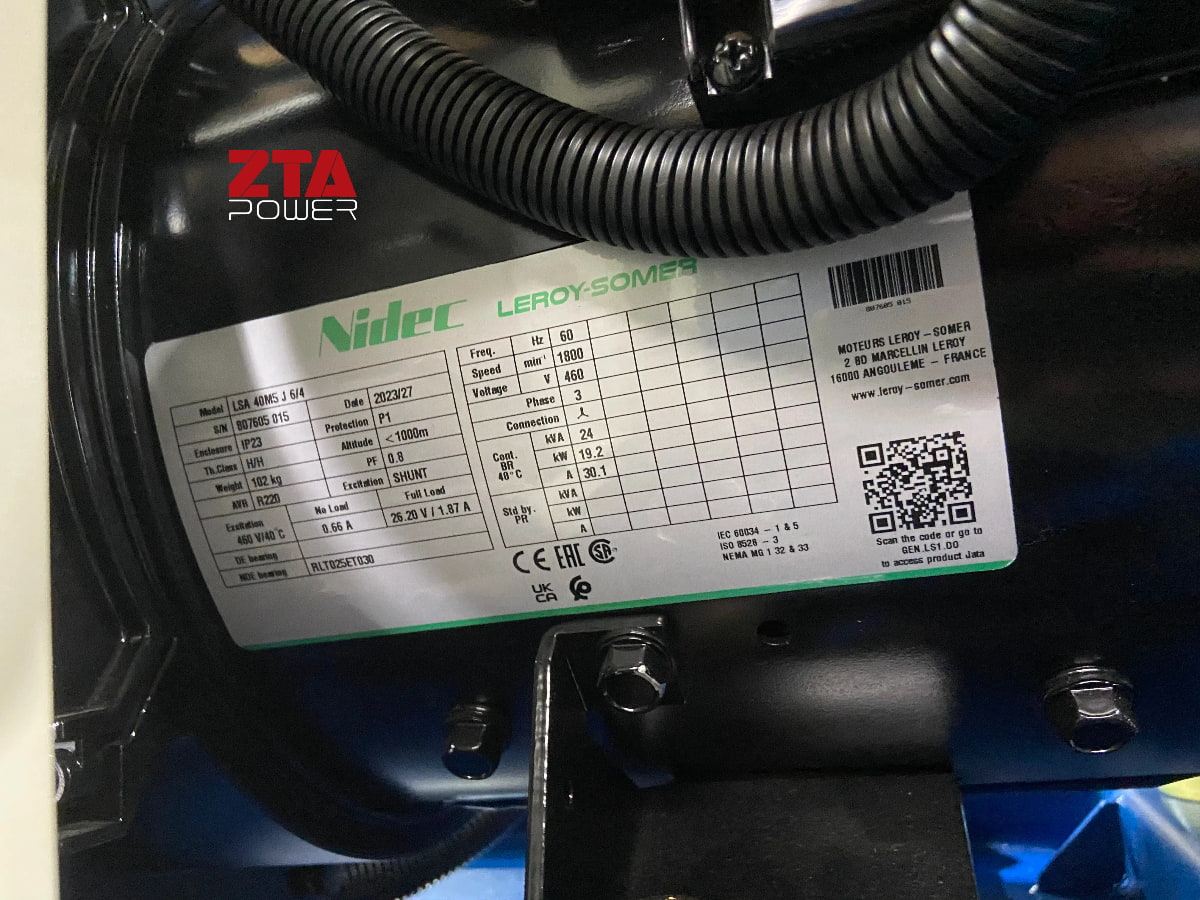

| Alternator Model | Leroy somer LSA 40M5 |
| AVR Standard | Included |
| Voltage Available | 480/277V, 400/230V, 380/220V,220/127V |
| Insulation Class | H |
| Number of Wires |
Standard units with 4 leads (12 leads for simplify voltage reconnection is optional) |
| Protection | IP 23 |
| Space Heater | Need on Extra Cost |
Advanced Control Systems
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need)
| Deepsea 6120 | Deepsea 7320 | |
| Over/under voltage protection | √ | √ |
| Over/under frequency protection | √ | √ |
| Phase rotation alarm | √ | √ |
| Overload /Low load protection | √ | √ |
| Overcurrent protection | √ | √ |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | - | √ |
Circuit Breaker
| Standard | Included |
| Type | 3P/4P |
| Amper | 3200A |
The relationship between JAPAN MITSUBISHI and SME MITSUBISHI can be described as follows:
1.JAPAN MITSUBISHI refers to Mitsubishi Heavy Industries, Ltd. (MHI), a global leader in engineering and manufacturing headquartered in Japan. MHI is responsible for the design, development, and production of high-quality engines and generator sets, including the renowned Mitsubishi S Series and K Series engines.
2.Key Aspects of the Relationship:
Technology Transfer: JAPAN MITSUBISHI provides the core engine technology and components, while SME MITSUBISHI handles localized assembly and customization.
Mitsubishi Generator Sets are renowned for their exceptional performance, durability, and efficiency, powered by Mitsubishi's advanced diesel engines. Designed to meet the demands of both prime and standby power applications, these generator sets are widely used in industries such as construction, manufacturing, healthcare, and telecommunications.
