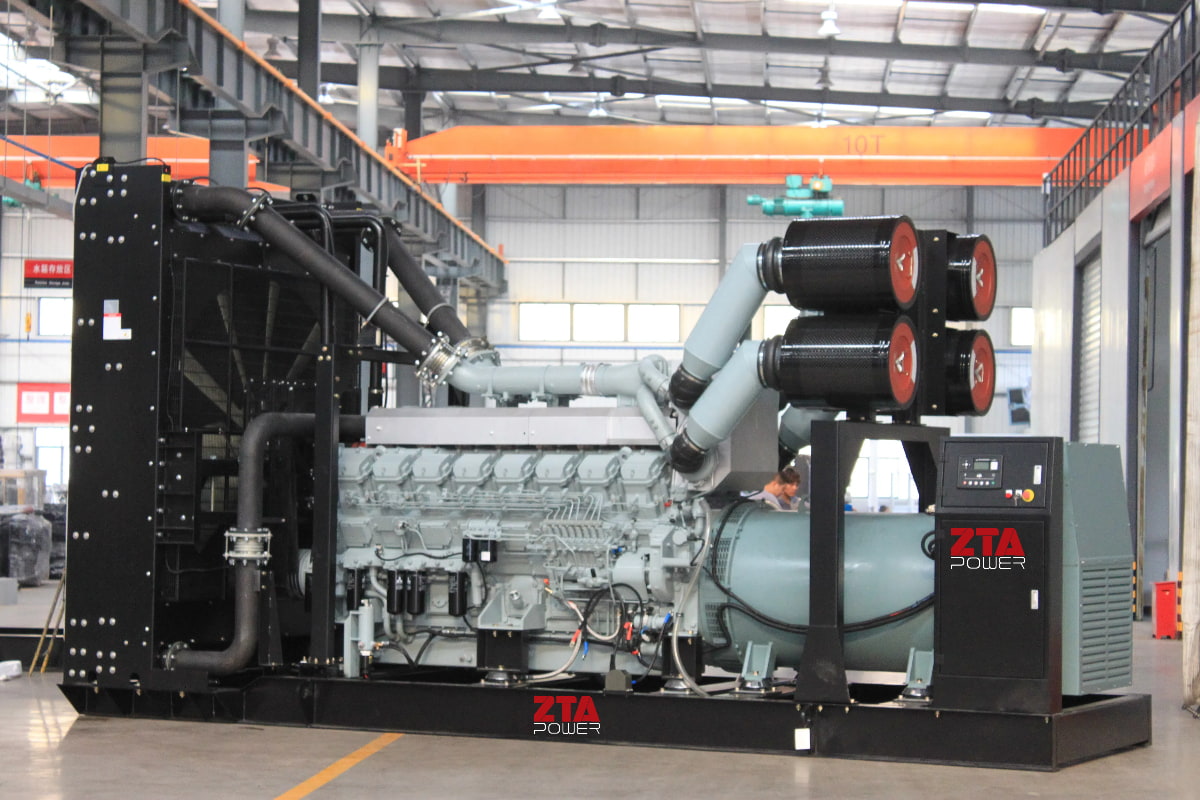

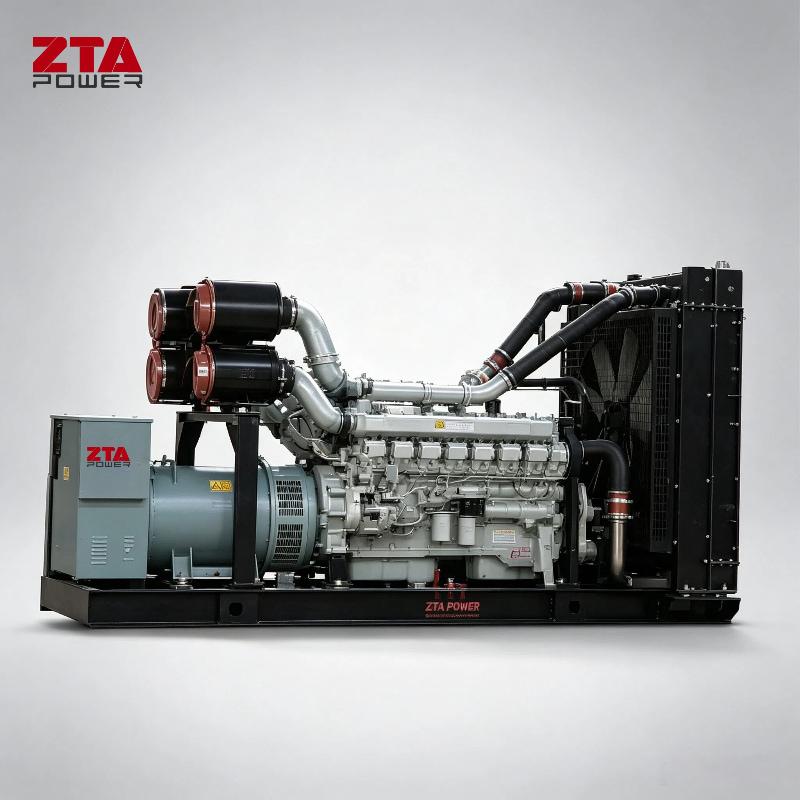

Diesel Generator Set 1600KW 2000KVA Power By Mitsubishi Japan S16R-PTAA2
Mitsubishi Generator Sets are renowned for their exceptional performance, durability, and efficiency, powered by Mitsubishi's advanced diesel engines. Designed to meet the demands of both prime and standby power applications, these generator sets are widely used in industries such as construction, manufacturing, healthcare, and telecommunications.
Brand:
ZTAItem NO.:
ZM2250Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentPrice Range:
145000 - 165000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
12800Prime Power 1600kw/2000kva Japan Mitsubishi Diesel Generator Set Power By S16R-PTAA2 Engine
Mitsubishi Generator Sets are renowned for their exceptional performance, durability, and efficiency, powered by Mitsubishi's advanced diesel engines. Designed to meet the demands of both prime and standby power applications, these generator sets are widely used in industries such as construction, manufacturing, healthcare, and telecommunications.
| Model | ZMT2200 |
| Prime Power | 1600KW/2000KVA |
| Standby Power | 1800KW/2250KVA |
| Frequency/Voltage | 50HZ: 400/230V,380/220V,220/127V; 60HZ: 480/277V,440/254V,220/127V,High Voltge Also Available |
| Power Factor | 0.8 Or 1.0 |
| Optional | ATS And Synchronize Panel Also Supply |
| Type | Open Or Silent Type |
The Japan Mitsubishi Diesel ENGINE Datasheet
High-Performance Mitsubishi Engines
| Japan Mitsubishi Diesel Engine Model | S16R-PTAA2 |
| Type | Vertical,water cooling, four stroke |
| Combustion chamber type | Direct injector |
| Number of cylinders | 16 |
| Bore×Stoke（mm) | 170×180 |
| Total displacement(L) |
65.37 |
| Min.specific fuel consumption at full load | 402L/h |
Robust Alternators
| Alternator Model | Marathon MX-1600-4(Leroy somer, Stamford Also Available) |
| AVR Standard | Included |
| Voltage Available | 480/277V, 400/230V, 380/220V,220/127V |
| Insulation Class | H |
| Number of Wires |
Standard units with 4 leads (12 leads for simplify voltage reconnection is optional) |
| Protection | IP 23 |
| Space Heater | Need on Extra Cost |
MAGNAMAX® synchronous AC generators meet the main international standards and regulations: NEMA MG1, IEC60034 and GB755.
MAGNAMAX® generators are designed, manufactured and marketed in an ISO 9001 environment.
Advanced Control Systems
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need)
| Deepsea 6120 | Deepsea 7320 | |
| Over/under voltage protection | √ | √ |
| Over/under frequency protection | √ | √ |
| Phase rotation alarm | √ | √ |
| Overload /Low load protection | √ | √ |
| Overcurrent protection | √ | √ |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | - | √ |
Circuit Breaker
| Standard | Included |
| Type | 3P/4P |
| Amper | 3200A |
The relationship between JAPAN MITSUBISHI and SME MITSUBISHI can be described as follows:
1.JAPAN MITSUBISHI refers to Mitsubishi Heavy Industries, Ltd. (MHI), a global leader in engineering and manufacturing headquartered in Japan. MHI is responsible for the design, development, and production of high-quality engines and generator sets, including the renowned Mitsubishi S Series and K Series engines.
2.Key Aspects of the Relationship:
Technology Transfer: JAPAN MITSUBISHI provides the core engine technology and components, while SME MITSUBISHI handles localized assembly and customization.
The Mitsubishi diesel engines in the SQ series offer a powerful solution that combines controlled performance at a high level with a responsible attitude towards the environment.
