Baudouin Diesel Generator 1600kw 2000kva 20M33G2250
The Baudouin Diesel Generator 1600kW 2500kVA 20M33G2250 is a high-performance power solution designed for industrial, commercial, and critical infrastructure applications
Brand:
ZTAItem NO.:
ZBD2250Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4 weeksWeight：

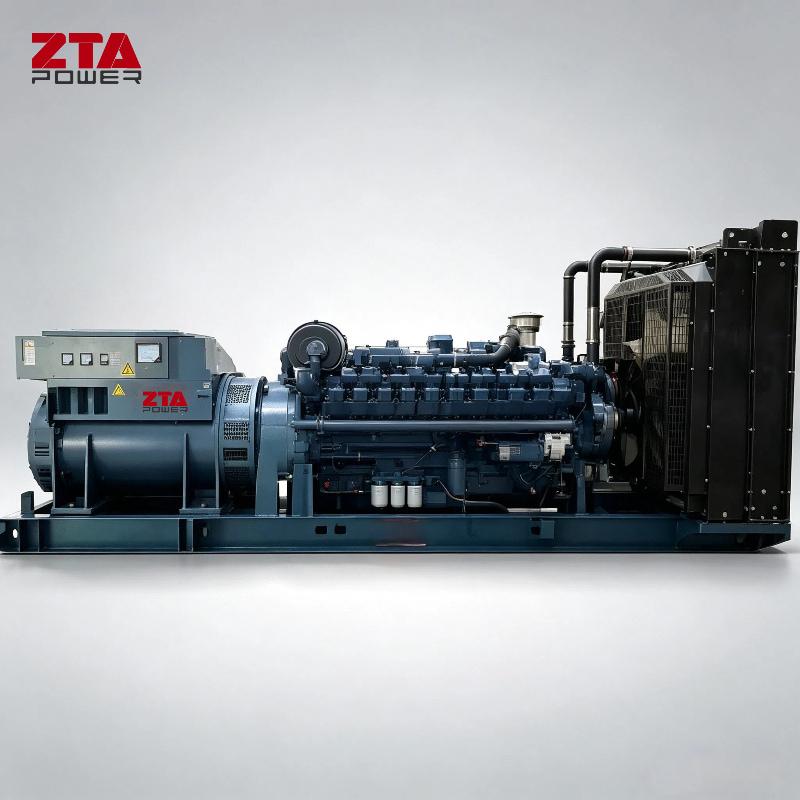

12820Baudouin Genset 1600kw 2000kva Power By 20M33G2250 Engine
Powered by the advanced Baudouin 20M33G2250 engine, this generator set delivers reliable, efficient, and uninterrupted power, making it an ideal choice for demanding environments. With a power output of 1600kW (2500kVA), this generator is capable of supporting large-scale operations and ensuring business continuity during power outages.
| Model | ZBD2250 |
| Prime Power | 1600KW/2000KVA |
| Standby Power | 1800KW/2250 KVA |
| Frequency/Voltage | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Power Factor | 0.8 |
| Type | Open Or Silent Type |
The main features of the Baudouin 20M33G2250 Engine
Renowned for its durability, fuel efficiency, and low maintenance requirements.
Designed to operate in extreme conditions with consistent performance.
| Baudouin Diesel Engine Model | 20M33G2250/5 |
| Type | 4-stroke, diesel |
| Governor Type | ECU |
| Number of cylinders | 20 |
| Bore×Stoke（mm) | 150×185 |
| Total displacement(L) |
65.4 |
| Min.specific fuel consumption at full load (L/h) | 432.8 |

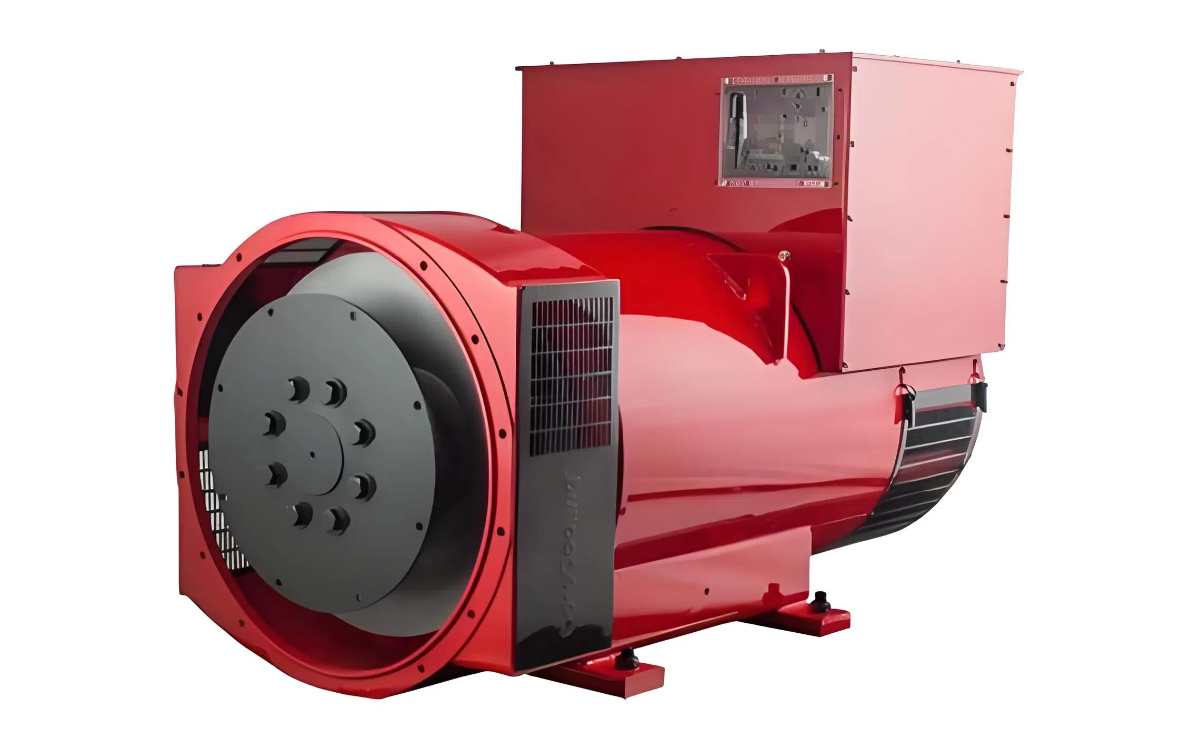

Brushless Alternators
Equipped with brushless alternators (e.g., Leroy-Somer, Stamford, or Mecc Alte), ensuring stable voltage output and high efficiency.
Voltage regulation within ±1%, suitable for sensitive electronic equipment.
| Alternator Model | Stamford PI734F |
| AVR Standard | MX341(PMG) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
| Options: | Droop CT, Space Heater, Thermal Protection For Stator winding &/or bearing(PT100) |
Advanced Control Systems
(Deif Brand SGC 420MKII, UK Deepsea 6120,Smartgen 6120,Comap AMF 25, ... ETC Also Available Base on Customer Need)
Integrated automatic voltage regulator (AVR) and digital control panels (e.g., Deepsea, ComAp) for precise monitoring and control.Features such as auto-start/stop, load sharing, and remote monitoring.
| Deif SGC420MKII | Deepsea 6120 | |
| Digital Inputs | 5 | 6 |
| Digital Outputs | 8 | 8 |
| Analog Inputs | 4 | 4 |
| Current Monitoring | 3 | 4 |
| Multiple Protection Parameters | 32-520V | 26-719V |
| RS485 Port | ✔ | ✘ |
| Zero Sequence Current | ✔ | ✘ |
| BTB Monitoring | ✔ | ✘ |
