The Mobile Trailer Generator Set With 2 Wheels is a compact and easy-to-transport power solution, perfect for temporary or remote power needs
Brand:
ZTAItem NO.:
ZMB2Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4 weeksWeight：

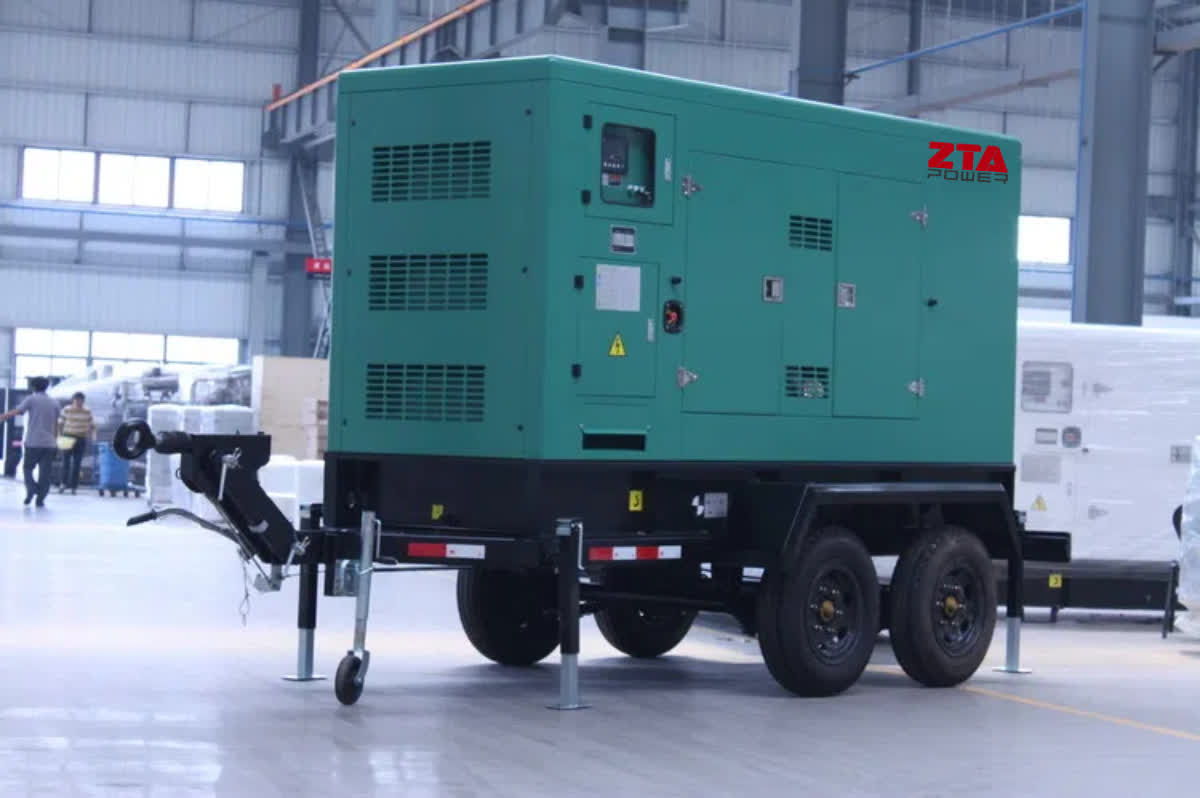

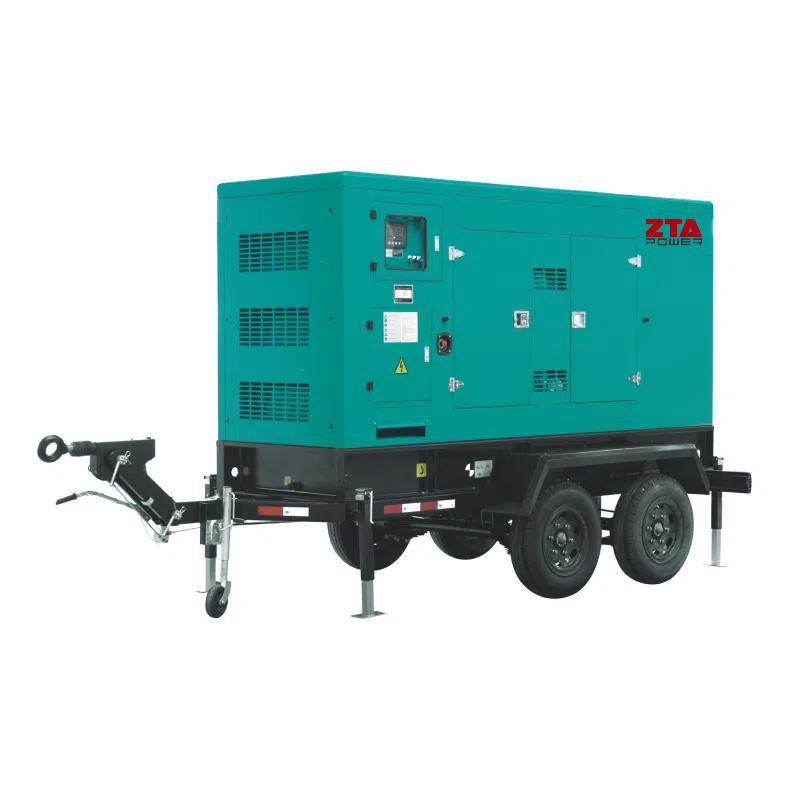

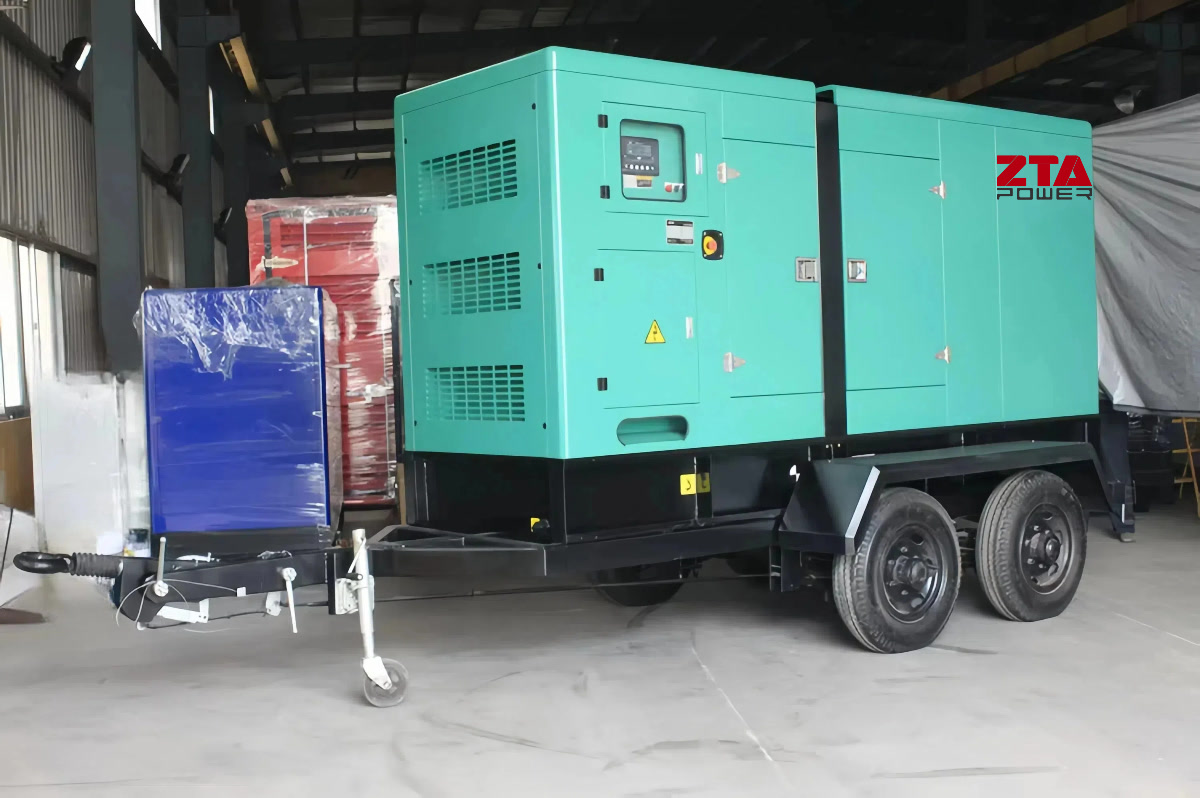

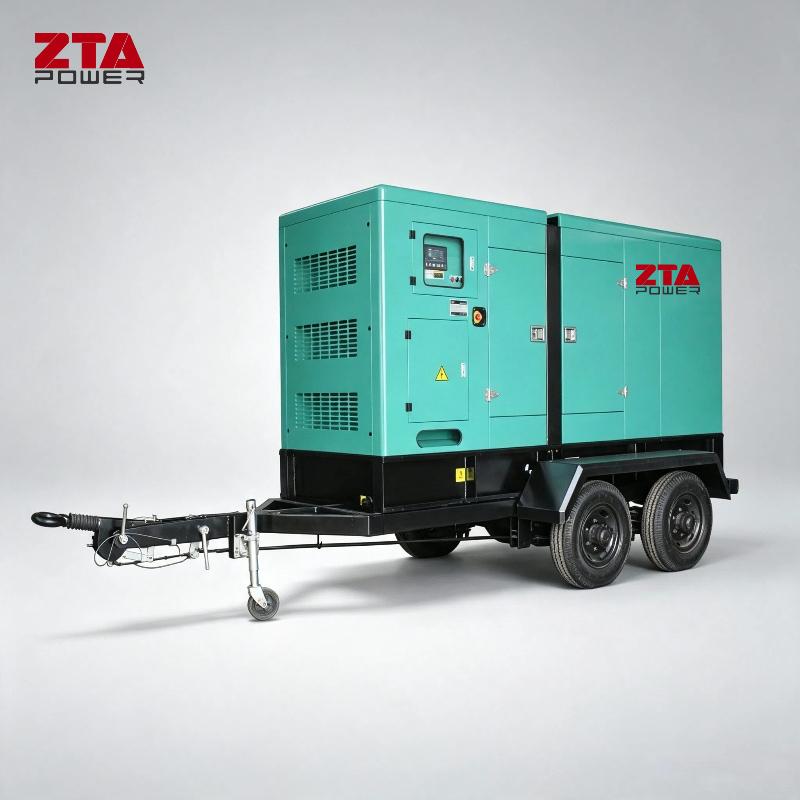

3700Diesel Trailer Generator Set With 4 Wheels
The Diesel Trailer Generator Set With 4 Wheels is a highly mobile and robust power solution designed for industries requiring reliable, transportable electricity. Mounted on a heavy-duty 4-wheel trailer, this generator set ensures easy towing, quick deployment, and stable operation in various environments. It is ideal for construction sites, emergency backup, outdoor events, and remote power needs.
Equipped with a high-performance diesel engine, advanced control systems, and weather-resistant construction, this generator set delivers consistent power while maintaining fuel efficiency and durability.
| Model | ZMB2 |
| Prime Power | 120KW/150KVA-400KW/500KVA Available |
| Standby Power | 132KW/165 KVA-440KW/550KVA Available |
| Frequency/Voltage | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Power Factor | 0.8 |
| Type | Silent Type With Mobile Trailer |
| Trailer Bearing | Double |
| Wheels | 4 |

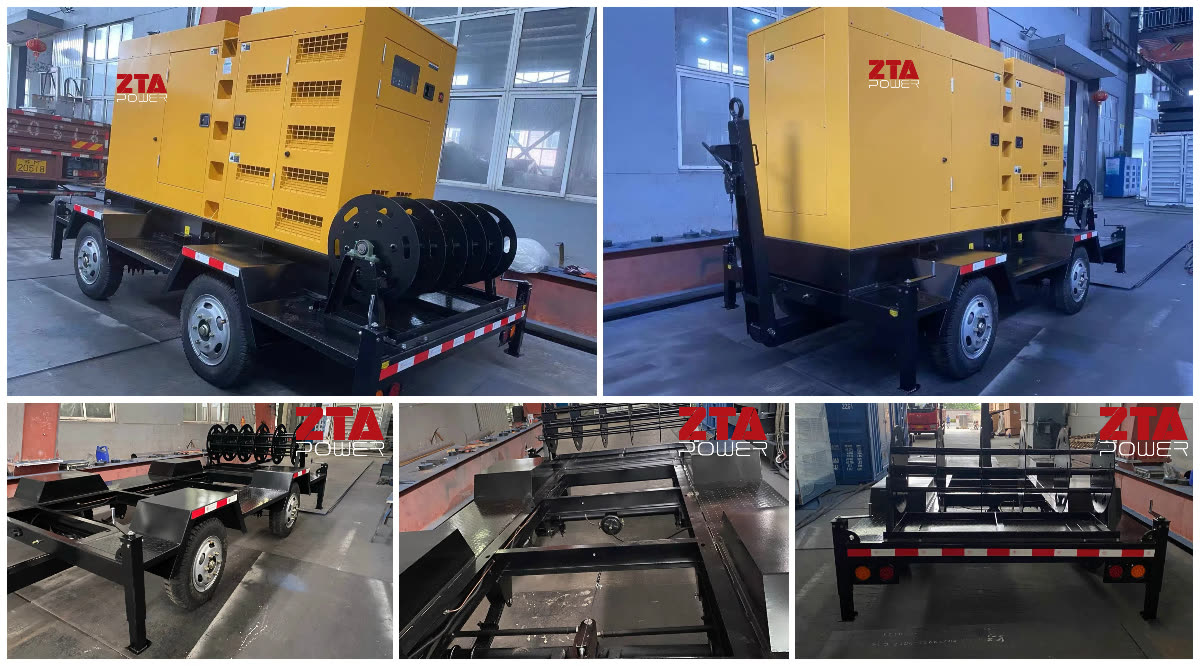

1.Tandem Axle 4-Wheel Configuration
2.Front Support Guide Wheel
3. Height-Adjustable Towing Mechanism
4.Suspension Options
5. Triple Braking System
6. Rear Lighting Electrical Assembly
Prime Power 200kw/250kva Use Cummins Engine 6LTAA8.9-G2 With Leroy Somer LSA46.3S5 Alternator
|
Genset Specs |
|
| Prime Power |
200kw/250kva |
| Standby Power |
220kw/275kva |
|
Engine Specs |
|
| Cummins Diesel Engine Model |
6LTAA8.9-G2 |
|
Prime Power |
220kw |
|
Standby Power |
240kw |
|
No. of Cylinder |
6 |
| Governor Type |
Electric Governor |
|
Aspiration |
Turbocharged and Charge Air Cooled |
| Bore×Stoke（mm) | 114×145 |
| Total displacement(L) |
8.9 |
| Fuel consumption at 100% full load (L/h) | 53 |
| Alternator Specs |
|
| Alternator Model | Leroy somer LSA46.3S5 |
| Prime Power | 200kw/250kva |
| AVR Standard | D250(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 0.25% |
| Options: | -F ilters on air inlet : derating 5%
- Filters on air inlet and air outlet (IP 44) : derating 10% - Winding protection for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Height fixing : H = 225 mm (option) with the order |
Prime Power 400kw/500kva Use Perkins Engine 1104C-44TAG2 With Stamaford LSA42.3M8 Alternator
| Genset Specs
|
|
| Generator Set Prime Power |
400kw/500kva |
| Generator Set Standby Power |
440kw/550kva |
|
Perkins Diesel Engine Specs |
|
| USA Perkins Diesel Engine Model |
2506C-E15TAG2 |
|
No. of Cylinder |
6 In Line |
|
Combustion system |
Direct |
|
Aspiration |
Turbocharged, air to air charge cooling |
| Bore×Stoke（mm) | 137×171 |
| Cubic capacity(L) |
15 |
| Fuel consumption at 100% full load (L/h) | 106 |
| Alternator Specs |
|
| Alternator Model | Leroy Somer TAL-A473-C |
| Prime Power | 400kw/500kva |
| AVR Standard | R150（Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
6 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
|
Altitude |
≤ 1000 m |
