The Kubota-Powered Mobile Lighting Tower Generator is a high-performance, all-in-one lighting and power solution designed for demanding industrial applications.
Brand:
ZTAItem NO.:
ZLT-P8Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
4-5 weeksWeight：

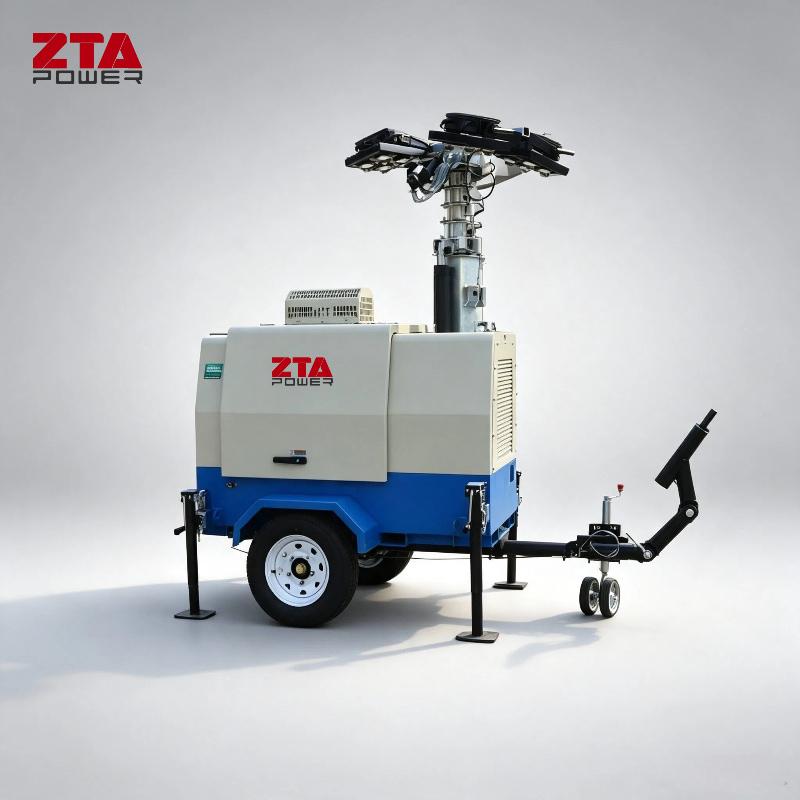

1500Mobile Lighting Tower with Diesel Generator - Power By Kubota Engine
In modern industries, construction, emergency response, and outdoor events, the importance of lighting equipment is self-evident. Particularly during nighttime operations or in low-light environments, reliable lighting solutions are critical to ensuring uninterrupted workflow and safety.
Compliance & Certifications
International Standards:
This mobile lighting tower system integrates four core components: a diesel generator set, lighting system, mobility solution, and control system, delivering reliable illumination for industrial applications.
1. Diesel Generator Set (Power Core)
8 output powers high-intensity lighting for large-area coverage
Industrial-grade diesel engine offers:
✓ Superior fuel efficiency
✓ Stable operation under continuous heavy-duty use
✓ Simplified maintenance protocols
Built-in safety protections:
✓ Low oil level alarm
✓ Overload auto-shutdown
✓ Voltage fluctuation protection
Kubota Diesel Generator Set - Product Description
| Kubota Diesel Engine Model |
Kubota D905/D1105 (Tier 4 Final compliant) |
|
Engine Output ( Prime Power) |
9.5kw |
|
Engine Output(Standby Power) |
12.9kw |
|
No. of Cylinder |
3 Vertical, water-cooled, 4-cycle diesel engine |
| Governor Type |
Mechanical |
|
Aspiration |
Naturally aspirated |
| Bore×Stoke（mm) | 78×78.4 |
| Total displacement(L) |
1.123 |
| Fuel consumption at 100% full load (L/h) | 3.2 |
| Alternator Model | Leroy somer LSA40VS1 |
| Prime Power | 8kw/10kva |
| AVR Standard | R220(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
2. Lighting System (Illumination Module)
Lamp options:
Adjustable optics:
✓ 350° horizontal rotation
✓ 90° vertical tilt
Environmental resilience:
✓ IP65-rated waterproof/dustproof housing
✓ Operates in -30°C to +55°C conditions
Lighting Tower Specifications
| Model | ZLT-P8 |
| Prime Power | 8 KVA |
| Frequency/Voltage | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Power Factor | 0.8 or 1.0 |
| Type | Mobile Soundproof |
| Max. dimension(working mode) | 2910*2600*9000 mm( L*W*H) |
| Min. Dimension(transport model) | 2150*1450*2550 mm( L*W*H) |
| Weight unfuelled | 1500KG |
| Fuel Type | Diesel |
| Tank thank capacity | 120L |
| Max. Continuouse running time | 60 Hours |
| Speed | Low Speed 25KM/H |
Professional Lighting System
| Mast Type | Hydraulic or Manual Type |
|
Mast Height(fully extended) |
6m (standard) / 9m (optional) telescopic mast |
|
Meterial of Mast |
Galvanized lron |
|
Mast sections |
3 |
|
Rotation |
350° |
| Power of Lamps | 4× 1000W LED (70,000 lumens) or Metal Halide |
| Trailer System | Low speed trailer, steel Torsion spring, jockey
wheel, telescopic prop stands, mudguard, stable towing, draw eye/towing couplin. |
|
Brakes |
Manual |
|
Auxiliary sockets |
2x16Amp, 1x32Amp |
|
Auxiliary input supply socket |
1x32Amp |
|
Tyres |
2x165R 13 |
| Power of Lamps | 4*350W LED or 4*1000W halogen lamp |
| Total Lumens | 250000-300000 |
|
Stablilisers |
Standard |
|
Fork pockets |
5 |
|
Protection Grade |
IP 54 |
3. Mobility System (Transport Solution)
Chassis construction:
• High-tensile steel frame
• Pneumatic off-road tires (All-terrain capability)
Deployment features:
✓ Standard tow hitch (80km/h road speed)
✓ Optional lifting points for crane handling
Terrain adaptability:
• Mud/sand/gravel operation
• Stabilizing jacks for uneven ground
4. Control System (Operation Interface)
Dashboard includes:
✓ Engine start/stop
✓ Digital power meters (V/A/Hz)
✓ Lamp group selector
✓ Fault indicator lights
Optional:
• Wireless remote control (100m range)
• GSM remote monitoring (4G capability)
✔ Prime Power Reliability – Designed for continuous operation (not just standby)
✔ Plug-and-Play Mobility – Towable for rapid deployment
✔ Low Maintenance – Perkins engine ensures long service intervals
✔ Versatile Lighting – Ideal for night shifts, emergency repairs, or large-area illumination
✔ Global Compliance – Meets ISO, CE, and EPA Tier 3 emissions standards
|
Feature |
Specification |
Benefit |
|
Power |
Kubota/Perkins engine |
Continuous operation capability |
|
Lights |
I4x 1000W LED (70,000 lumens) |
2-acre coverage area |
|
Mobility |
4-wheel torsion axle |
Rough terrain stability |
| Control | PLC smart panel | Real-time performance tracking |
This integrated system is engineered for 24/7 mission-critical lighting in:
• Construction - Night work, tunnel projects
• Emergency - Disaster recovery operations
• Oil/Gas - Remote drilling site illumination
• Municipal - Road maintenance operations
The Lighting Tower not only provides stable power supply for the lighthouse but also ensures its normal functioning during severe weather conditions.
