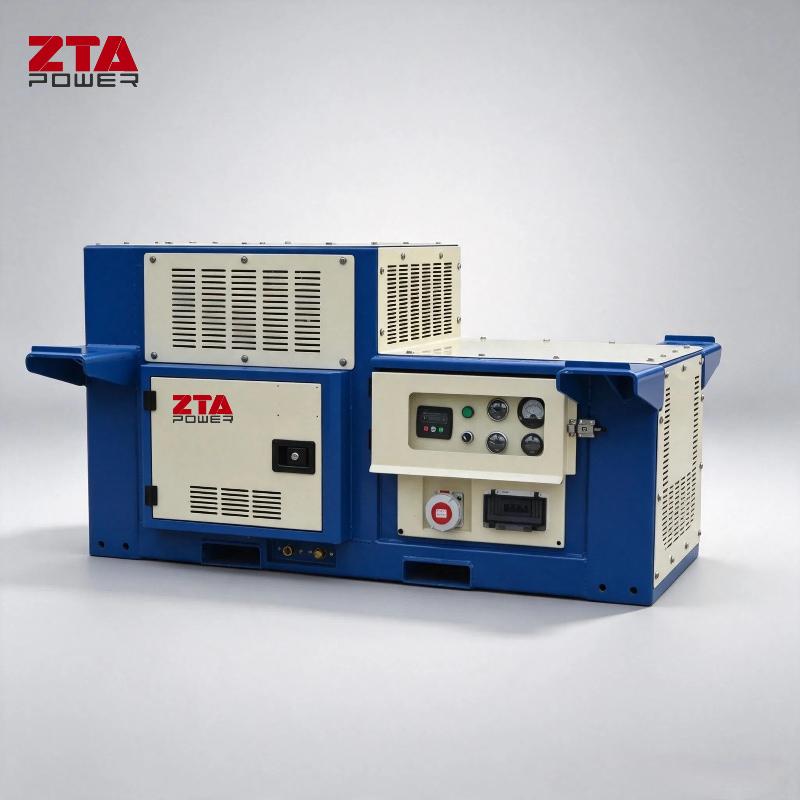

Reefer Container Under Slug Generator Set Powered by Perkins 404D-22G
The Under-Slung Reefer Container Generator Set with Perkins 404D-22G industrial diesel engine delivers optimized power for refrigerated shipping containers
Brand:
ZTAItem NO.:
ZRC-15UOrder(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
4-5 weeksWeight：
785Reefer Container Under Slug Generator Set Powered by Perkins 404D-22G
Engineered with a low-profile under-mount design, this genset maximizes cargo space while providing reliable prime power for temperature-sensitive shipments. Its vibration-isolated mounting system ensures smooth operation during transit.
Under-Slung Specific Design
Mounting System:
Bolt-on frame with rubber isolators (EN 12079 compliant)
250mm ground clearance for port operations
Corrosion Protection:
Triple-layer marine paint (400μm DFT)
Stainless steel fasteners
Perkins 404D-22G Diesel Engine Specs
| Perkins Diesel Engine Model |
404D-22G |
|
Engine Output ( Prime Power) |
22.8kw |
|
Engine Output(Standby Power) |
24.3kw |
|
No. of Cylinder |
4Cylinder Vertical in line |
| Governor Type |
Mechanical |
|
Aspiration |
Naturally aspirated |
| Bore×Stoke（mm) | 84×100 |
|
Cubic capacity(L) |
2.216 |
| Fuel consumption at 100% full load (L/h) | 6.2 |
| Kubota Diesel Engine Model |
Kubota V2203 |
|
Engine Output ( Prime Power) |
17.2kw |
|
Engine Output(Standby Power) |
20.1kw |
|
No. of Cylinder |
4 vertical in-line |
| Governor Type |
Mechanical |
|
Aspiration |
Naturally aspirated |
| Bore×Stoke（mm) | 84×90 |
| Total displacement(L) |
2.197 |
| Fuel consumption at 100% full load (L/h) | 4.8 |
| Alternator Model | MECCALTE NPE32VL4C |
| Prime Power | 20kw/25kva |
| AVR Standard | Inclduded |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V, 60HZ, 480/277V |
| Insulation Class | H |
| Number of Wires |
6 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
The NPE32 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
Intelligent Control System(UK Deepsea 3110) Key Features
Key Features |
Key Benefits |
|
Configurable inputs/outputs (6 digital inputs/4 outputs – 2 outputs configurable on magnetic pick-up variant). |
Provides multiple installation options. |
|
Remote start input |
Provides a simple connection to operate the generator from a remote location. |
| Comprehensive display parameters |
Provides instant notification of generator voltage, generator frequency, battery voltage, engine speed and run hours via one button navigation. |
| Engine pre-heat |
Warms the engine to a safe temperature at start-up to increase engine life |
| Configurable timers & alarms |
Provides excellent system flexibility |
| Large back-lit icon LCD display |
Displays information to the operator in a clear and concise format |
| DSE Configuration Suite PC Software |
Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring. |
Application Fields
1. Marine Refrigeration
2. Port & Intermodal Operations
3. Perishable Logistics
4. Military & Humanitarian
