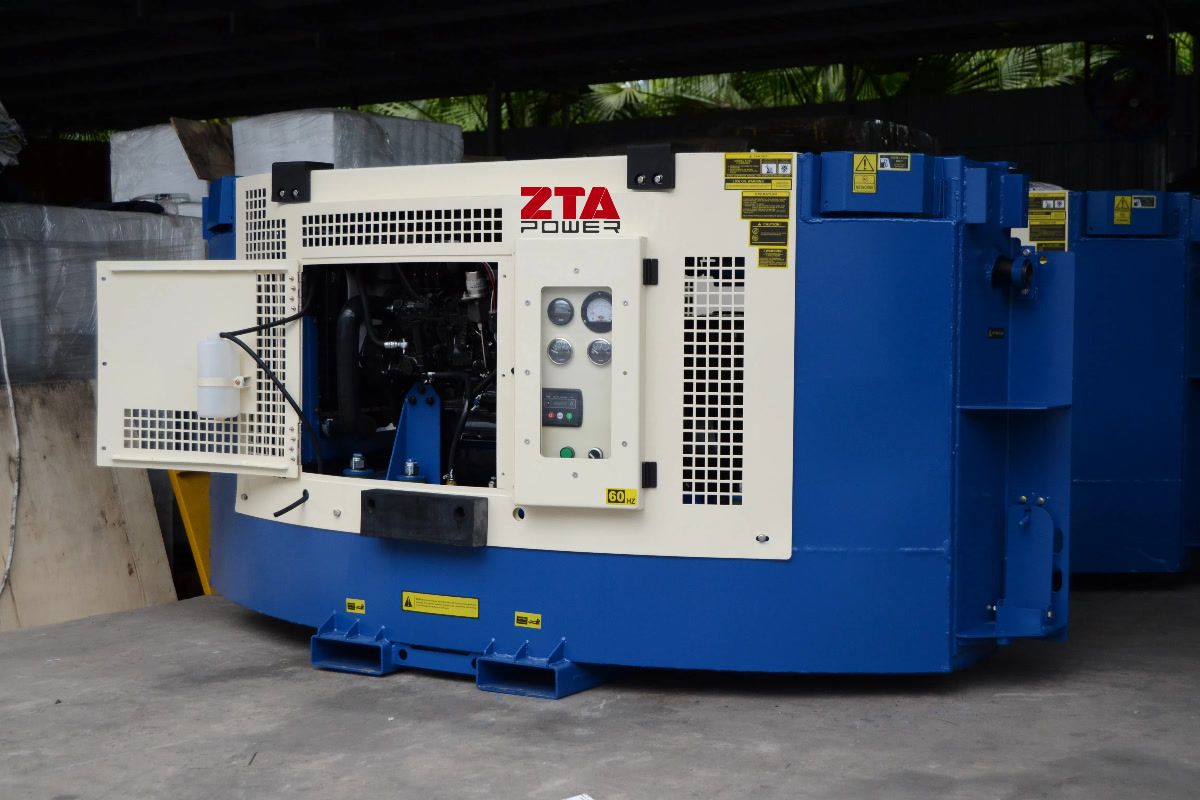

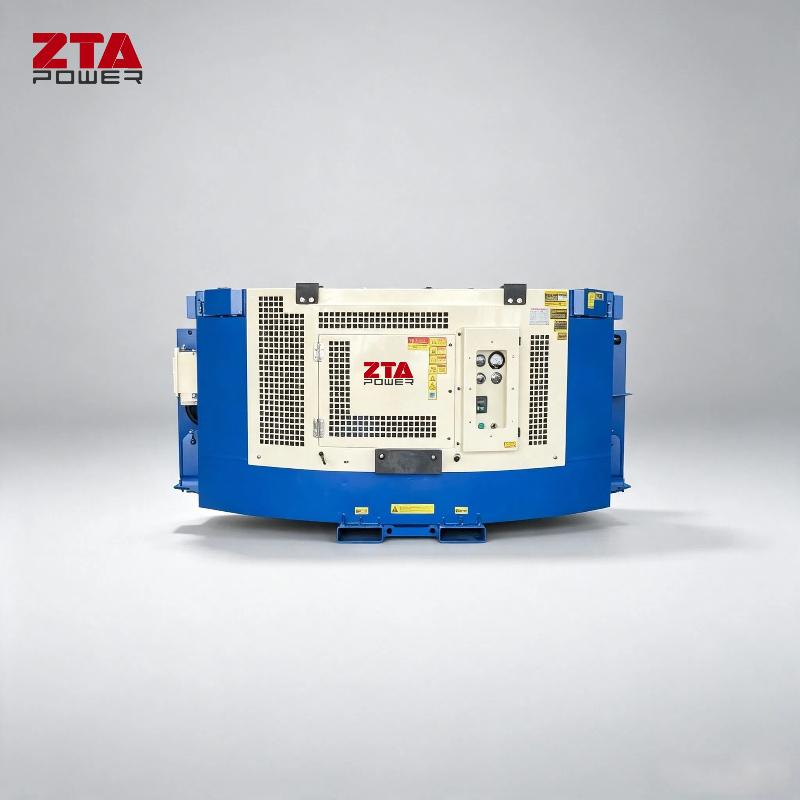

Prime Power 15kW Clip on Reefer Container Generator Set Powered by Mitsubishi
The Kubota-Powered Mobile Lighting Tower Generator is a high-performance, all-in-one lighting and power solution designed for demanding industrial applications.
Brand:
ZTAItem NO.:
ZRC-15Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
4-5 weeksWeight：
785Prime Power 15kW Clip on Reefer Container Generator Set Powered by Mitsubishi
The 15kW Clip-on Reefer Container Generator Set is a high-efficiency power solution specifically engineered for refrigerated shipping containers.This unit delivers reliable prime power for continuous cold chain operations. Its innovative clip-on mounting system allows direct attachment to container frames, optimizing space while meeting stringent marine and logistics requirements.
Mounting System:
Japan Mitsubishi S4Q2 Diesel Engine Specs
| Mitsubishi Diesel Engine Model |
Japan Mitsubishi S4Q2 |
|
Engine Output ( Prime Power) |
22.8kw |
|
Engine Output(Standby Power) |
24.3kw |
|
No. of Cylinder |
4Cylinder in line |
| Governor Type |
Mechanical |
|
Aspiration |
Naturally aspirated |
| Bore×Stoke（mm) | 88×103 |
| Total displacement(L) |
2.505 |
| Fuel consumption at 100% full load (L/h) | 7.1 |
| Perkins Diesel Engine Model |
Perkins 403A-15G2 |
|
Engine Output ( Prime Power) |
16kw |
|
Engine Output(Standby Power) |
18kw |
|
No. of Cylinder |
3 vertical in-line |
| Governor Type |
Mechanical |
|
Aspiration |
Naturally aspirated |
| Bore×Stoke（mm) | 84×90 |
| Total displacement(L) |
1.496 |
| Fuel consumption at 100% full load (L/h) | 6.2 |
| Alternator Model | Leroy somer LSA40 M5 |
| Prime Power | 20kw/25kva |
| AVR Standard | R220(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V, 60HZ, 480/277V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
Intelligent Control System(UK Deepsea 3110)
|
Digital Panel |
Protections |
|
LCD display (voltage/frequency/runtime) |
Low oil pressure shutdown |
|
Auto-start/stop with pre-heat cycle |
Overload current cutoff |
| Temperature gauge, Oil pressure gauge, on/off switch |
Reverse power detection |
Application Fields
1. Marine Refrigeration
Primary power for 20'/40' reefer containers
Backup during vessel power outages
2. Port & Intermodal Logistics
Yard operation of unpowered reefers
Temporary stacking area power
3. Perishable Cargo Storage
Pharmaceuticals/vaccine cold chain
Seafood/meat processing facilities
4. Military & Humanitarian
Mobile field refrigeration units
Disaster relief medical storage
Our Automatic Transfer Switch (ATS) ensures uninterrupted power supply by automatically transferring electrical loads between utility mains and backup generators during outages
