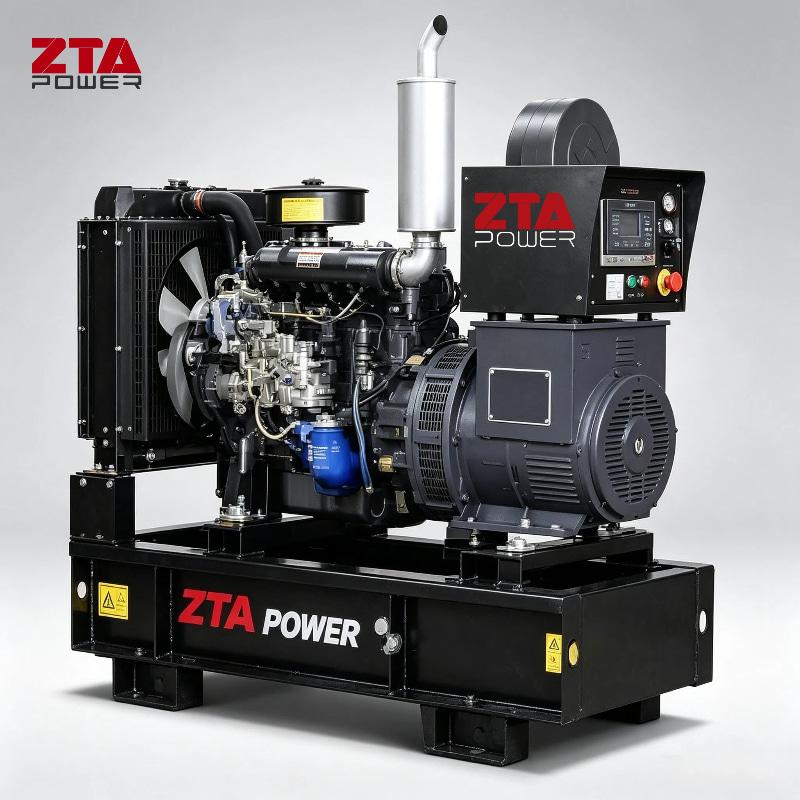

Generator Set 12KW 15KVA Power By Yangdong YND485D Engine
Powered by Yangdong’s YD Series High-Quality diesel engines, with the durability and low fuel consumption.
ZTA POWER Diesel Generator Set With Compeititve price with Hot Sale In the world Market.
Brand:
ZTAItem NO.:
ZYD16Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentPrice Range:
2200 - 2500/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
440Yangdong 13kw/16KVA Diesel Generator Set Power By YND485D Engine
YANGDONG CO.,LTD has passed ISO9001 international quality system certification and ISO/TS16949 quality system certification, small bore multi-cylinder diesel engine was the national product quality inspection certificates,some products certified by the U.S. EPA, the European Union Emark and CE certification
| Model | ZY18 |
| Prime Power | 12KW/15KVA; 13KW/ 16KVA |
| Standby Power | 14kw/18kva |
| Frequency/Voltage | 50HZ: 400/230V,380/220V,220/127V; 60HZ: 480/277V,440/254V,220/127V |
| Power Factor | 0.8 Or 1.0 |
| Optional | ATS And Synchronize Panel Also Supply |
| Type | Open Or Silent Type |
The Yangdong Diesel ENGINE Datasheet
YANGDONG CO.,LTD with "integrity, pragmatic, innovative" concept to provide high-tech, high-performance, high-quality products and first class service for the purpose, adhere to scientific and technological innovation, to become experts in power integrated solution.
| Yangdong Diesel Engine Model | YD380D |
| Type | Vertical,water cooling, four stroke |
| Combustion chamber type | Direct injector |
| Number of cylinders | 4 |
| Bore×Stoke（mm) | 85×95 |
| Total displacement(L) |
2.156 |
| Min.specific fuel consumption at full load | ≤5.05L/h |

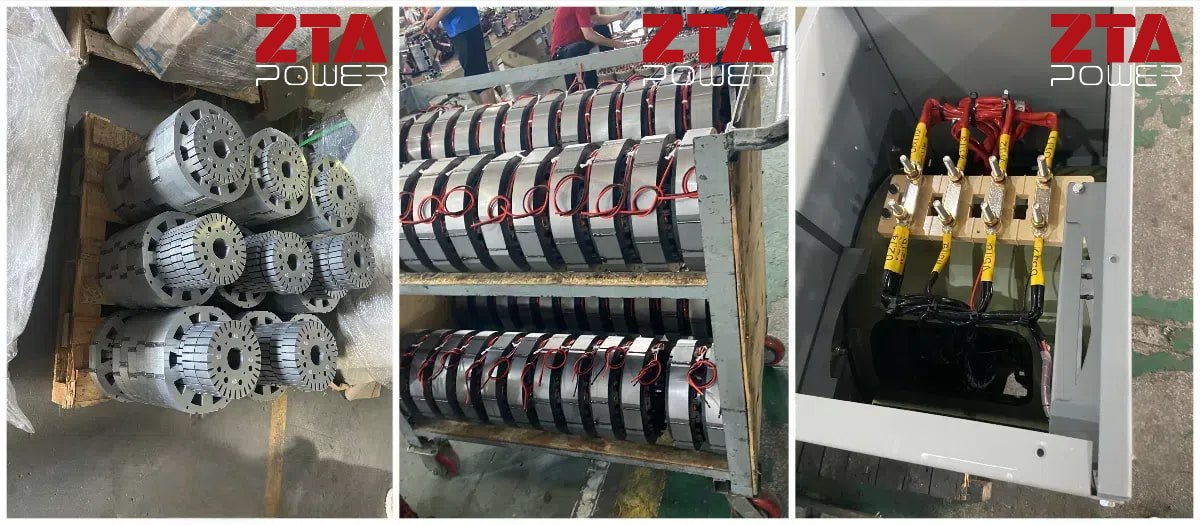

ZTA Power Alternator
| ZTA Alternator Model | ZA-12-4/12KW |
| AVR Standard | Included |
| Voltage Available | 480/277V, 400/230V, 380/220V,220/127V |
| Insulation Class | H |
| Number of Wires | 6 |
| Protection | IP 23 |
| Space Heater | Need on Extra Cost |
Diodes:
Silicon diodes with high surge current capacity for reliable AC to DC conversion.
Mounted on aluminum heat sinks for efficient thermal management.
Heat Dissipation:
Designed with forced-air cooling or integrated cooling fins to maintain optimal operating temperatures.
Excitation System
Brushless Excitation:
Utilizes a rotating rectifier and permanent magnet generator (PMG) for reliable, maintenance-free operation.
AVR (Automatic Voltage Regulator): Precision control of excitation current to maintain stable output voltage (±1% regulation).
Materials:
Copper windings for the exciter stator and rotor.
High-grade magnets in the PMG for consistent performance.
Control Panel
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| USB communication | √ | √ |
| CAN port | √ | √ |
| Event Log | 100 | 250 |
| Overspeed protection | √ | √ |
| Low oil pressure protection | √ | √ |
| High coolant temperature protection | √ | √ |
| Low fuel level alarm | √ | √ |
Circuit Breaker
| Standard | Included |
| Type | 3P/4P |
| Amper | 63A |
Core Features
1. Reliable:All series engines have passed though 2000 hours durability test.
2. Comfortable:small vibiation and low noise
3. Economy:low fuel consumption and oil consumption.
4. environmental protection：All meet China's diesel engine emissions requirements, some products meet the United States, Europe, India and other countries emission requirements.
5. Certification:IS09001-2000,TS-16949,EPA,E-MARK,CPCB,CE Certificates
Yangdong Power Generator Sets, manufactured by Jiangsu Yangdong Engine Co., Ltd., are renowned for their robust performance, fuel efficiency, and adaptability to various industrial and commercial applications. Designed to meet the needs of both prime and standby power generation, Yangdong generators are widely used in construction, agriculture, telecommunications, and emergency backup systems.
