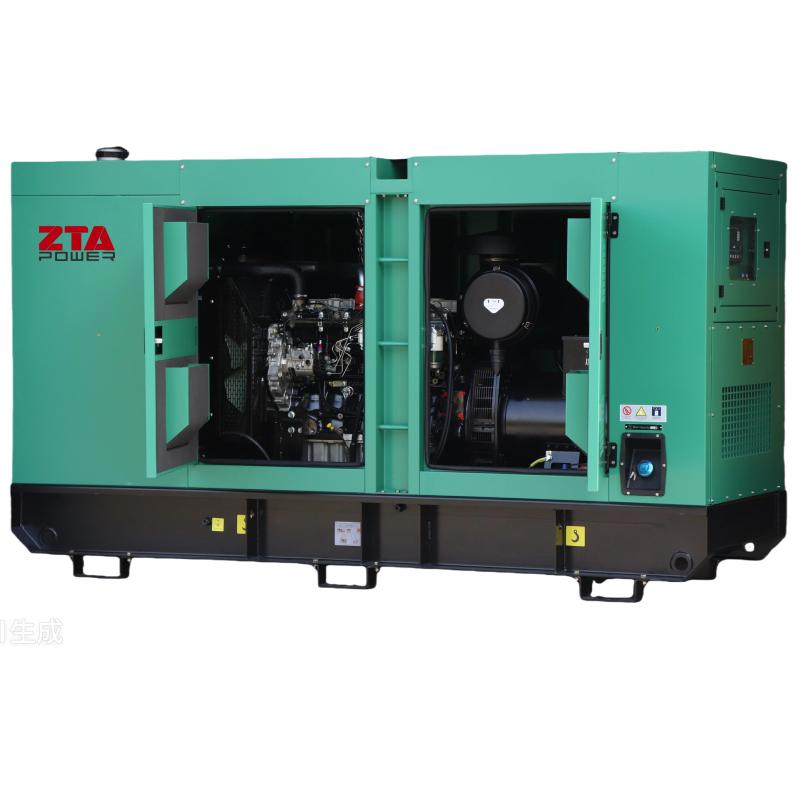

China Weifang KOFO 88KW 110KVA Standby Power Diesel Generator Set
Prime Power 80kW 100kva KOFO Genertor Set
Standby Power 88kw/110kva
China Kofo Engine Model: 4RT55-110D
ZTA Alternator Model: ZA-80-4
Brand:
ZTAItem NO.:
ZK110Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
1600China Weifang KOFO 80KW 100KVA Prime Power 88kw 110kva Standby Power Diesel Generator Set
The KOFO 80KW 100KVA Diesel Generator Set is engineered in Weifang, China – a global hub for advanced power equipment manufacturing. Built to deliver robust, uninterrupted power for industrial, commercial, and critical backup applications, this genset combines KOFO’s trusted engineering with rigorous quality standards. Whether you need prime power for remote operations or reliable standby backup for emergencies, this80KW (100KVA) diesel unit offers exceptional performance, fuel efficiency, and durability.
Generator Set Specification
Key Features & Technical Specifications:
Power Output:
80KW (100KVA) continuous output (prime power).
Standby Rating: Optimized for emergency backup (higher short-term capacity available).
Voltage: 220/380V, 400/230V, or customizable (50Hz/60Hz export-ready).
| Genset Model | ZK110 |
| Prime Power | 80KW/100KVA |
| Standby Power | 88KW/110KVA |
| Frequency/Speed | 50HZ/1500RPM, 60HZ/1800RPM |
| Standard Voltage | 400/230V,380/220V |
| Power Factor | 0.8 |
| Phases | 3 Phase 4 Wires |
| Manufacturer | XIAMEN ZTA POWER System Co.,Ltd |
KOFO 4RT55-110D Diesel Engine Datasheet
| Manufacturer |
Shandong KOFO POWER CO.,LTD. |
|
Engine Model |
4RT55-110D |
|
Type |
Vertical,water cooling, four stoke |
|
Combustion chamber type |
Direct injector |
|
Number of cylinders |
4 |
| Compression ratio |
17:1 |
|
Bore ×Stroke |
110 x 140mm |
|
Displacement (L) |
5.32 L |
|
Main specific fuel consumption rate at full load(g/kW.h) |
≤215 |
|
Starting Method |
ELectric |
Brushless, self-exciting, 4-pole alternator
Class H insulation, IP23 protection against dust/moisture.
Excellent voltage regulation (±1%) for sensitive equipment.
| Manufacturer | XIAMEN ZTA POWER SYSTEM CO.,LTD |
| ZTA Alternator Model | ZA-80-4 |
| Prime Power | 80kw/100kva |
| AVR Standard | Standard |
| Voltage Available | 50HZ: 415/240V,400/230V, 380/220V, 220/127V, 60HZ, 480/277V, 220/127V |
| Insulation Class | H |
| Number of Wires |
6 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
| Optional |
- Filters on air inlet: derating 5% - Filters on air inlet and air outlet (IP 44): derating 10% - Winding protections for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Steel terminal box |
Features:
1.Reliable AVR exciting system and optional permanent magnetic system always
Provide invaliable excitation on all occasions .
2. Easy to be connected with power network or parallel on the generators
3. Balanced rotor, sealed sing le and double ball bearings.
4. Convenient installation and
Easy maintenance, easy access to terminal, rotating rectifier and coupling bolts
5. Wide range of flang e adapter and coupling disc for single bearing
6. In conformity with all main land standard
|
Under the following Environment, the generator could running continuously |
|
|
Altitude |
≤1000m |
|
Cooling Air Temperature |
0-40℃ |
|
Relative air humidity |
≤90% |

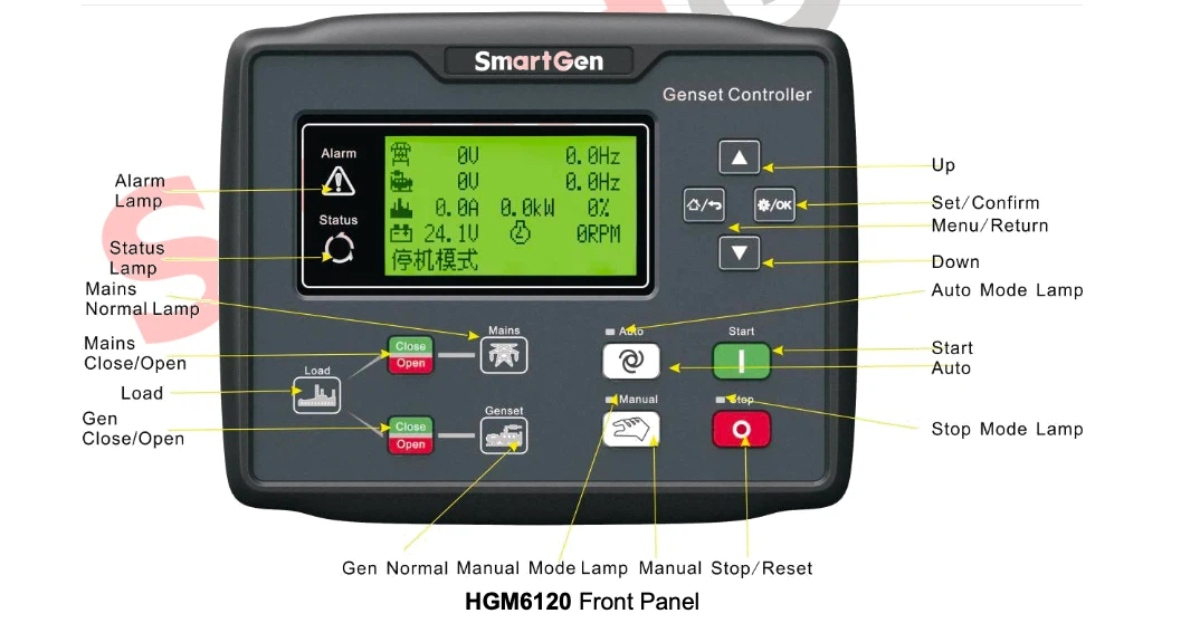

Advanced Control Panel
(UK Deepsea 6120 Also Available Base on Customer Need)
Digital control panels for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 |
||
| Display Language | 18 |
Fully configurable via PC using USB, RS232 & RS485 communication |
| USB communication | √ | Automatic load transfer control |
| CAN port | √ |
Generator current and power monitoring (kW, kvar, kVA, pf) |
| Event Log | 100 |
Mains current and power monitoring (kW, kvar, kVA, pf) (DSE7320 MKII only) |
| Overspeed protection | √ |
kW and kvar overload and reverse power alarms |
| Low oil pressure protection | √ | Over current protection |
| High coolant temperature protection | √ | Unbalanced load protection |
| Low fuel level alarm | √ |
Independent earth fault protection |
Circuit Breaker Specification
| Manufacturer | Delixi |
| Capacity | 160A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 60A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
ATS Specification
| AMPER | 160A |
| Brand | Aisikai |
Easy Maintenance:
Front-access service points for filters, coolant, and oil.
Base uel tank (standard 180L, extended options available).
Extended service intervals (500+ hours).
Standard Supply Scope
| ① Auto Control Panel | ② Main Circuit Breaker |
| ③ Cooling Radiator | ④ 8 hours Base Fuel Tank |
| ⑤ One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⑥ Starting Motor |
| ⑦ Exhaust Silencer | ⑧ Starting Batter |
| ⑨ Float Battery Charger | ⑩ Flange |
Optional Supply Scope
| ① ATS | ② Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⑤ Elec.coolant Heater |
⑥ Oil drain Pump |
|
⑦ Trailer & Silent Canopy |
⑧ Synchronization System |
1. Rigorous Pre-Shipment Testing
Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements
2. Comprehensive Warranty Coverage
Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)
Free Parts Replacement: During warranty period
Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost
24/7 Response: Immediate troubleshooting upon notification
Standard 40FT HQ Container Generator Canopy Photo
