The Lighting Tower not only provides stable power supply for the lighthouse but also ensures its normal functioning during severe weather conditions.
Brand:
ZTAItem NO.:
ZLT-P10Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
4-5 weeksWeight：

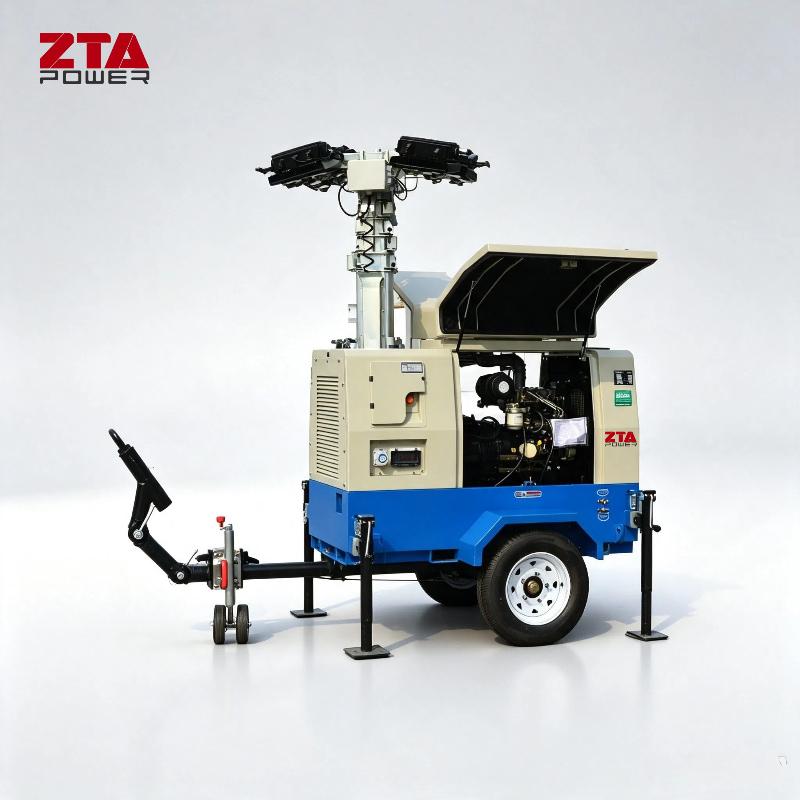

900Prime Power 10kva Mobile Lighting Tower Power By Perkins Engine
Advantages:
The Prime Power 10kVA Perkins Generator Set Mobile Lighting Tower is a high-performance, all-in-one power and lighting solution designed for construction sites, emergency response, and outdoor events. Combining a reliable Perkins diesel engine with a robust lighting tower, this unit delivers continuous prime power and superior illumination in demanding environments. Its mobile design ensures quick deployment, fuel efficiency, and durability for 24/7 operations
Compliance & Certifications
International Standards:
Lighting Tower Specifications
| Model | ZLT-P10 |
| Prime Power | 10KVA |
| Frequency/Voltage | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Power Factor | 0.8 or 1.0 |
| Type | 40FT HQ Standard Silent Container Type |
| Max. dimension(working mode) | 2910*2600*9000 mm( L*W*H) |
| Min. Dimension(transport model) | 2150*1450*2550 mm( L*W*H) |
| Weight unfuelled | 1500KG |
| Fuel Type | Diesel |
| Tank thank capacity | 120L |
| Max. Continuouse running time | 60 Hours |
| Mast Type | Hydraulic or Manual Type |
|
Mast Height(fully extended) |
9meter((from ground to top) |
|
Meterial of Mast |
Galvanized lron |
|
Mast sections |
3 |
|
Rotation |
360° |
| Power of Lamps | 4*350W LED or 4*1000W halogen lamp |
| Trailer System | Low speed trailer, steel Torsion spring, jockey wheel, telescopic prop stands, mudguard, stable towing, draw eye/towing couplin. |
|
Brakes |
Manual |
|
Auxiliary sockets |
2x16Amp, 1x32Amp |
|
Auxiliary input supply socket |
1x32Amp |
|
Tyres |
2x165R 13 |
| Power of Lamps | 4*350W LED or 4*1000W halogen lamp |
|
Stablilisers |
Standard |
|
Fork pockets |
5 |
|
Protection Grade |
IP 54 |
Perkins Diesel Generator Set - Product Description
| Perkins Diesel Engine Model |
403A-15G1 Or 403D-15G |
|
Engine Output ( Prime Power) |
12.2kw |
|
Engine Output(Standby Power) |
13.5kw |
|
No. of Cylinder |
3 |
| Governor Type |
Mechanical |
|
Aspiration |
Naturally aspirated |
| Bore×Stoke（mm) | 84×190 |
| Total displacement(L) |
1.496 |
| Fuel consumption at 100% full load (L/h) | 3.7 |
| Alternator Model | Leroy somer LSA40VS2 |
| Prime Power | 10kw/12.5kva |
| AVR Standard | R220(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
✔ Prime Power Reliability – Designed for continuous operation (not just standby)
✔ Plug-and-Play Mobility – Towable for rapid deployment
✔ Low Maintenance – Perkins engine ensures long service intervals
✔ Versatile Lighting – Ideal for night shifts, emergency repairs, or large-area illumination
✔ Global Compliance – Meets ISO, CE, and EPA Tier 3 emissions standards
|
Feature |
Lighting Tower Generator |
Conventional Generators |
|
Power Type |
Prime Power (24/7 capable) |
Standby Power Mostly |
|
Mobility |
Integrated lighting + generator |
Separate units required |
|
Lighting Control |
Adjustable mast & LED options |
Fixed lighting |
| Field of use | flexible | Stable |
