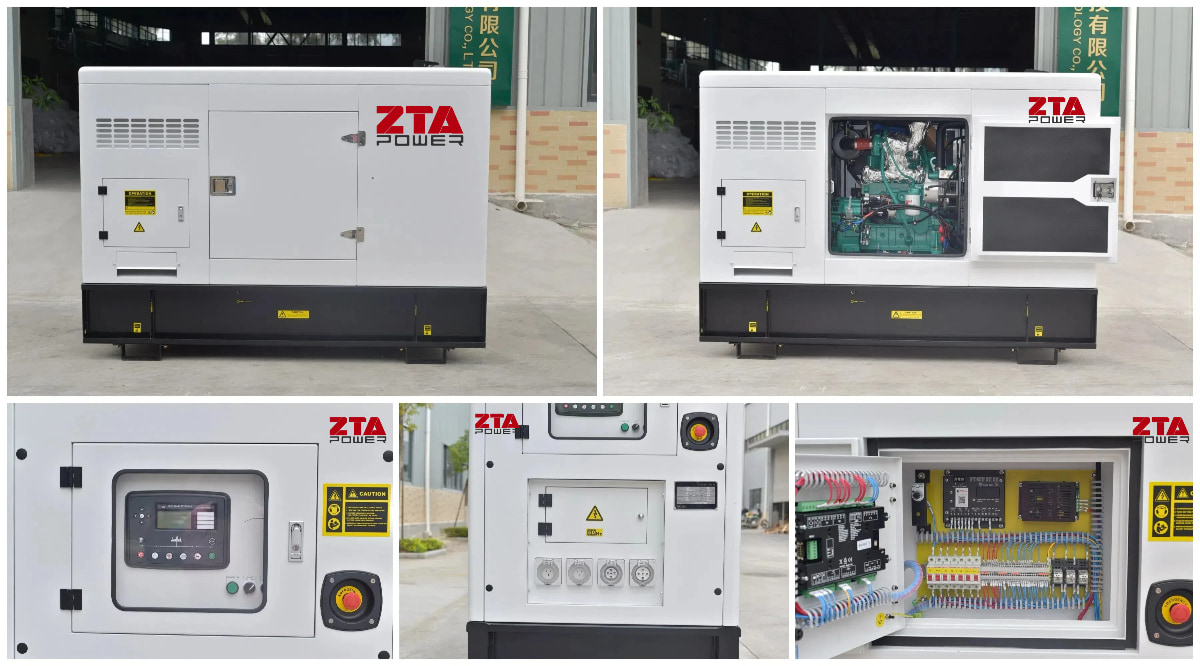

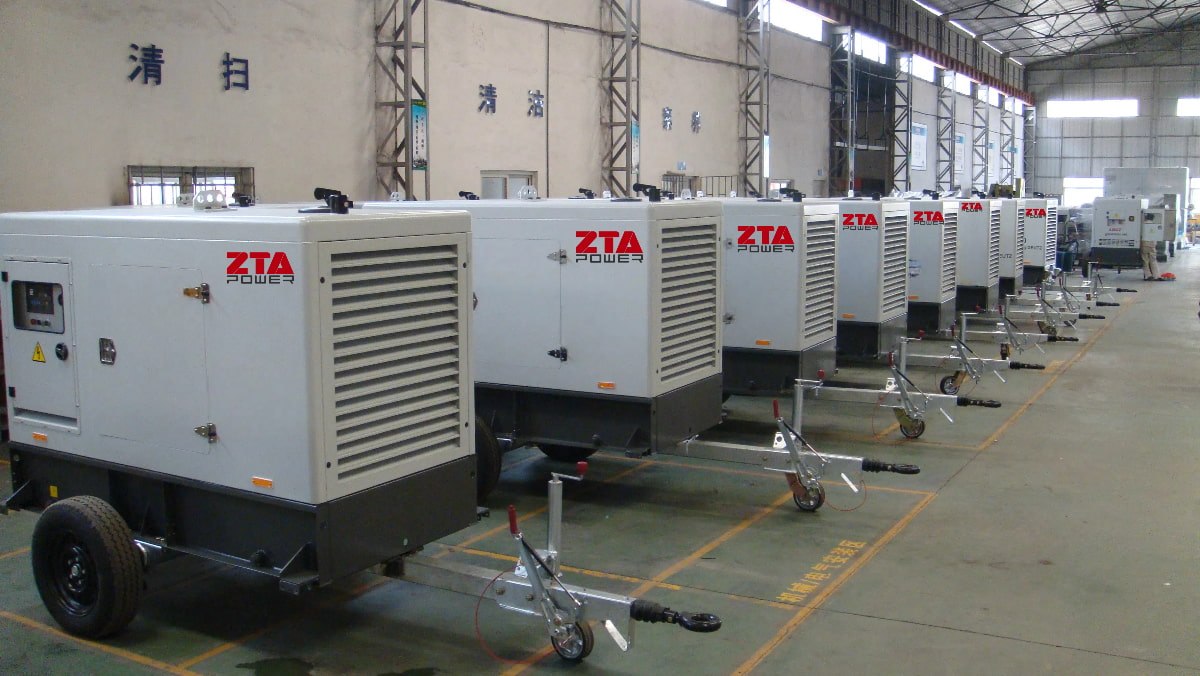

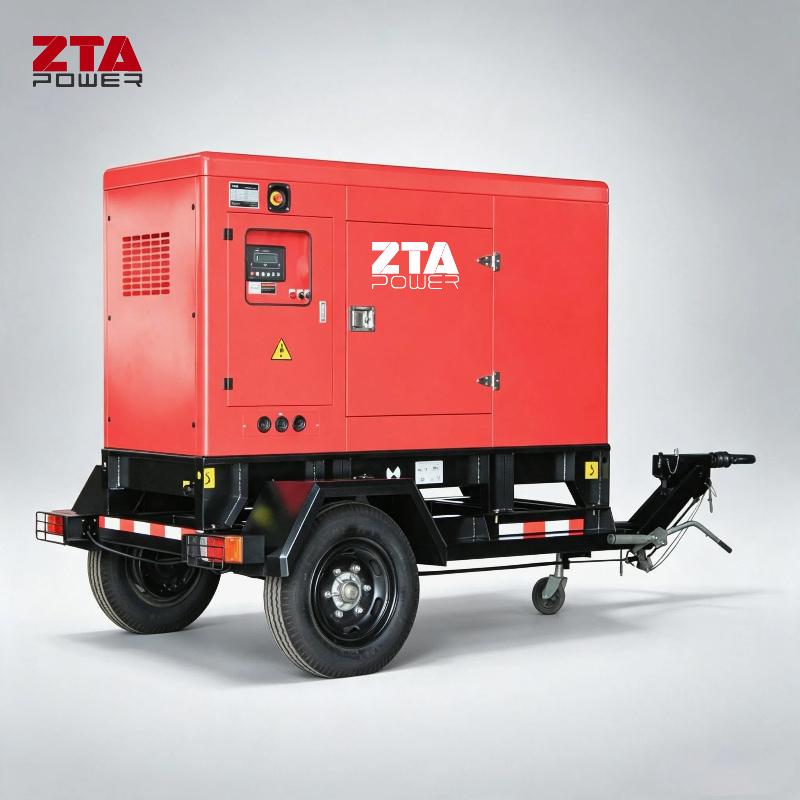

The Mobile Trailer Generator Set With 2 Wheels is a compact and easy-to-transport power solution, perfect for temporary or remote power needs
Brand:
ZTAItem NO.:
ZMB1Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4 weeksWeight：
2000Mobile Trailer Generator Set With 2 Wheels
It is designed to provide reliable electricity in various environments, from construction sites to outdoor events. The generator set is mounted on a sturdy 2-wheel trailer, ensuring easy movement and quick deployment.The generator set is mounted on a sturdy 2-wheel trailer, ensuring easy movement and quick deployment. It is equipped with a high-performance diesel or gas engine, advanced control systems, and user-friendly features, making it a top choice for industries requiring mobile power.
| Model | ZMB1 |
| Prime Power | 20KVA-125KVA Available |
| Standby Power | 88KW/110 KVA |
| Frequency/Voltage | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Power Factor | 0.8 |
| Type | Silent Type With Mobile Trailer |
| Trailer Bearing | Single |
| Wheels | 2 |
| Height Adjustable | Height adjustable traction mechanism |
| Steel Plate Spring | optional torsion bar bridge |
| Support Leg | Standard |
| Braking System | |
| Driving Inertia Brake | Standard |
| Uncoupling Emergency Brake | Standard |
| Parking Brake | Standard |
| Taillight Electrical Assembly | Standard |
Prime Power 40kw/50kva Use Cummins Engine 4BTA3.9-G2 With Leroy Somer LSA42.3M8 Alternator
|
Genset Specs |
|
| Prime Power |
40kw/50kva |
| Standby Power |
44kw/55kva |
|
Engine Specs |
|
| Cummins Diesel Engine Model |
4BTA3.9-G2 |
|
No. of Cylinder |
4 |
| Governor Type |
Direct injection |
|
Aspiration |
BYC A/Electronic Governor |
| Bore×Stoke（mm) | 102×120 |
| Total displacement(L) |
3.9 |
| Fuel consumption at 100% full load (L/h) | 215 |
| Alternator Specs |
|
| Alternator Model | Leroy somer LSA42.3M8 |
| AVR Standard | D220(AREP) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 0.25% |
| Options: | -F ilters on air inlet : derating 5%
- Filters on air inlet and air outlet (IP 44) : derating 10% - Winding protection for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Height fixing : H = 225 mm (option) with the order |
Prime Power 80kw/100kva Use Perkins Engine 1104C-44TAG2 With Stamaford LSA42.3M8 Alternator
| Genset Specs
|
|
| Generator Set Prime Power |
80kw/100kva |
| Generator Set Standby Power |
88kw/110kva |
|
Perkins Diesel Engine Specs |
|
| Perkins Diesel Engine Model |
1104C-44TAG2 |
|
No. of Cylinder |
4 In Line |
|
Type of injection |
Direct |
|
Aspiration |
Turbocharged, air-to-air charge cooled |
| Bore×Stoke（mm) | 160×190 |
| Total displacement(L) |
30.561 |
| Fuel consumption at 100% full load (L/h) | 22.6 |
| Alternator Specs |
|
| Alternator Model | Stamford UCI274C |
| Prime Power | 80kw/100kva |
| AVR Standard | MX321 |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 0.5% |
| Options: | Droop CT, Space Heater, Thermal Protection For Stator winding &/or bearing(PT100) |
1.Mobility and Flexibility:
The 2-wheel trailer design allows for easy transportation and relocation, making it ideal for temporary or remote power needs.
Can be deployed quickly to construction sites, events, or disaster recovery areas.
2.Cost-Effectiveness:
High fuel efficiency and low maintenance requirements result in lower operational costs.
Eliminates the need for permanent power installations, saving time and money.
3.Versatility:
Suitable for a wide range of applications, from industrial facilities to outdoor events.
Can be used as a primary, standby, or emergency power source.
4.Environmental Friendliness:
Low noise levels and reduced emissions make it an eco-friendly power solution.
Complies with global environmental standards.
5.Easy of Use:
User-friendly design with quick setup and operation.
Minimal maintenance required, reducing downtime.
The Mobile Trailer Generator Set With 2 Wheels is a compact and easy-to-transport power solution, perfect for temporary or remote power needs
Details
Due to the integration of soundproof enclosures and advanced mufflers, silent-type diesel generator sets operate with significantly reduced noise levels, making them ideal for noise-sensitive environments such as residential areas, hospitals, or offices.
Details
The Under-Slung Reefer Container Generator Set with Perkins 404D-22G industrial diesel engine delivers optimized power for refrigerated shipping containers
Details

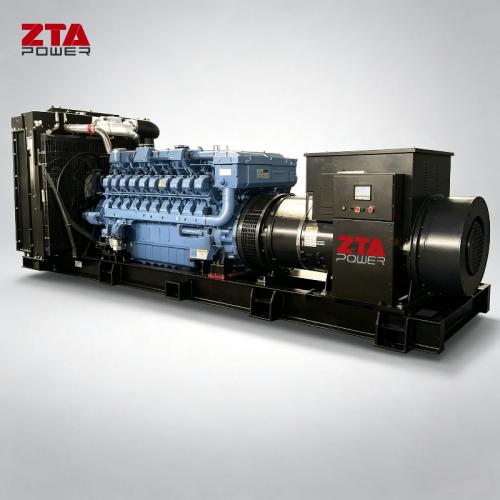

With a robust power output of 2500KW and an operating voltage of 13.8KV, this generator set is engineered to meet the highest standards of performance and durability.
Details

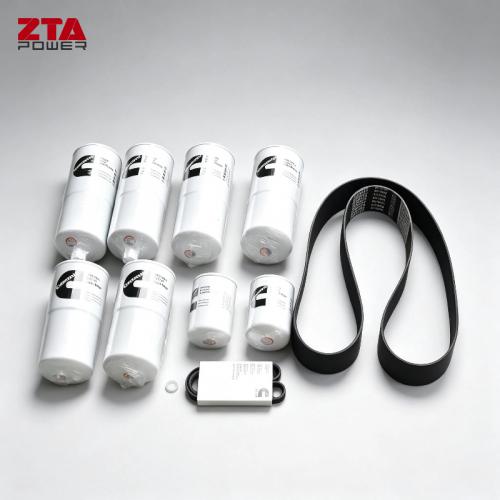

Cummins Genuine Filters: Peak Performance, Guaranteed. Optimize and protect your Cummins engine with authentic Cummins Genuine Spare parts Filters. Engineered to exact OEM specifications, our genuine air, fuel, oil, and hydraulic filters (including Fleetguard) ensure maximum filtration efficiency, engine longevity, and guaranteed compatibility. Trust only the best for your Cummins.
Details
HYUNDAI's dedication to quality, innovation, and sustainability sets us apart. Whether it's a vehicle, a piece of construction equipment, or a power generator, HYUNDAI products are designed to deliver superior performance and value
Details
The Perkins Generator Set combines robust engineering with exceptional reliability, delivering high-performance power solutions for industrial, commercial, and emergency applications. Powered by Perkins’ renowned diesel engines, these generator sets are designed for fuel efficiency, durability, and compliance with global emission standards (e.g., Tier 4 Final)
Details

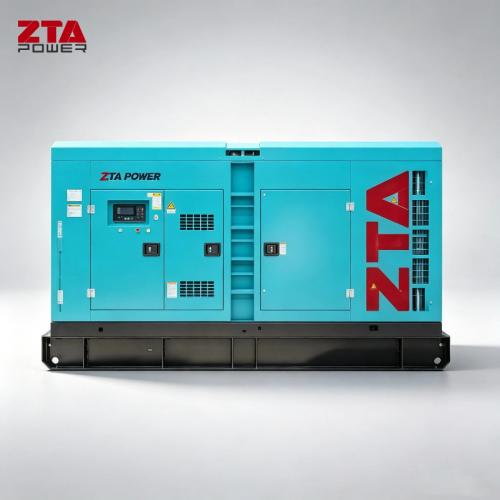

Experience uninterrupted power with our ultra-quiet generator, designed for low noise operation and high efficiency. Perfect for homes, offices, and outdoor events where peace and reliability matter most.
