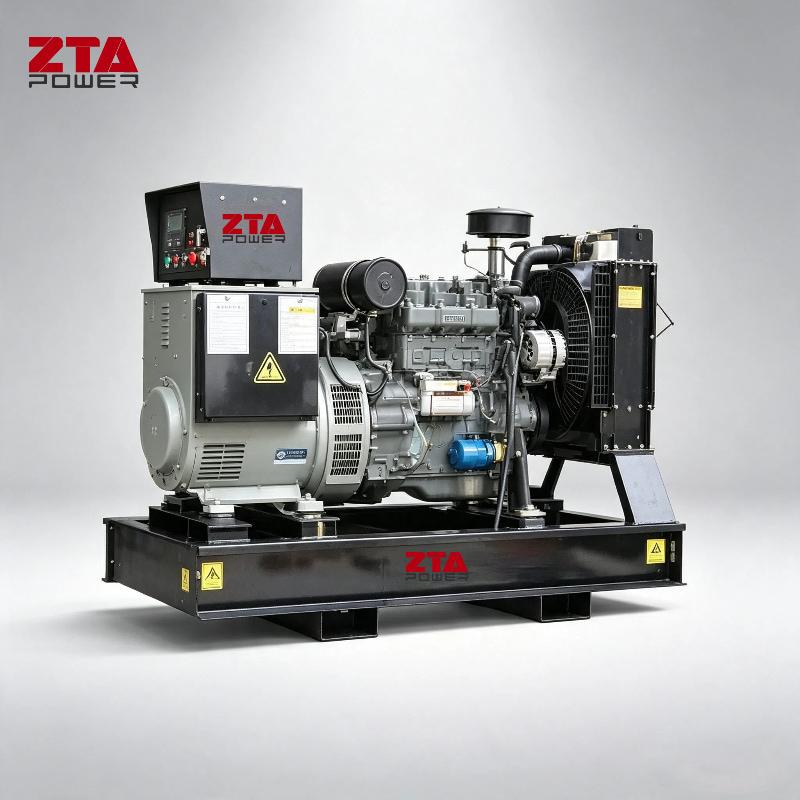

High-Efficiency 36kw 45KVA Diesel Generator Set Power By Weichai Deutz WP2.3D48E200
Brand:
ZTAItem NO.:
ZD50Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4 weeksWeight：
820Weichai Deutz Genset 36kw 45kva WP2.3D48E200
The Weichai Deutz Genset 36kw 45kva WP2.3D48E200 is a high-performance diesel generator set designed to deliver reliable and efficient power for a wide range of applications. Powered by the advanced WP2.3D48E200 engine, this genset combines the renowned engineering expertise of Weichai and Deutz to provide a robust and durable power solution. With a power output of 36kW (45kVA), this generator is ideal for both primary and standby power needs, ensuring uninterrupted operations in various environments.
| Model | ZD50 |
| Prime Power | 36KW/45KVA |
| Standby Power | 40KW/50 KVA |
| Frequency/Voltage | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Power Factor | 0.8 |
| Type | Open Or Silent Type |
The main features of the Deutz WP2.3D48E200 Engine
WP2.3D48E200, known for its high efficiency and low fuel consumption.The WP2.3D48E200 is a high-performance diesel engine developed through the collaboration of Weichai and Deutz, two globally renowned leaders in engine manufacturing. Designed for reliability, efficiency, and durability, this engine is a perfect choice for a wide range of industrial and commercial applications. With advanced engineering and cutting-edge technology, the WP2.3D48E200 delivers exceptional performance, making it a trusted power solution worldwide.
| Weichai Diesel Engine Model | WP2.3D48E200 |
| Type | 4-stroke, diesel |
| Governor Type | Electric Governor |
| Number of cylinders | 3 |
| Bore×Stoke（mm) | 105×120 |
| Total displacement(L) |
3.12 |
| Min.specific fuel consumption at full load | 12.35L/h |
Brushless Alternators
| Alternator Model | Leroy somer LSA42.3M7 |
| AVR Standard | D220(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Protection | IP 23 |
| Voltage Regulation | ± 0.5% |
| Options: | PMG, Droop CT, Space Heater, Thermal Protection For Stator winding &/or bearing(PT100) |
Advanced Control Systems
(Deif Brand SGC 420MKII, UK Deepsea 6120,Smartgen 6120,Comap AMF 25, ... ETC Also Available Base on Customer Need)
| Deif SGC420MKII | Deepsea 6120 | |
| Digital Inputs | 5 | 6 |
| Digital Outputs | 8 | 8 |
| Analog Inputs | 4 | 4 |
| Current Monitoring | 3 | 4 |
| Multiple Protection Parameters | 32-520V | 26-719V |
| RS485 Port | ✔ | ✘ |
| Zero Sequence Current | ✔ | ✘ |
| BTB Monitoring | ✔ | ✘ |
The WP2.3D48E200 Weichai Deutz Engine is a state-of-the-art power solution designed to meet the needs of modern industries. Whether for generator sets, construction, agriculture, or marine applications, this engine offers unmatched reliability, efficiency, and performance. Its compact design, low maintenance requirements, and global compliance make it a preferred choice for businesses and organizations worldwide.
