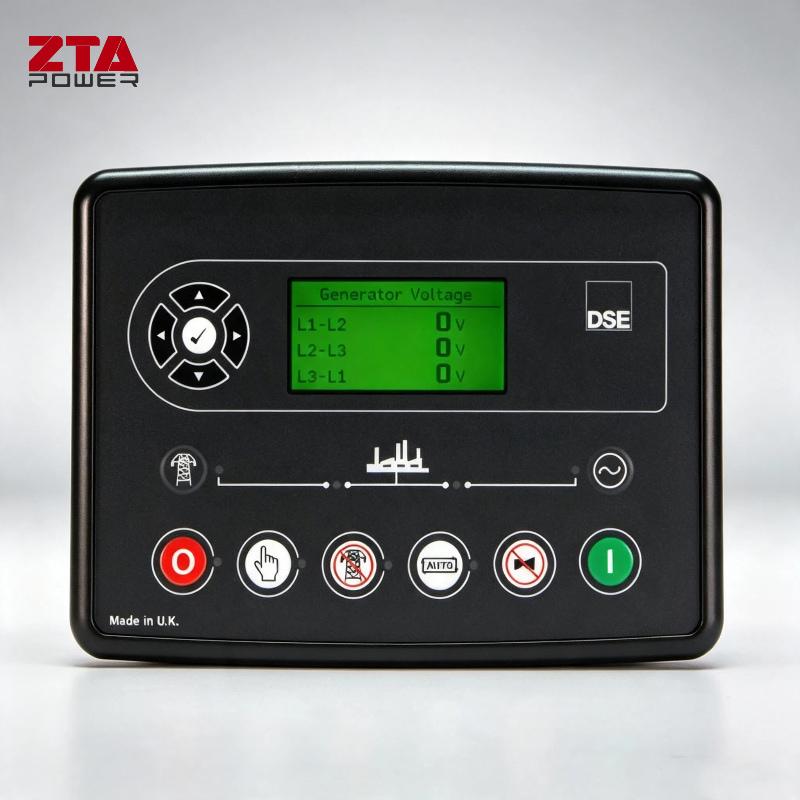

UK Deepsea 6120 7320 Controller For Generator Set

UK Deepsea 6120 7320 Controller For Generator Set

The Deepsea 6120 Controller is a professional-grade generator control module manufactured in the UK, designed for reliable automatic operation of diesel/gas generator sets

Brand:
ZTA
Item NO.:
ZDS6120
Order(MOQ):
1
Payment:
T/T 30%, 70% Before shipment
Product Origin:
China
Shipping Port:
Xiamen, China
Lead Time：
4-5 weeks
Weight：
1

Inquire Now

Product categories

New Products

Product Details

UK Deepsea 6120 7320 For Diesel Generator Set

The Deepsea 6120 7320 Controller is a professional-grade generator control module manufactured in the UK, designed for reliable automatic operation of diesel/gas generator sets. This microprocessor-based unit provides comprehensive AMF (Automatic Mains Failure) and ATS (Automatic Transfer Switch) functionality, ensuring seamless power transitions for critical applications.

Deepsea 7320 On Generator Set

Key Features & Technical Advantages

1. Intelligent Control System

Auto Start/Stop: Initiates generator during power outages within 1-3 seconds
Multi-Language Interface: 8 language options (English, Spanish, Arabic, etc.)
Remote Monitoring: RS485/Modbus RTU for SCADA integration

2. Protection & Safety

Critical Alarms: Low oil pressure, high coolant temp, overspeed
Advanced Protections: Under/over voltage, frequency deviation
Fault Logging: Stores 50+ event records with timestamps

3. User-Friendly Operation

128×64 Graphic LCD Display
One-Button Synchronization for parallel gensets
Customizable Setpoints: Voltage (190-480V), Frequency (45-65Hz)

4. Robust Construction

Operating Temp: -30°C to +70°C
Enclosure Rating: IP54 (NEMA 3R optional)
Vibration Resistance: 5G @ 10-150Hz

Application Fields

1. Industrial Power Systems

Manufacturing plant backup power
Mining equipment generators

2. Commercial Facilities

Hospital emergency power
Data center backup systems

3. Marine & Offshore

Ship auxiliary power control
Offshore platform generators

4. Infrastructure

Telecom tower power management
Water treatment plant backup

Climate Adaptations

Tropical: Conformal coating (95% humidity)
Arctic: -40°C cold start capability
Weight: 1KG
HS Code: 8537 10 90 (Control panels)

Competitive Advantages

✔ UK Manufacturing: Precision engineering with traceable components
✔ Plug-and-Play: Pre-configured for most generator brands
✔ Future-Ready: Firmware upgradable via USB

Optional Modules:

GSM remote monitoring
Parallel genset expansion kit
Explosion-proof enclosure (ATEX Zone 2)

Deepsea 6120 On Open Type Generator

Features of the Control Panel	Basic Model (Standard) UK Deepsea 6120	Advanced Model (Optional) UK Deepsea 7320

Display Language	18	18
Languages can be stored in the module	2	7
3level permissions via front panel edit	-	■
PIN Protection	■	■
Customisable power up text and images	■	■
Integral PLC editor	■ (1024)	■ (1024)
Supports escape mode	■	■
Redundant Feature	-	■
Dual Mutual standby	-	■
Internal buzzer	-	■
USB communication	■	■
RS232 port	-	■
RS485 port	■*	■
Ethernet port	■**	■**
SNMP protocol	■***	■***
CAN port	■	■
Modbus protocol	■	■
Expansion compatibility	■	■
Support Battery chargers	■	■
Analogue inputs	4	6
Digital inputs/outputs	8/8	8/10
Alternative configuration	2	6
Exercise Scheduler	■	■
Data Logging Facility	10	10
Event Log	100	250
Auto mains Failure	■	■
Cancel AMF detection	■	■
ATS Control	■	■
Closed transition support with check sync	-	■
Instrumentation suppression	■	■
Compatible with a wide range of CAN engines	■	■
DTC ignore	■	■
Support for 0V to 10 V Sensors	2	2
Support for 4mA to 20mA sensors	2	2

Features of the Control Panel	Basic Model (Standard) UK Deepsea 6120	Advanced Model (Optional) UK Deepsea 7320

Sensor open circuit	■	■
Overspeed protection	■	■
Low oil pressure protection	■	■
High coolant temperature protection	■	■
Low fuel level alarm	■	■
Abnormal fuel consumption alarm	-	■
Fuel usage monitor	-	■
Battery voltage protection	■	■
Start on low battery	■	-
Engine Pre--heat	■	■
Engine post-heat	■	■
Coolant heater control	■	■
Fuel pump control	■	■
Idle control for starting/stopping	■	■
Charge alternator failure alamr(D+)	■	■
Configurable maintenance alarms	■	■
Maximum AC Voltage	3	3
Power/Current detection	719	719
Over/under voltage protection	■	■
Over/under frequency protection	■	■
Phase rotation alarm	■	■
Overload /Low load protection	■	■
Fail to close alarm	-	■
Overcurrent protection	■	■
IDMT Alarm	■	■
Short circuit protection	■	■
Negative phase sequence protection	-	■
Earth fault protection	-	■
Reverse power protection	-	■
Positive/negative var	-	■
Filter voltage display	■	■
Supports High Voltage generator	■	■
Dummy load ocntrol	■	■
Delay load output	■	■
Load shedding control	■	■
Breaker control via fasciabuttons	■	■
Auto Breaker control	■	■
Instrumentation suppression	■	■

Standard ■ Not Available:⏤⏤

Optional:★

*indicates that DSE857 communication module needs to be added.

**indicates that DSE855 communication module needs to be added.

***indicates that DSE892 communication module needs to be added.

Deepsea 7320 On Silent Diesel Generator
