Diesel Generator Set Parallel Operation

Meaning of Diesel Generator Set Parallel Operation

I. Core Principles of Diesel Generator Set Parallel Operation

UK Deepsea 8610

The essence of parallel operation is to use a synchronization controller to ensure that the output voltage, frequency, and phase angle of multiple generator sets remain consistent, allowing them to be safely connected to the same busbar system. Key technologies include:

Voltage Synchronization: Before parallel operation, the output voltage deviation of each unit must be adjusted to within ±0.5% (according to IEEE 1547 standards). Failure to do so may cause circulating currents that damage equipment.

Frequency Synchronization: The frequency difference must be controlled within ±0.1 Hz, typically achieved by electronic speed governors that adjust the diesel engine speed in real time.

Phase Angle Synchronization: The phase difference must be less than ±5°, achieved through precise matching via synchronization detection devices (such as synchroscopes or automatic paralleling modules).
For example, when two 500 kW units operate in parallel, the total output power can reach 1000 kW. However, the load distribution error between the two units must be ≤5% (referencing GB/T 2820.5-2009) to prevent single-unit overload.

II. Technical Conditions and Operational Procedures for Parallel Operation

Hardware Requirements:

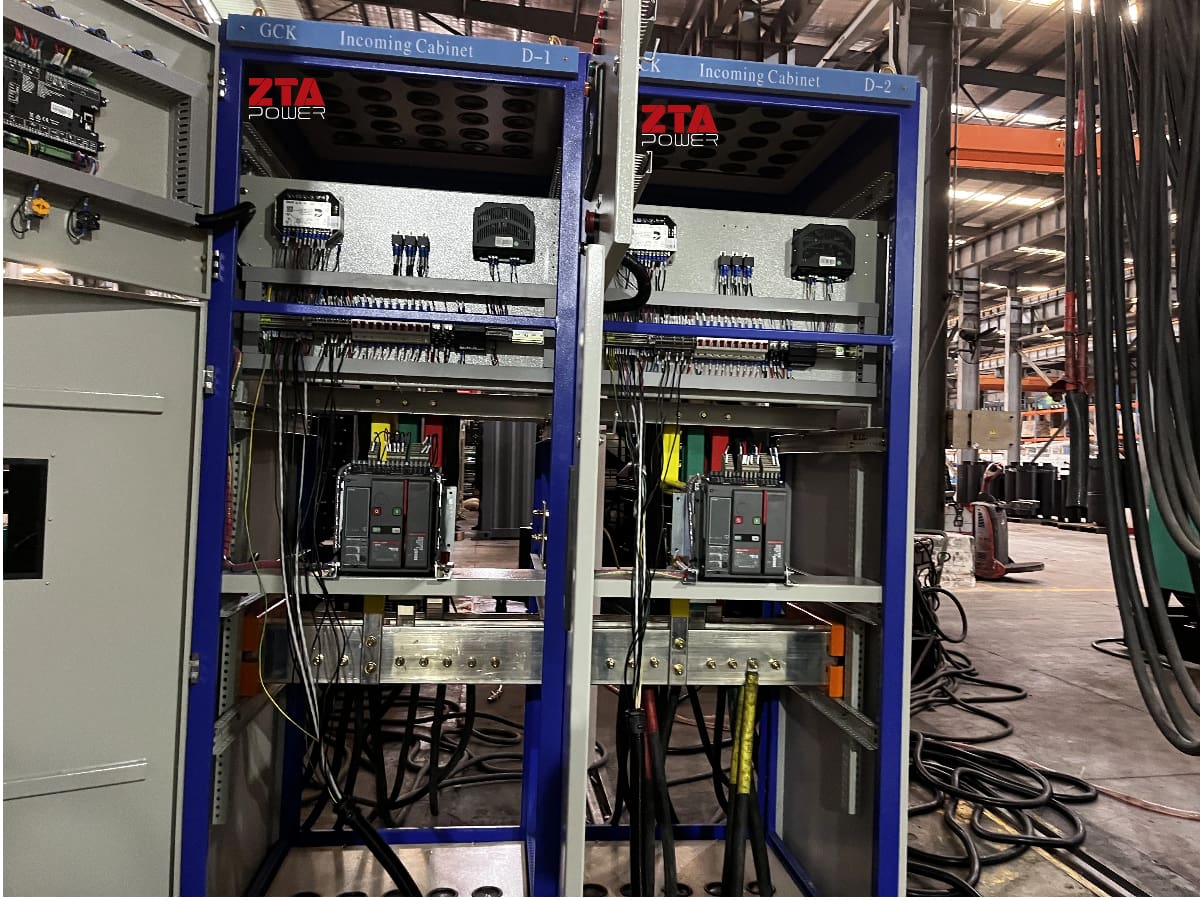

Generator sets must be equipped with a paralleling panel (including synchronizers and load-sharing modules);

The busbar system must meet short-circuit capacity requirements, typically with a 20% margin (according to IEC 61439 standards).

Operational Steps:

Pre-synchronization check: Ensure normal oil pressure and water temperature for all units, and consistent no-load voltage;

Synchronized closing: In manual mode, close the circuit breaker at the moment of phase coincidence observed via a synchroscope, or in automatic mode, let the controller complete the process;

Load distribution: After paralleling, balance the load distribution using active/reactive power regulators.

III. Application Scenarios and Advantages of Parallel Operation

Typical Scenarios:

Data centers: N+1 redundant configuration enables seamless switching in case of single-unit failure;

Ship power systems: Multiple units start and stop dynamically based on load demand, saving fuel (actual tests show a 15%-20% reduction in fuel consumption).

Comparison with Single-Unit Operation:

Improved reliability: The parallel system can maintain over 70% of the load even if one unit fails;

Economic optimization: Only some units need to operate under low load conditions, avoiding the "big horse pulling small cart" phenomenon.

Maintenance Points: Calibrate the synchronization controller every 500 hours and check the cable insulation resistance (≥1 MΩ).

Diesel generator set parallel operation is a complex yet highly efficient system engineering task. Strict adherence to technical specifications is required to achieve safe, stable, and economical operational results.
