How Generator Power Factor to Calculation, Correction and Improvement?

Power Factor

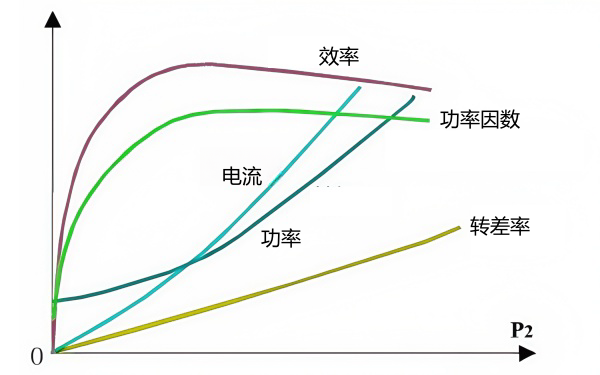

Power Factor (PF) is a crucial indicator in diesel generator sets for measuring electrical energy utilization efficiency. It represents the ratio of active power to apparent power. It reflects the degree to which electrical energy is effectively used and is typically expressed as a decimal or percentage. Cummins Generator details the calculation, correction, and improvement methods for power factor in this document for the reference of electrical engineers.

I. Definition and Calculation of Power Factor

1. Definition of Power Factor
The power factor is defined as:
Power Factor = Active Power (P) / Apparent Power (S)
(1) Active Power (P): The power that actually performs work, measured in Watts (W).
(2) Apparent Power (S): The product of voltage and current, measured in Volt-Amperes (VA).
The value of power factor ranges from 0 to 1 (or 0% to 100%). A power factor closer to 1 indicates higher electrical energy utilization efficiency.

2. Calculation of Power Factor
The Power Factor (PF) calculation formula is:
PF = P / S
Where: P ------ Active Power (Unit: Watts, W); S ------ Apparent Power (Unit: Volt-Amperes, VA)
It can also be calculated using the cosine of the phase difference angle (θ) between voltage and current:
PF = cos(θ)

3. Physical Meaning of Power Factor
(1) Under ideal conditions, voltage and current are in phase, the power factor is 1, indicating electrical energy is completely utilized effectively.
(2) In practical circuits, due to the presence of inductive or capacitive loads, a phase difference (θ) exists between voltage and current, causing the power factor to be less than 1. In this case, reactive power (Q) exists in the circuit, reducing electrical energy utilization efficiency.

4. Classification of Power Factor
Based on load characteristics, power factor can be divided into:
(1) Lagging Power Factor: Common in inductive loads (e.g., motors, transformers). Current lags behind voltage, the phase difference angle θ is positive.
(2) Leading Power Factor: Common in capacitive loads (e.g., capacitors). Current leads voltage, the phase difference angle θ is negative.

5. Importance of Power Factor
(1) Energy Efficiency: A lower power factor indicates a higher proportion of reactive power in the system, leading to more severe waste of electrical energy.
(2) Equipment Capacity: A low power factor increases the apparent power, leading to greater required equipment capacity.
(3) Line Losses: A low power factor causes an increase in line current, increasing line losses and heat generation.
(4) Electricity Costs: Many power companies charge additional fees to users with a low power factor.

6. Example of Power Factor
Assume a single-phase diesel generator set has a voltage of 220V, a current of 10A, and an active power of 1.5kW, then:
(1) Apparent Power: S = V × I = 220 × 10 = 2200 VA.
(2) Power Factor: PF = P / S = 1500 / 2200 ≈ 0.68 (or 68%).

II. Correction of Power Factor

Correcting power factor is typically achieved by compensating for reactive power. Common methods include:

1. Parallel Capacitors
(1) Principle: Capacitors provide leading reactive power to offset the lagging reactive power of inductive loads.
(2) Application: Suitable for generators, transformers, and other inductive loads.

2. Synchronous Condensers
(1) Principle: By adjusting the excitation current, a synchronous generator can provide leading or lagging reactive power.
(2) Application: Suitable for large industrial applications or diesel generator sets.

3. Static Var Compensator (SVC)
(1) Principle: Uses thyristor-controlled reactors and capacitors to dynamically compensate for reactive power.
(2) Application: Suitable for situations requiring fast reactive power compensation.

III. Improvement and Effects of Power Factor

1. Methods for Improving Power Factor
Improving the power factor not only enhances system efficiency but also reduces losses and electricity costs. Common methods include:
(1) Optimizing Equipment Operation: Avoid no-load or light-load operation of equipment like generators to reduce reactive power consumption.
(2) Using High-Efficiency Equipment: Select high-efficiency generators, transformers, etc., to reduce reactive power demand.
(3) Rational Design of Diesel Generator Sets: Plan the power distribution system rationally, reduce long-distance power transmission, and lower line losses.
(4) Regular Maintenance: Regularly inspect diesel generator sets and the power distribution system to ensure compensation equipment like capacitors is functioning normally.

2. Economic Benefits of Power Factor Correction
(1) Reduced Electricity Costs: A high power factor reduces reactive power losses, lowering electricity costs.
(2) Improved Equipment Utilization: Enhancing the power factor increases system capacity, reducing equipment investment.
(3) Reduced Line Losses: A high power factor lowers line current, reducing losses and extending equipment lifespan.

Summary:
Power factor is a key indicator for measuring electrical energy utilization efficiency, defined as the ratio of active power to apparent power. Therefore, the calculation, correction, and improvement of power factor are crucial steps in optimizing diesel generator sets. Through rational correction and improvement of the power factor, reactive power losses can be reduced, the operational efficiency of diesel generator sets can be optimized, and electricity costs can be lowered.
