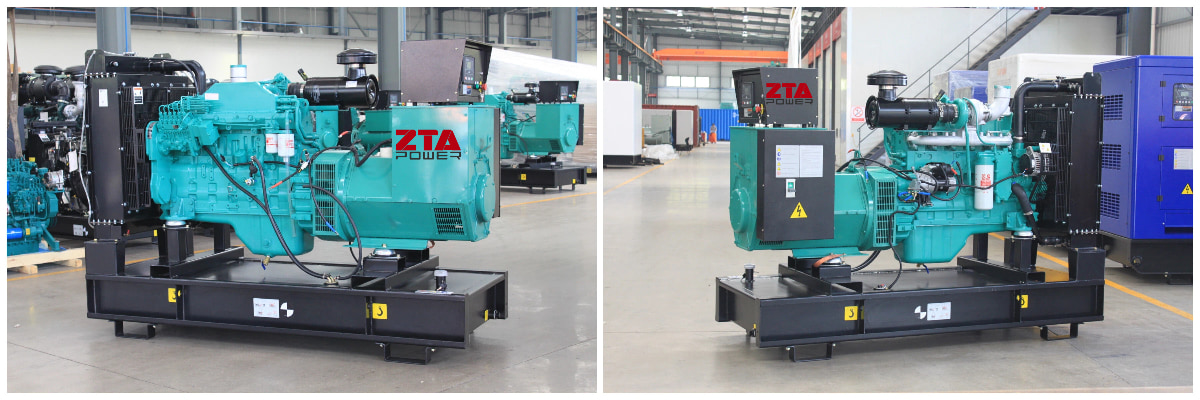

Cummins 160kw 200kva 6CTAA8.3-G2 Generator Set

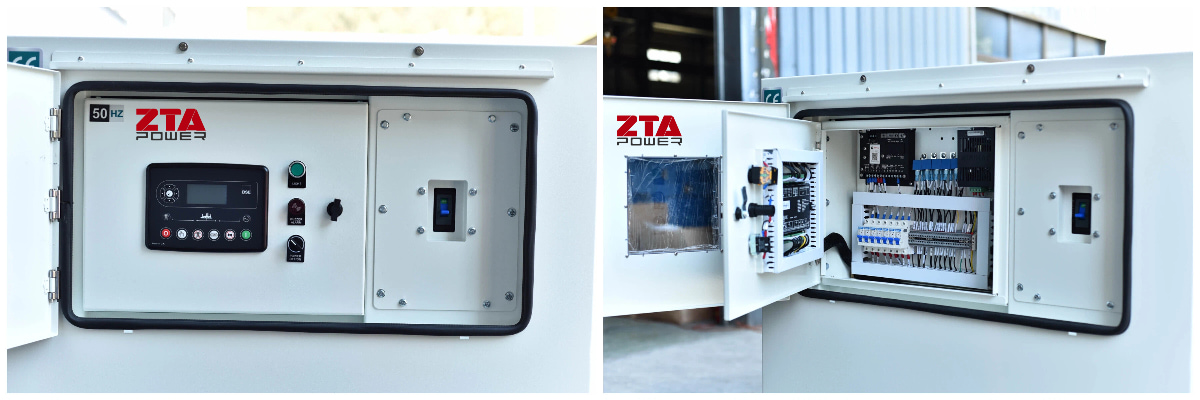

Advanced Control Panel

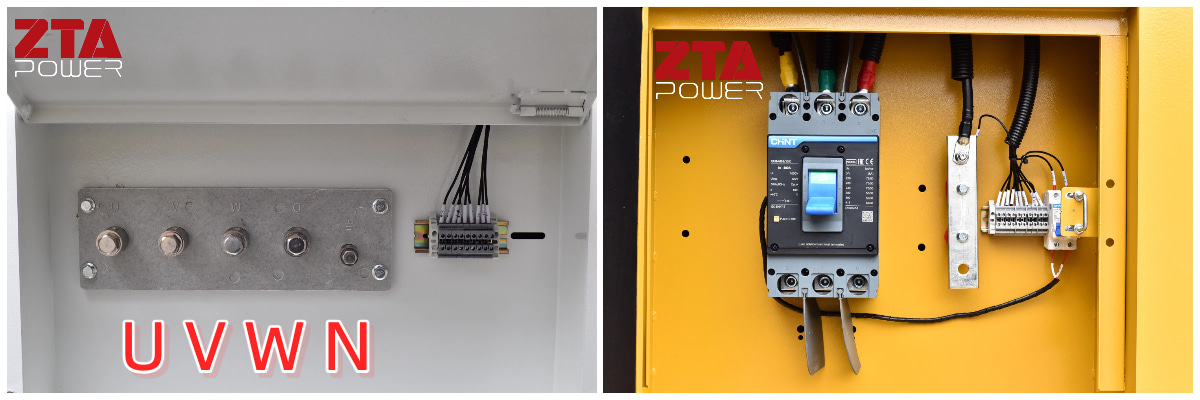

Circuit Breaker Specification

Core Applications: Providing Power Security for These Critical Sectors

This unit is the ideal power solution for:

Critical Infrastructure: Backup power for data centers, hospitals, and telecommunications hubs, preventing data loss, life-support system interruption, or communication blackouts.

Industrial Production: Providing continuous or standby power for production lines, automation systems, and precision manufacturing equipment, avoiding scrap, equipment damage, and order defaults due to outages.

Commercial & Construction: Ensuring the operation of lighting, elevators, security systems, and critical equipment in large shopping malls, hotels, office buildings, and construction sites during blackouts, maintaining operations and safety.

Municipal & Utilities: For water treatment plants and emergency command centers, ensuring continuous public service during natural disasters or emergencies.

Question And Answer:

Q1: What certifications are required to export this generator set to Europe/the USA?

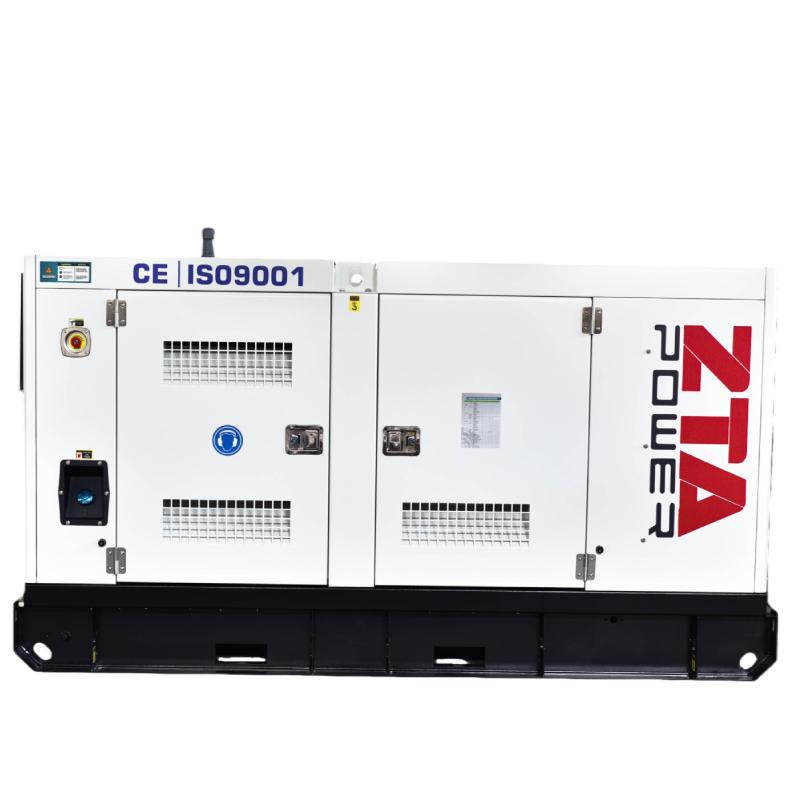

A: The Cummins 6CTAA8.3-G2 generator set platform is designed to comply with multiple international standards. To meet specific market requirements, it can be equipped with a complete solution carrying the CE Mark (for the EU) and ISO9001 Cert., Please specify your target market when ordering, and we will ensure the appropriate compliance kit is configured.

Q2: What is the specific fuel consumption rate of this unit?
A: Fuel consumption varies with load. At rated load (160kW), typical consumption is approximately 45 liters per hour (based on standard diesel) with 100% Load. We provide a complete fuel consumption curve to help you accurately calculate operating costs based on your actual load profile.

Q3: What is the warranty period you offer, and what does it cover?

A: We provide the standard OEM warranty, typically one year from commissioning or 1000 operating hours (whichever comes first). The warranty covers failures due to material or workmanship defects. Additionally, extended warranty plans can be purchased through the Cummins global service network for more comprehensive, longer-term coverage.

Q4: How loud is the unit during operation? Are there quiet options?

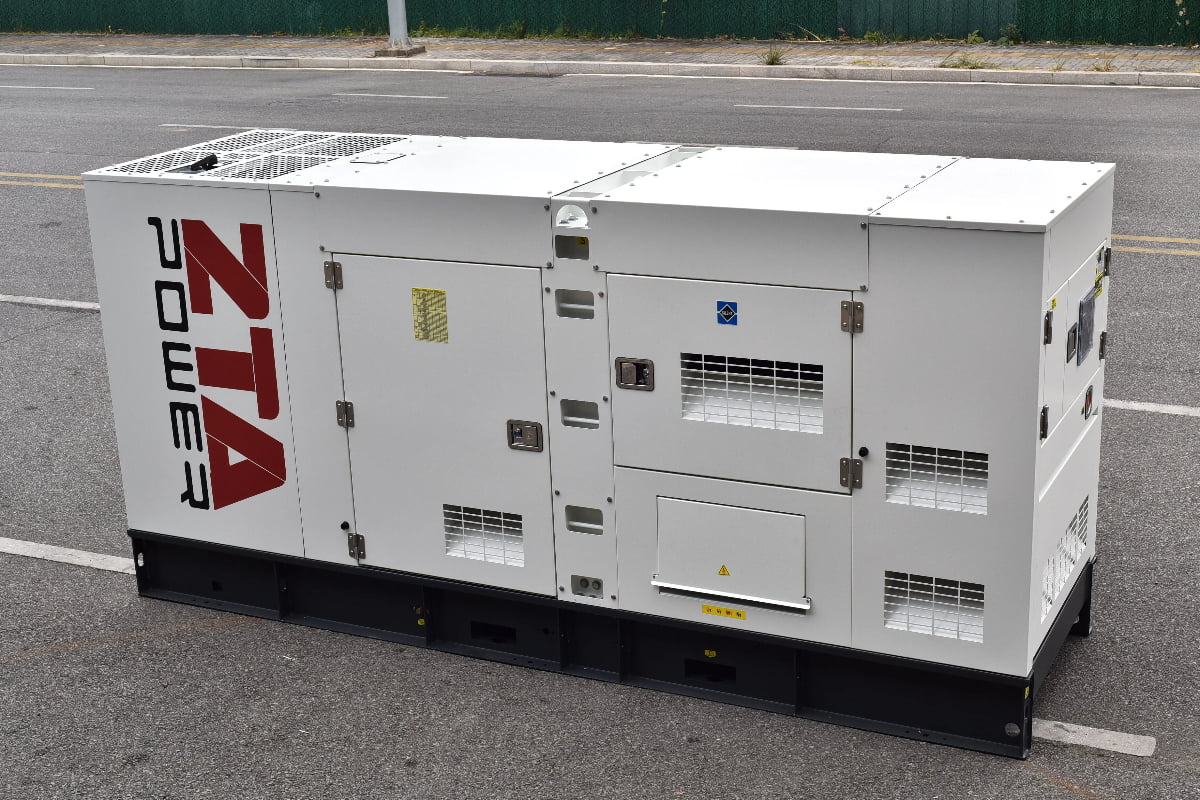

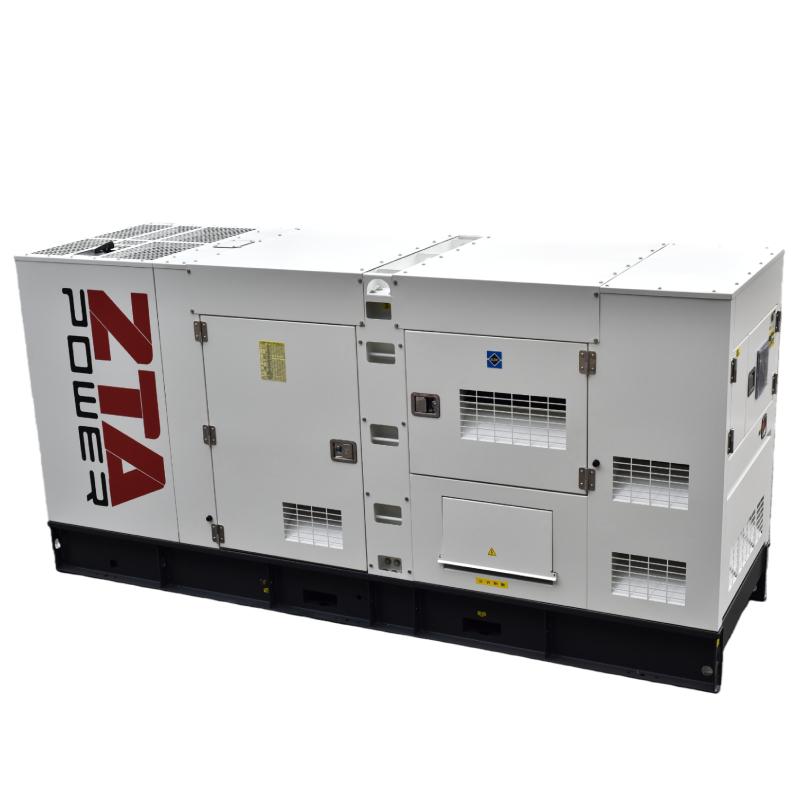

A: The standard open-set sound level is approximately 78-82 dBA at 7 meters. We offer high-efficiency acoustic canopy options that can significantly reduce noise to about 68-72 dBA (@7 meters), ideal for noise-sensitive urban environments, near residential areas, or hospitals.

Q5: How much space is needed to install this unit? What are the foundation requirements?
A: Recommended installation space should exceed the unit's footprint by at least 1.5 meters on each side for maintenance and cooling. The unit requires a level, reinforced concrete foundation with a mass 1.5 to 2 times the unit's weight to effectively absorb vibration. A detailed Installation Guide and foundation drawing are provided with the unit.

Q6: Is it compatible with my existing Automatic Transfer Switch (ATS)?
A: Yes. The Cummins 6CTAA8.3-G2 unit comes with a standard contact closure control panel that provides "Generator Ready" and "Alarm" signals, allowing easy integration with most Automatic Transfer Switches (ATS) on the market for fully automatic utility-generator switching.

Q7: What is the maintenance interval? Is routine maintenance complicated?
A: We recommend basic maintenance every 250 operating hours or 6 months (including oil and filter changes). Daily checks (e.g., coolant level, fuel level) are straightforward. Clear maintenance indicators and detailed user manuals make routine servicing simple.

Q8: Can it operate reliably in extremely cold or hot climates?
A: Yes. The unit can be configured with cold start aids (e.g., block heater, battery heater) for reliable starting in temperatures as low as -30°C. For high-ambient conditions (up to 50°C), configurations such as increased radiator capacity are available to ensure cooling performance.

Q9: If I need parallel operation or multiple units, is it supported?
A: Yes. By opting for a digital paralleling control module (e.g., ComAp InteliParallel), this unit can be paralleled with another identical or compatible unit to increase total capacity or provide redundancy, meeting higher power reliability requirements.

Q10: How can I access technical manuals and parts catalogs?
A: All registered customers can access their equipment's exclusive electronic technical manuals, parts catalogs, and service history through the Cummins online customer support portal (Quickserve Online). This is part of Cummins' global digital service support, ensuring you have the information you need, anytime, anywhere.

Request a Quote and Custom Technical Solution Today

Our power experts are ready to assess your needs and provide the most suitable configuration.

Why Choose Us? — More Than a Product, It's a 19-Year Commitment to Value

When you choose us, you gain:A power solution based on 19 years of expertise + A generator set over-engineered for long-term reliability + A service team cultured on rapid response and problem-solving + A comprehensive plan for lowering hidden costs throughout the asset's entire lifecycle.

We don't just sell generator sets; we sell "Peace of Mind" and "Worry-Free Operation." Let us become your trusted power partner.
