In traditional installation processes for diesel generator sets, the connection between the engine and the alternator primarily relies on a double-point linkage. The drawbacks of this double-point connection method include poor coaxial alignment, excessive noise, and susceptibility to wear in the connecting plate’s rubber gasket, which is also cumbersome to replace. Adopting a single-point connecting plate effectively resolves these issues. However, during the installation of diesel generator sets, it is crucial to verify the dimensions of the matching SAE interface; otherwise, installation may fail. In this article, Power Equipment will address some key questions regarding SAE interfaces.

1. Generator Set Assembly: Interface Compatibility is Critical

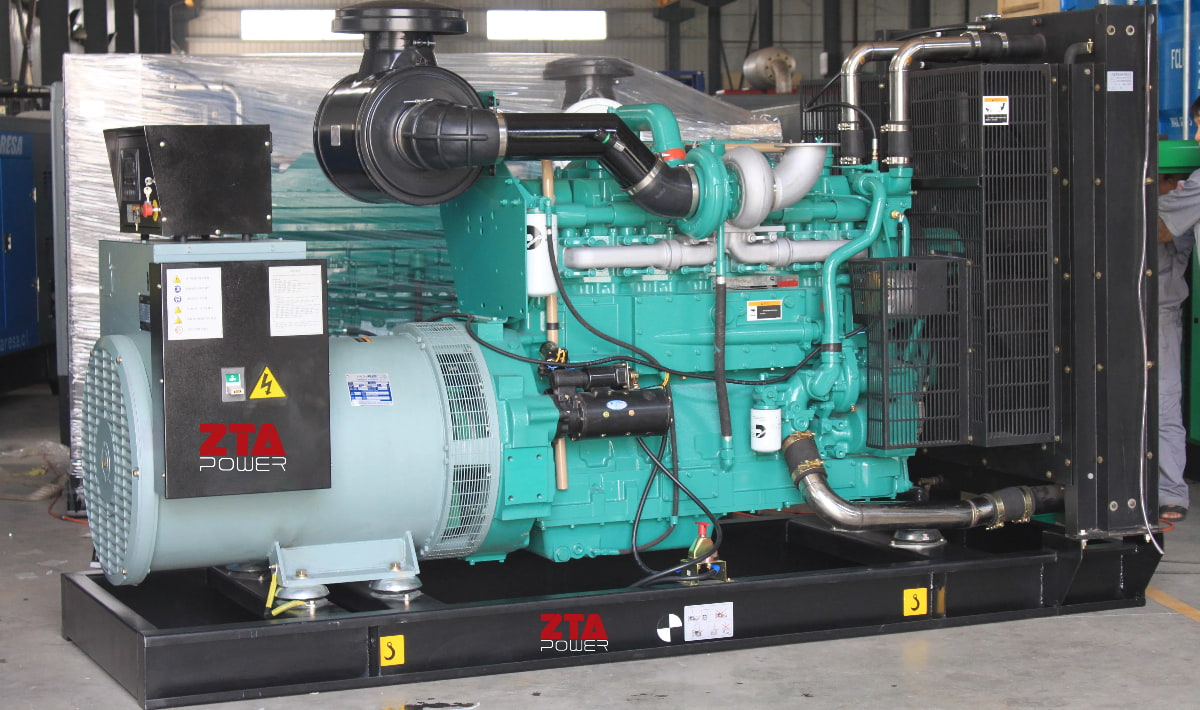

   A diesel generator set typically consists of an engine, alternator, radiator, controller, and base frame. The most critical aspect during assembly is ensuring compatibility between the engine and alternator interfaces. These interfaces are generally designed and manufactured according to the standards set by the Society of Automotive Engineers (SAE). This standard specifies the connection dimensions between the engine’s flywheel and flywheel housing and the alternator’s flange and adapter plate. Since all manufacturers produce engines and alternators to these standardized dimensions, components from different brands can be freely combined into complete sets.

2. Specify the Engine’s SAE Specification During ProcurementWhen procuring a generator set, the purchaser must clearly identify the engine’s SAE specification and request that the generator set manufacturer produce the unit accordingly. The SAE specification is provided by the engine manufacturer.

3. Units with Identical SAE Specs but Different Brands Are Generally Not Interchangeable

Diesel generator sets with the same SAE specification but from different brands are typically not interchangeable. This is because the SAE specification only defines a few critical connection dimensions for the flange and adapter plate, not all dimensions. Therefore, flanges and adapter plates produced by different manufacturers may vary in non-standardized dimensions, making them incompatible for cross-brand replacement.

The above outlines key considerations for SAE interfaces in diesel generator sets, compiled by Power Equipment for user reference. If you require further technical knowledge about diesel generator sets, please visit our website or contact us directly. We are committed to providing you with expert support.
