50Hz vs 60Hz Generator: How to Choose the Correct Frequency?

A practical guide for specifiers, EPC contractors and procurement teams selecting a diesel generator set or AMF generator set.

When specifying standby or prime power, one of the first—and most misunderstood—decisions is the electrical frequency. Whether you choose 50Hz or 60Hz determines engine speed, alternator winding, voltage standard and, ultimately, which diesel generator set is right for your site. This article explains the difference and shows you how to choose correctly—before you commit to a purchase.

1. What Does 50Hz / 60Hz Actually Mean?

Frequency is the number of AC cycles per second. A 50Hz generator set delivers 50 cycles per second; a 60Hz generator set delivers 60. For a standard 4-pole alternator, frequency is locked to engine speed:

50Hz → engine runs at 1500 rpm (synchronous speed)
60Hz → engine runs at 1800 rpm

The alternator must be wound and the AVR calibrated for the target frequency. A Stamford alternator with a matching Stamford AVR is the most common configuration in industrial diesel generator set applications.

Key takeaway: Frequency is not a setting you switch later. It is built into the alternator and engine governor. Choose it at the quotation stage.

2. 50Hz vs 60Hz: Side-by-Side Comparison

Parameter	50Hz Generator Set	60Hz Generator Set
Ideal 4-pole engine speed	1500 rpm	1800 rpm
Common voltages	400/230V, 415/240V	480/277V, 208/120V
Regional standard	Europe, Asia, Africa, Middle East, most of the world	North America, parts of South America, Japan (partial)
Typical alternator design	Lower speed, often longer lifespan	Higher speed, more compact
Best for	Export to EU/Asia/Africa projects	North American grid / equipment

3. How to Choose the Correct Frequency

3.1 Match Your Local Grid Standard

The simplest rule: match the utility you connect to. If your site in Asia or Africa ties to a 50Hz grid, specify a 50Hz diesel generator set. In the USA or Canada, you need a 60Hz generator set.

3.2 Match Your Connected Equipment

Motors, VFDs, clocks and some electronics are frequency-sensitive. Running 60Hz machinery on 50Hz supply causes overheating and wrong motor speed. Always verify the nameplate of critical loads before ordering.

3.3 Export & Turnkey Projects

For EPC and government tenders, the destination country's standard is non-negotiable. A containerized diesel generator built for 50Hz cannot simply be "converted" to 60Hz on site.

Common mistake: Assuming a generator can run at either frequency. Unless it is a purpose-built dual-frequency set, the alternator and engine speed are fixed. Mixing them damages equipment.

4. AMF Generator Set & Frequency Selection

An AMF generator set (Automatic Mains Failure generator set) automatically starts and carries the load when utility power fails, then transfers back when mains returns. The AMF panel continuously monitors frequency and voltage, so it must be configured for the correct 50Hz or 60Hz standard.

For seamless changeover, pair your AMF generator set with an automatic transfer switch (ATS) and a certified ATS controller. ZTA Power's AMF generator set range integrates the AMF panel, ATS controller and Stamford alternator into one factory-tested package—available as an open type diesel generator or a silent diesel generator set.

Specifier note: Confirm the AMF panel's frequency setting, the ATS controller rating and the alternator winding all match—50Hz or 60Hz—before factory dispatch.

5. Diesel Generator Set Frequency & Engine Choice

The most popular industrial diesel generator set platforms are the Cummins diesel generator set and the Perkins diesel generator set. At 1250 kVA, a Cummins diesel generator set built on the KTA50-G3 engine is a proven choice:

50Hz version: KTA50-G3 at 1500 rpm, 1250 kVA prime
60Hz version: same block derated/retuned to 1800 rpm for the North American market

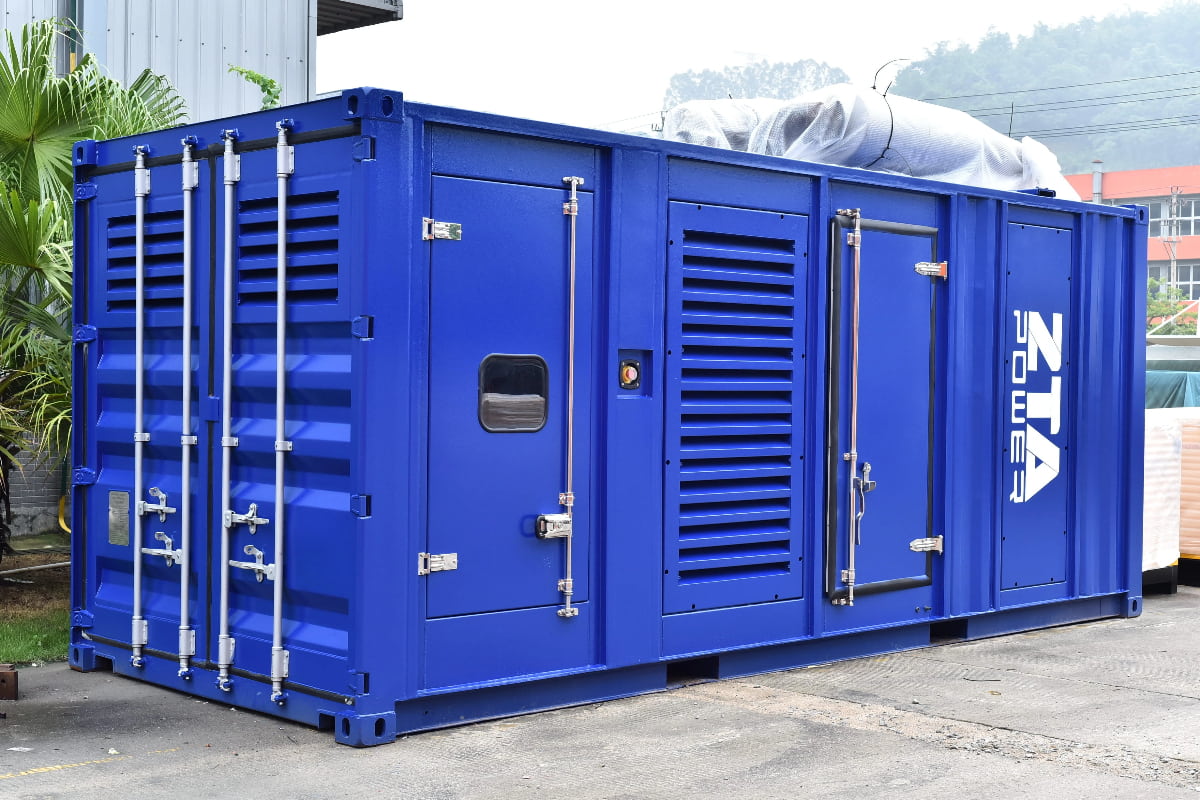

For noise-sensitive sites, specify a silent diesel generator set in a 20ft silent container or a larger containerized diesel generator enclosure. The soundproof generator enclosure reduces emitted noise while keeping the alternator and AVR within their rated frequency tolerance.

6. Frequently Asked Questions

Q: Can a 50Hz generator run at 60Hz?

A: It can be Customized. The alternator is wound for one frequency and the engine governor is set for one speed. Conversion requires re-winding the alternator and changing engine tuning—rarely economical versus ordering the correct diesel generator set.

Q: Does frequency affect the AMF generator set response?

A: Yes. The AMF panel must detect the correct frequency before syncing and transferring load. A mismatch prevents safe automatic changeover.

Q: Which is better, 50Hz or 60Hz?

A: Neither is "better"—correctness depends on your location and load. Choose the standard your grid and equipment already use.

7. Conclusion

Choosing between a 50Hz and 60Hz generator set is a foundation decision that affects engine speed, voltage, alternator design and AMF behaviour. Match your grid, match your equipment, and confirm the AMF panel and ATS controller settings before dispatch.

Cummins KTA50-G3 engine

Need a quote? ZTA Power supplies 50Hz and 60Hz diesel generator set, AMF generator set, silent diesel generator set and containerized diesel generator solutions built on Cummins, Perkins and Stamford platforms. Contact our team for a tailored quotation →
