HYBRID POWER STATION – SOLAR + BATTERY + GENERATOR INTEGRATION
Smart | Sustainable | Uninterrupted Power
Key Features:
Triple Power Source – Solar + Battery + Grid/Generator auto-switching
Scalable Capacity – 10kW to 1MW+ modular systems
Brand:
ZTAItem NO.:
ZHB200Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
1weeksWeight：

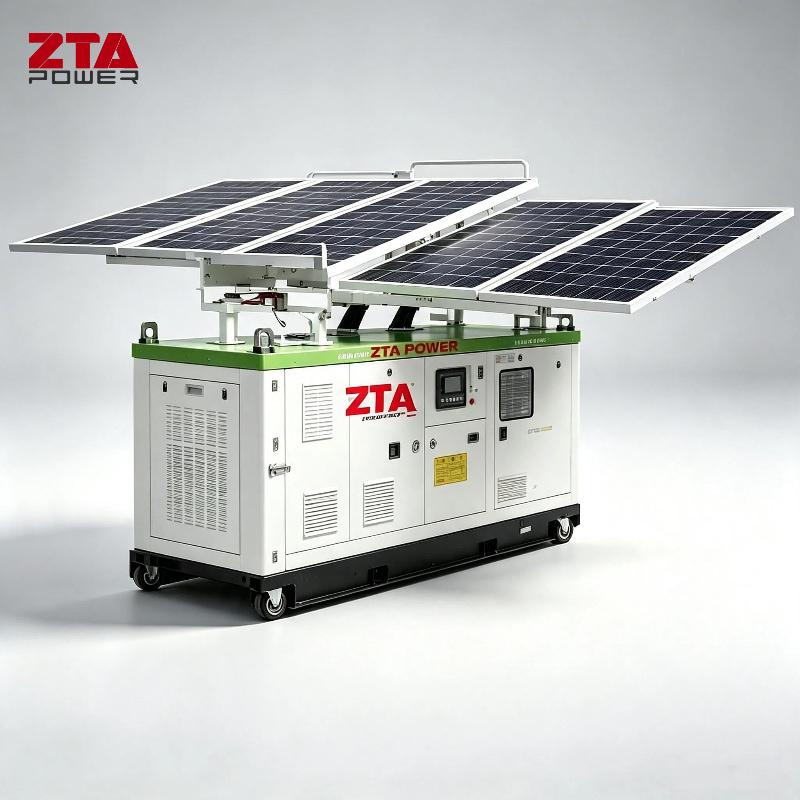

2Hybrid Power Station with Solar And Battery
GSB(Generator Set+ Solar Panal+Battery) is a new range of secure integrated hybrid power station.With diesel generator, solar power,battery storage and hybrid solar Inverter in one secure unit. GSB is mainly developed for residents Power,Reduce the dependence on Main Power and decrease the consumption cost.
Warranty
Battery Performance: 4000 cycles(80% DOD) or 2 years after manufacture;
Generator: 18 months after manufacture or 1500 hours running time;
General Specification
| System Rated Output Power | 30kW / kVA |
| Rated Output Voltage |
400V@50Hz / 480V@60Hz,3ph. (According to customer requirements) |
| Min.Battery Storage Capacity | 40 kWh |
| Max.Battery Storage Capacity | 60 kWh |
| Max.Solar Power | 2300W |
| Output Terminals | Copper terminals & CEE 50A/5P Socket |
| Expand Dimension(W*D*H) | 3650*5500*3350mm |
| Loading Dimension(W*D*H) | 3650*1150*2250mm |
| Net.Weight | 3400kg |
| Loading Capacity | 20ft 2units, 40HQ 6units |
| Discharge Temperature Range | -20℃~50℃ |
| Generator Set Specs | |
| Prime Power | 10kVA~30kVA |
| Engine to Ref. | YANMAR / PERKINS / KUBOTA |
| Fuel Tank Capacity | 100 L |
| Solar Panel | |
| Maximum Power | 460W |
| Qty. | 5pcs |
| Energy Storage Battery | |
| Cell Type | LFP(LiFePO4) |
| Pack Model | MF51100 |
| Pack Capacity | 5.12 kWh |
| Rated Cycle Life | ≥4000（80% DOD） |
| Hybrid Inverter System | |
| Solar Controller | MPPT*2 |
| AC Voltage Range | 380~415Vac@50HZ / 480V@60HZ |
| Rated Output Power | 30kVA(0.8leading~0.8lagging) |
